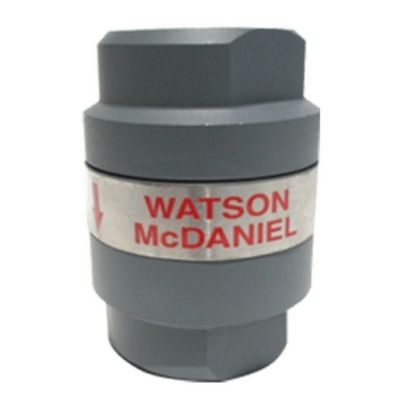

The Watson McDaniel WT1000 Thermostatic Steam Trap was specifically designed for drip and tracing applications as well as an air vent for heat exchangers. Like all thermostatic traps, the WT1000 is small, light, and has excellent air handling capabilities. The discharging of air on start-up allows steam to enter the system more quickly.
Applications: The Watson McDaniel Thermostatic Steam Traps are full open during startup, giving excellent venting and condensate removal characteristics. Freeze-proof design can be easily achieved by following the simple installation. Typical uses are: Steam Tracing | Drip Service | Sterillizers | Kettles | Heat Exchangers | Laundry Equipment | Unit Headers | Other Process Equipment
| Part # | Orifice Size | Steam Inlet Pressure PSI 5 | Steam Inlet Pressure PSI 10 | Steam Inlet Pressure PSI 20 | Steam Inlet Pressure PSI 50 | Steam Inlet Pressure PSI 100 | Steam Inlet Pressure PSI 125 | Steam Inlet Pressure PSI 150 | Steam Inlet Pressure PSI 200 | Steam Inlet Pressure PSI 250 | Steam Inlet Pressure PSI 300 | Steam Inlet Pressure PSI 350 | Steam Inlet Pressure PSI 400 | Steam Inlet Pressure PSI 450 | Steam Inlet Pressure PSI 500 | Steam Inlet Pressure PSI 600 | Steam Inlet Pressure PSI 650 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WT1000 | 441 | 625 | 882 | 1391 | 1827 | 1969 | 2095 | 2305 | 2483 | 2636 | 2777 | 2903 | 3019 | 3129 | 3323 | 3413 | Add to RFQ | |
| WT2103c | 5/16" | 903 | 1271 | 1811 | 2861 | 3754 | 4043 | 4300 | 4730 | 5093 | 5413 | 5702 | 5959 | 6195 | 6421 | 6820 | 7004 | Add to RFQ |
| Connection | Model | Max Oper. Press. PSI | |
|---|---|---|---|
| 1/2" NPT | WT1000 | 300 | Add to RFQ |
| 3/4" NPT | WT1000 | 300 | Add to RFQ |
