Heavy Cast Iron pump housing and brackets assures rigidity and long life. The New SterlSeal features the ultimate in ceramic technology for exceptional long life.
The Sterlco® G-Series Centrifugal Pump is designed so that the motor shaft will not be exposed to water. Provisions for a seal flush or vent is provided. The pump is closed coupled to a 3450-RPM, (open drip proof, totally enclosed or explosion proof.) The pump allows the motor and impeller to be removed without disturbing the piping connections. The SterlSeal runs on the bronze impeller hub, the motor shaft is literally outside of the pump. Consequently, the shaft is not exposed to corrosion by condensate. Rated for temperatures up to 250°F. 1/3, 1/2, 3/4 HP, 3/4 NPT Discharge, Stainless Steel Motor Shaft
All Sterling G Series pumps manufactured from 2022 and earlier use an impeller that will not fit the New G series pumps manufactured from 2023 and later. All Seal Kits fit both New & Old G Series pumps but if replacing the impeller on 2022 Prior units you will need to buy the new G series Pump & Motor less Volute
Get exactly the size gauge glass you need. No guessing. No mistakes. White Glove boxing and insurance is included in the price!
Use our proprietary one-step glass ordering system! ONLY at BoilerSupplies.com
Sterling Pump # Built 2022 & Earlier |
Replaced with New Part # 2023 Forward |
Motor HP Voltage & Phase |
Pump Capacity GPM |
Discharge Pressure PSI |
Capacity SQ FT E.D.R. |
Weight | Price | Qty | |
---|---|---|---|---|---|---|---|---|---|
695.00001.01 | 695.00015.08 |
1/3 HP - 1Ph 115/230 Volt |
3 6 9 12 |
20 20 20 |
2000 4000 6000 8000 |
40.00 | $989.00 | Add to Cart Add to RFQ | |
695.00001.03 | 695.00015.04 |
1/2 HP - 3Ph 230/460 Volt |
3 6 9 12 |
20 20 20 20 |
2000 4000 6000 8000 |
25.00 | $1,047.00 | Add to Cart Add to RFQ | |
695.00002.01 | 695.00025.08 |
1/2 HP - 1Ph 115/230 Volt |
15 22.5 |
20 20 |
10,000 15,000 |
25.00 | $1,101.00 | Add to Cart Add to RFQ | |
695.00002.03 | 695.00025.04 |
1/2 HP - 3Ph 230/460 Volt |
15 22.5 |
20 20 |
10,000 15,000 |
25.00 | $1,217.00 | Add to Cart Add to RFQ | |
695.00030.01 | 695.00035.08 |
3/4 HP - 1Ph 115/230 Volt |
30 37.5 |
20 20 |
20,000 25,000 |
25.00 | $1,179.00 | Add to Cart Add to RFQ | |
695.00030.03 | 695.00035.04 |
3/4 HP - 3Ph 230/460 Volt |
30 37.5 |
20 20 |
20,000 25,000 |
25.00 | $1,282.00 | Add to Cart Add to RFQ |
Get exactly the size gauge glass you need. No guessing. No mistakes. White Glove boxing and insurance is included in the price!
Use our proprietary one-step glass ordering system! ONLY at BoilerSupplies.com
Part # | Description | Price | Qty | |
---|---|---|---|---|

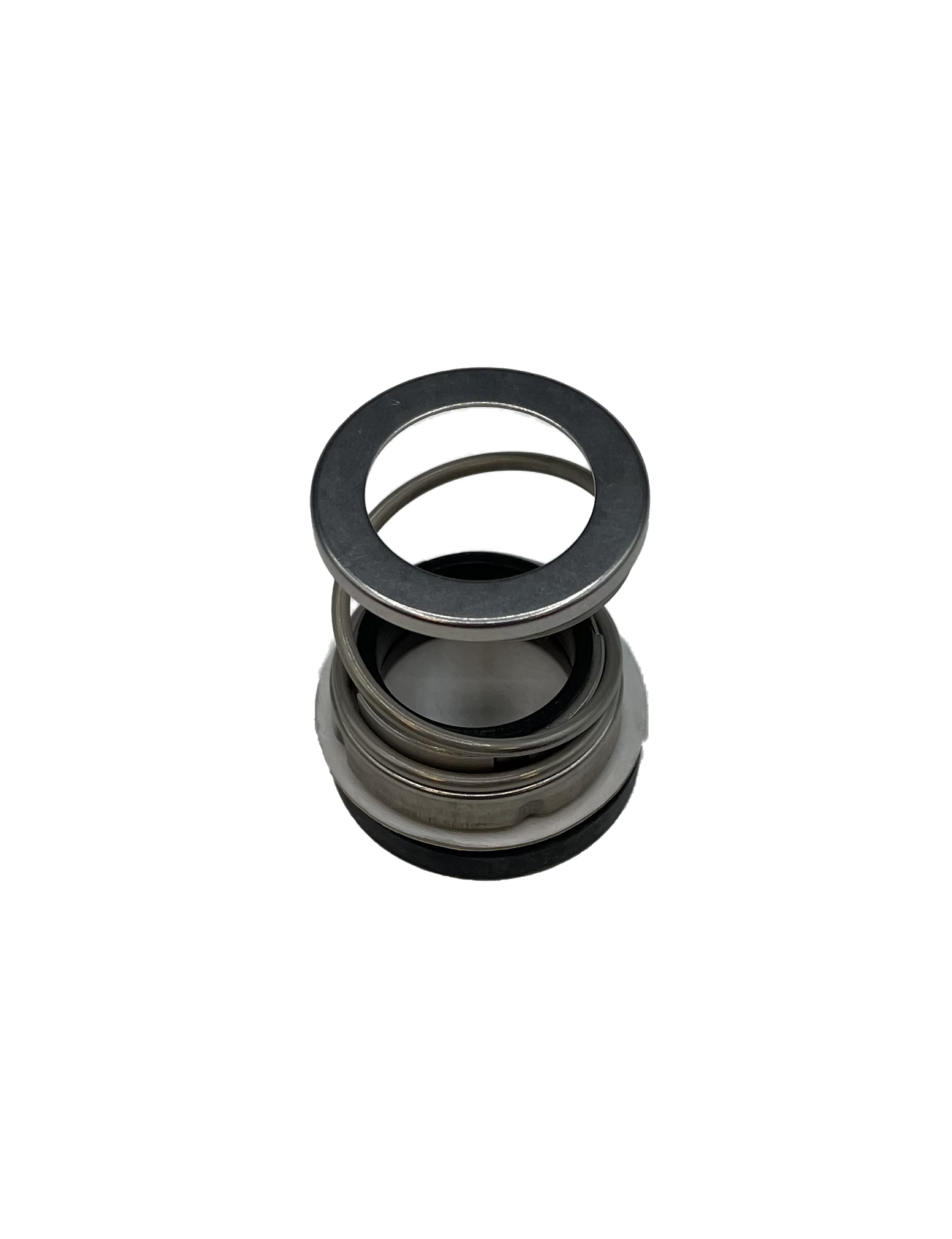

692.98444.00 | Seal Kit (includes a rotary seal, housing gasket, impeller nut & seal lubricant) | $198.50 | Add to Cart Add to RFQ |
Items to be returned must be approved by Power Plus International, and may be subjected to a restocking fee
Notice: Due to the uncontrollable metal costs, all prices and delivery times are subject to change on a daily basis.
