Boiler Feed Water Pumps & Condensate Pumps | Boiler Supplies Sterling Pumps Sterling 4100 G-Series Condensate Pump & Motor (With Volute)
Sterlco® Centrifugal G-Series Pumps are designed so the motor shaft will not be exposed to water. Provisions for seal flush or vent are provided. The pumps are closed coupled to a 3450 RPM motor (open drip-proof, totally enclosed, or explosion-proof).
Heavy Cast Iron pump housing and brackets assures rigidity and long life. The New SterlSeal features the ultimate in ceramic technology for exceptional long life.
The Sterlco® G-Series Centrifugal Pump is designed so that the motor shaft will not be exposed to water. Provisions for a seal flush or vent is provided. The pump is closed coupled to a 3450-RPM, (open drip proof, totally enclosed or explosion proof.) The pump allows the motor and impeller to be removed without disturbing the piping connections. The SterlSeal runs on the bronze impeller hub, the motor shaft is literally outside of the pump. Consequently, the shaft is not exposed to corrosion by condensate. Rated for temperatures up to 250°F.
| Part # |
Motor HP Voltage & Phase |
Pump Capacity GPM |
Discharge Pressure PSI |
Capacity SQ FT E.D.R. |
Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| 605.00003.01 |
1/3 HP - 1Ph 115/230 Volt |
3 6 9 12 |
20 20 20 |
2000 4000 6000 8000 |
25.00 | $1,209.00 | Add to Cart | |
| 605.00003.12 |
1/3 HP - 3Ph 230/460 Volt |
3 6 9 12 |
20 20 20 20 |
2000 4000 6000 8000 |
25.00 | $1,267.00 | Add to Cart | |
| 605.00005.01 |
1/2 HP - 1Ph 115/230 Volt |
15 22.5 |
20 20 |
10,000 15,000 |
25.00 | $1,321.00 | Add to Cart | |
| 605.00005.10 |
1/2 HP - 3Ph 230/460 Volt |
15 22.5 |
20 20 |
10,000 15,000 |
25.00 | $1,437.00 | Add to Cart | |
| 605.00111.02 |
3/4 HP - 1Ph 115/230 Volt |
30 37.5 |
20 20 |
20,000 25,000 |
25.00 | $1,399.00 | Add to Cart | |
| 605.00111.03 |
3/4 HP - 3Ph 230/460 Volt |
30 37.5 |
20 20 |
20,000 25,000 |
25.00 | $1,502.00 | Add to Cart |
| Part # | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|
| 692.98444.00 | Seal Kit (includes a rotary seal, housing gasket, impeller screw & seal lubricant) | 1.50 | $218.00 | Add to Cart |
| Part # |
Sterling "J" & "G" Series Seal Part # |
Weight | Price | Qty | |
|---|---|---|---|---|---|

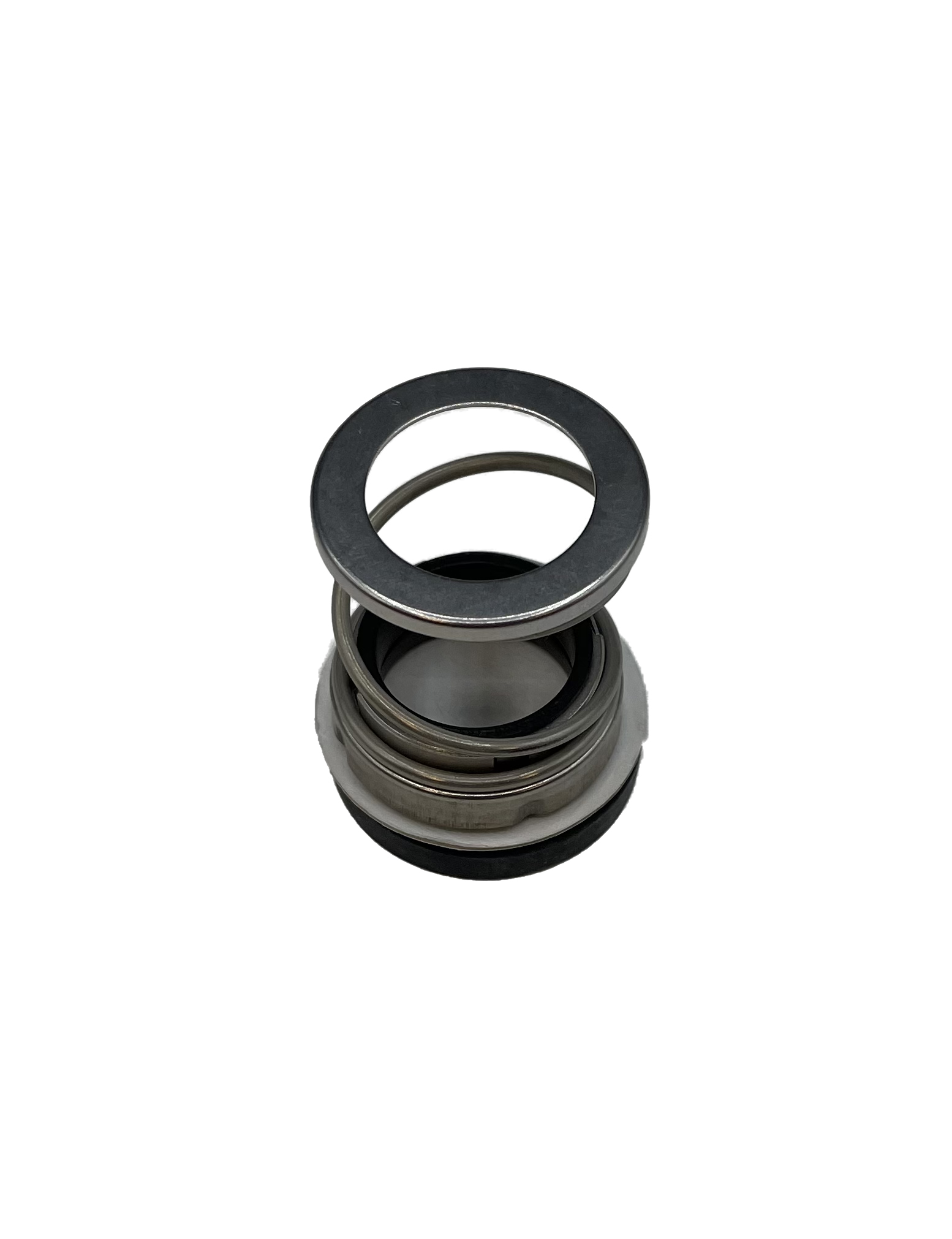

| 60813V | 081.00034.00 Rotary Seal Only 7/8" Shaft | 3.00 | $129.00 | Add to Cart |
Sterling Volute/Tank Gasket
544.0003.00
4-3/4" O.D. 3-9/32" I.D. 3/4" Flange
(Sold Individually)
| Part # | O.D. (Outside Diameter) | I.D. (Inside Diameter) | Flange | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|
| 544.0003.00 | 4-3/4" | 3-9/32" | 3/4" | 0.25 | $29.95 | Add to Cart |
