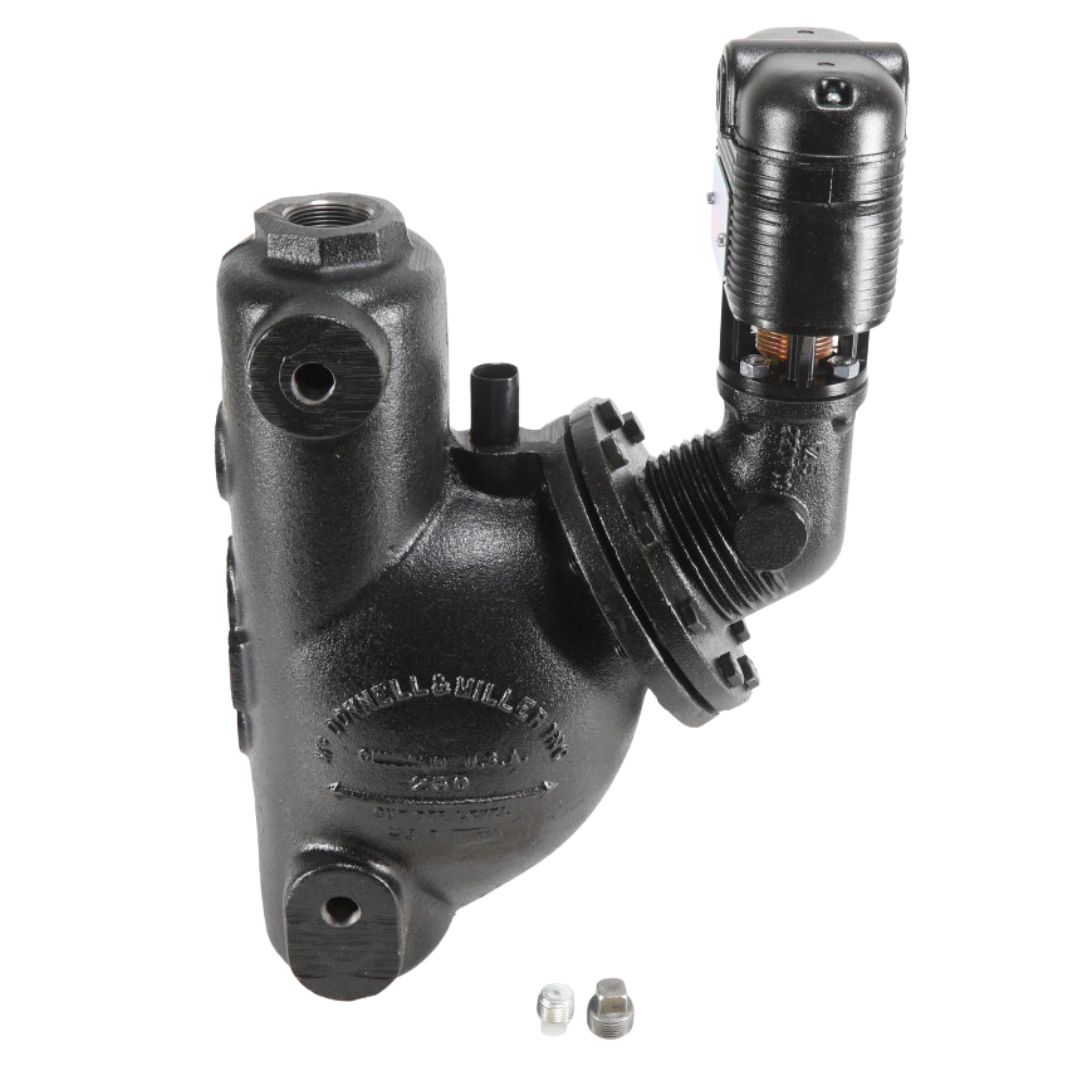

McDonnell Miller Series 194 In Stock

Manufacturer:
McDonnell Miller
Description:

McDonnell Miller Series 194 Low Water Cut-Off /Pump Controllers

Features and Benefits

  • For commercial and industrial low or high pressure steam boilers
  • Maintains consistent water level regardless of pressure
  • Water column with integral tappings for gauge glass and tri-cock installations
  • For boilers of any steaming capacity
  • No. 5 Switch included
  • Magnetic repulsion eliminates need for bellows
  • Optional features
    • – Manual reset
    • 7B switch (135ohm proportional control
    • signal) to maintain constant boiler water
    • level
    • 1″ NPT connections
  • Maximum pressure 150 psi (10.5 kg/cm2)

10 Bolt Hole Pattern For steam and hot water boiler with cold water feed.

Item Name: McDonnell Miller Series 194
Short description: McDonnell Miller Series 194
Lead Time: Most items In Stock ready to ship!
Replacement Heads
Model# Part# Description Weight Price Qty
94-HD 165300 Head Mechanism w/ No.5 Switch 22.00 $1,155.00 Add to Cart
94-M-HD 166000 94-HD w/ manual reset 23.00 $1,155.00 Add to Cart
Ordering Information
Model# Part# Description Weight Price Qty
194 166600 Low water cut-off / pump controller/ No. 5 switch 75.00 $1,398.61 Add to Cart
194-A 166700 194 w/ alternate tappings 75.00 $1,398.61 Add to Cart
194-A-7B 167100 194-A w/ No. 7B switch 75.00 $1,873.21 Add to Cart
194-M 166900 194 w/ manual reset 75.00 $1,398.61 Add to Cart
194-7B 167200 194 w/ No. 7B switch 75.00 $1,873.21 Add to Cart
194-7BM 167300 194-7B w/ manual reset 75.00 $1,898.40 Add to Cart
194-B 166701 194 w/ alternate tappings 75.00 $1,415.41 Add to Cart
Replacement Parts
Model# Part# Description Weight Price Qty
SA91-60 345700 Float 3.00 $176.41 Add to Cart
92-68 323300 Gasket (6 pack) 3.00 $42.11 Add to Cart
5 110300 Electric switch 6.00 $558.61 Add to Cart
5-M 110400 No. 5 switch w/ manual reset 6.00 $558.61 Add to Cart
7B 110800 Electric switch/proportioning control 6.00 $970.20 Add to Cart
7B-M 110900 No. 7b w/ manual reset 6.00 $970.20 Add to Cart
Dimensions
Model A B C D E F G H J K L M N P Q R S T U V W X Y
194 1 1/4 1/2 1/2 1/2 1/2 1/2 - - 1/2 3/4 - 11 5/8 6 3/4 13 1/16 2 13/16 1 1/4 2 3/8 17 1/4 20.5 3 3 6 10 13/16
194-A 1 1/4 1/2 1/2 1/2 - - 1/2 1/2 1/2 3/4 12 7/8 - 6 3/4 13 1/16 2 13/16 1 1/4 2 3/8 17 1/4 20.5 3 3 6 10 13/16
194-B 1 1/4 3/4 3/4 3/4 - - 3/4 3/4 1/2 3/4 12 7/8 - 6 3/4 13 1/16 2 13/16 1 1/4 2 3/8 17 1/4 20.5 3 3 6 10 13/16
Electrical Ratings
Pilot duty
345 VA at 120 or 240 VAC
