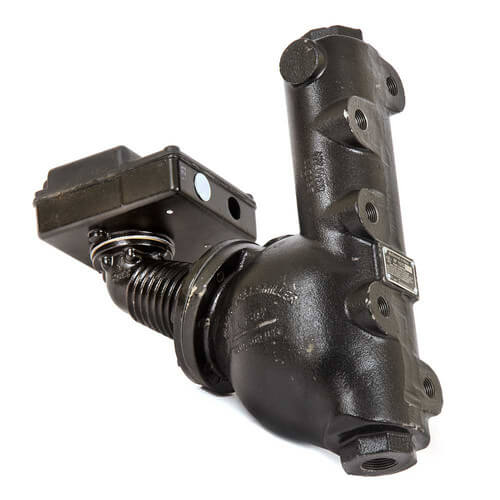

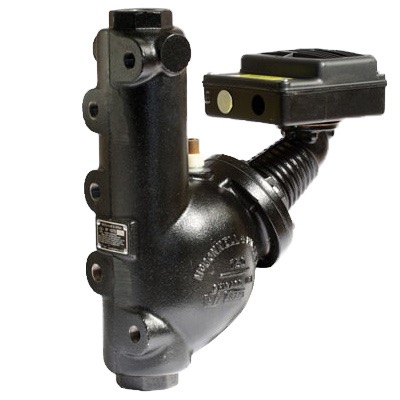

McDonnell Miller Series 157S In Stock

Manufacturer:
McDonnell Miller
Description:

McDonnell Miller Series 157S Low Water Cut-Off

Features and Benefits

  • For commercial and industrial low or high pressure boiler applications
  • For boilers of any steaming capacity
  • Monel bellows provides corrosion resistance
  • Snap action switches for high temperature service
    • 1 Single pole, single throw switch for pump control
    • 1 Single pole, double throw switch for low water
  • Cut-off and alarm actuation

Optional Features

  • Manual reset
  • 2 Single pole, single throw switches
  • 2 Single pole, double throw switches
  • Float block
  • BSPT threads
  • Maximum pressure 150 psi (10.5 kg/cm2)
  • Model 150S-MD Maximum differential operation – Prevents nuisance burner shutdowns in low pressure applications



Item Name: McDonnell Miller Series 157S
Short description: McDonnell Miller Series 157S
Description:

Lead Time: Most items In Stock ready to ship!
Replacement Heads
Model# Part# Description Weight Price Qty

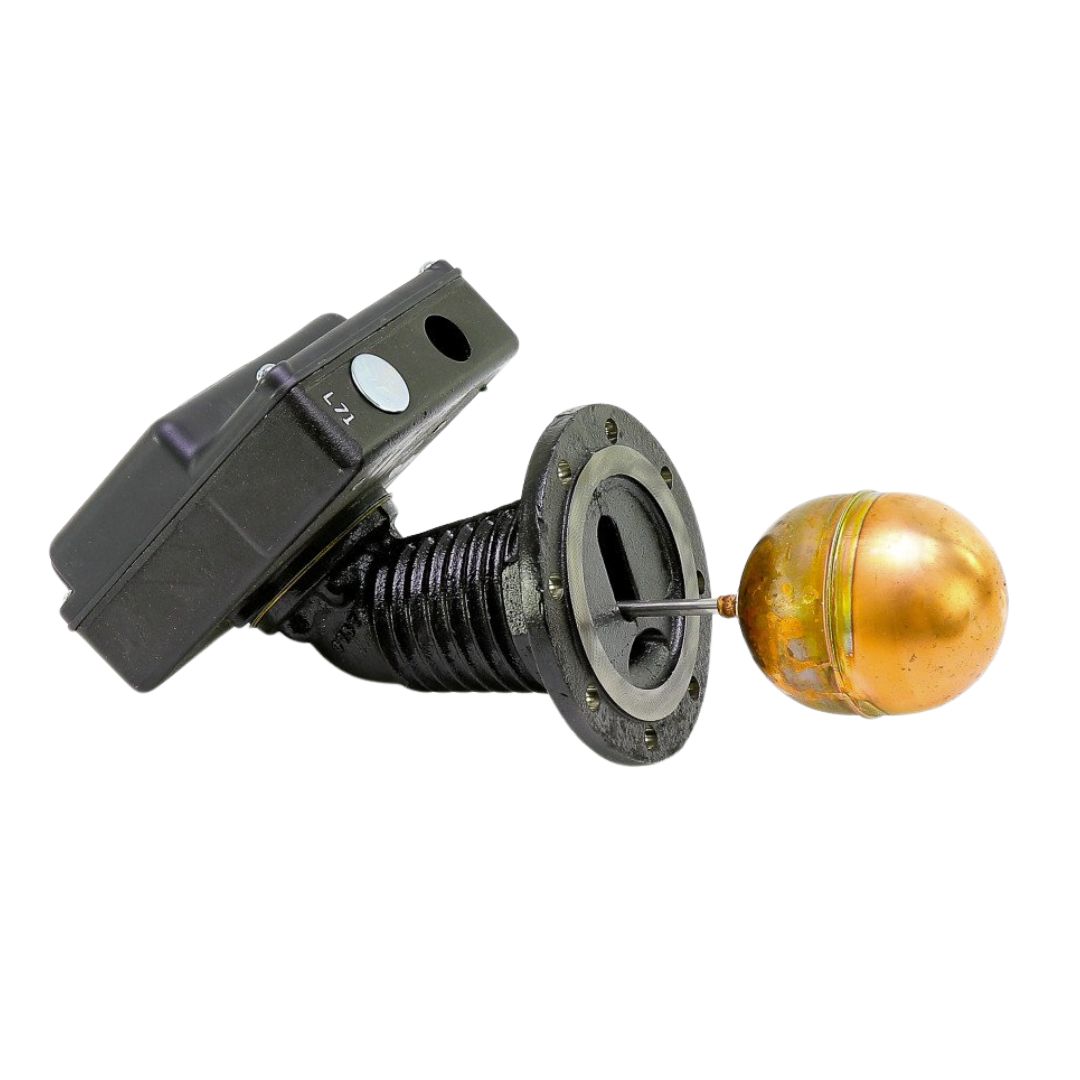

150S-HD 173003 Head Mechanism w/ snap switch 13.00 $584.55 Add to Cart
150S-M-HD 173203 150S-HD w/ manual reset 13.00 $584.55 Add to Cart

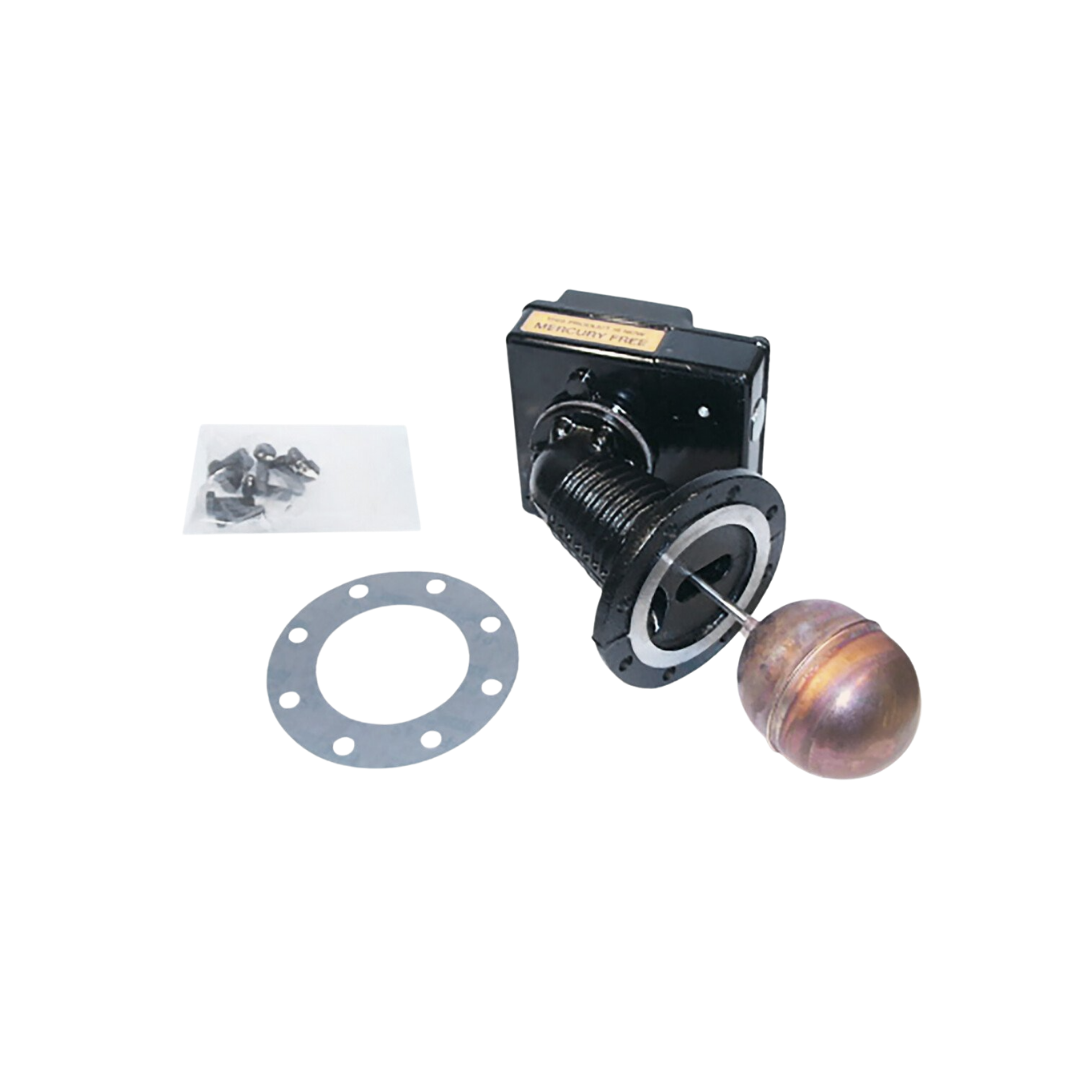

150S-MD-HD 173103 150s Maximum Differential 13.00 $584.55 Add to Cart

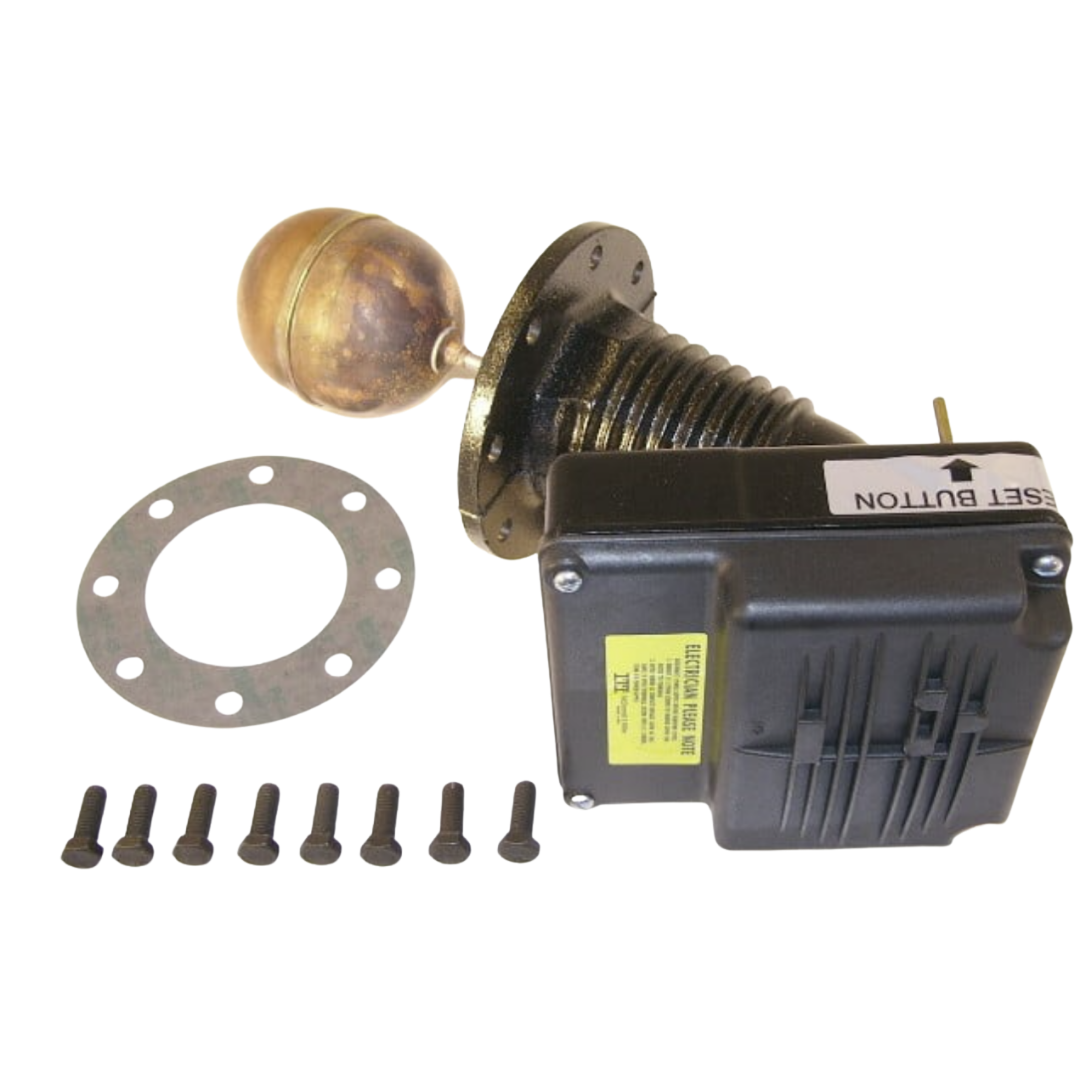

150S-M-MD-HD 173302 150S w/ manual reset & Max diff.
$Call
13.00
Ordering Information
Model# Part# Description Weight Price Qty

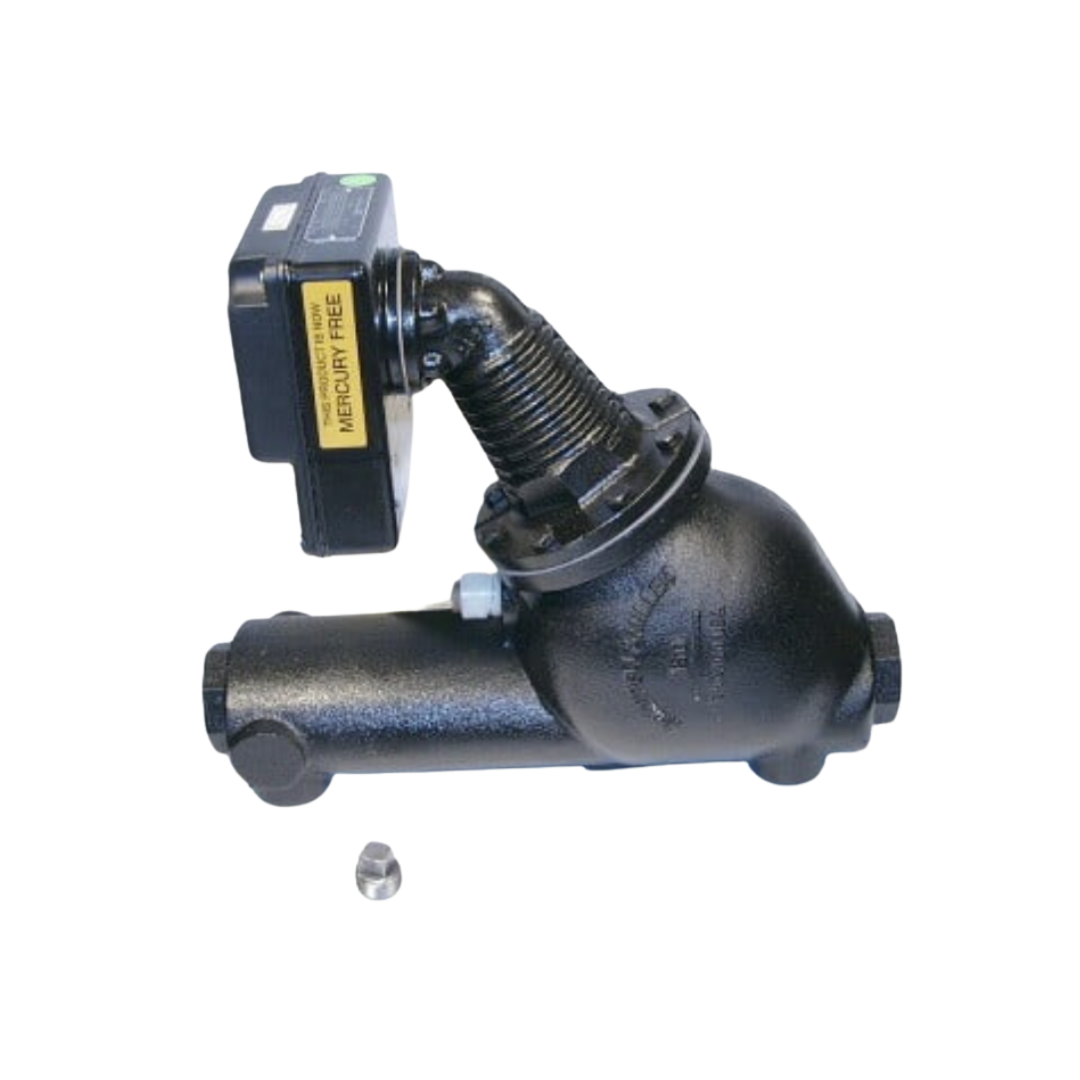

157S 173502 150 Low water cut-off w/ water column 43.00 $840.05 Add to Cart
157S-MD 173603 157 w/ maximum differential 43.00 $840.05 Add to Cart

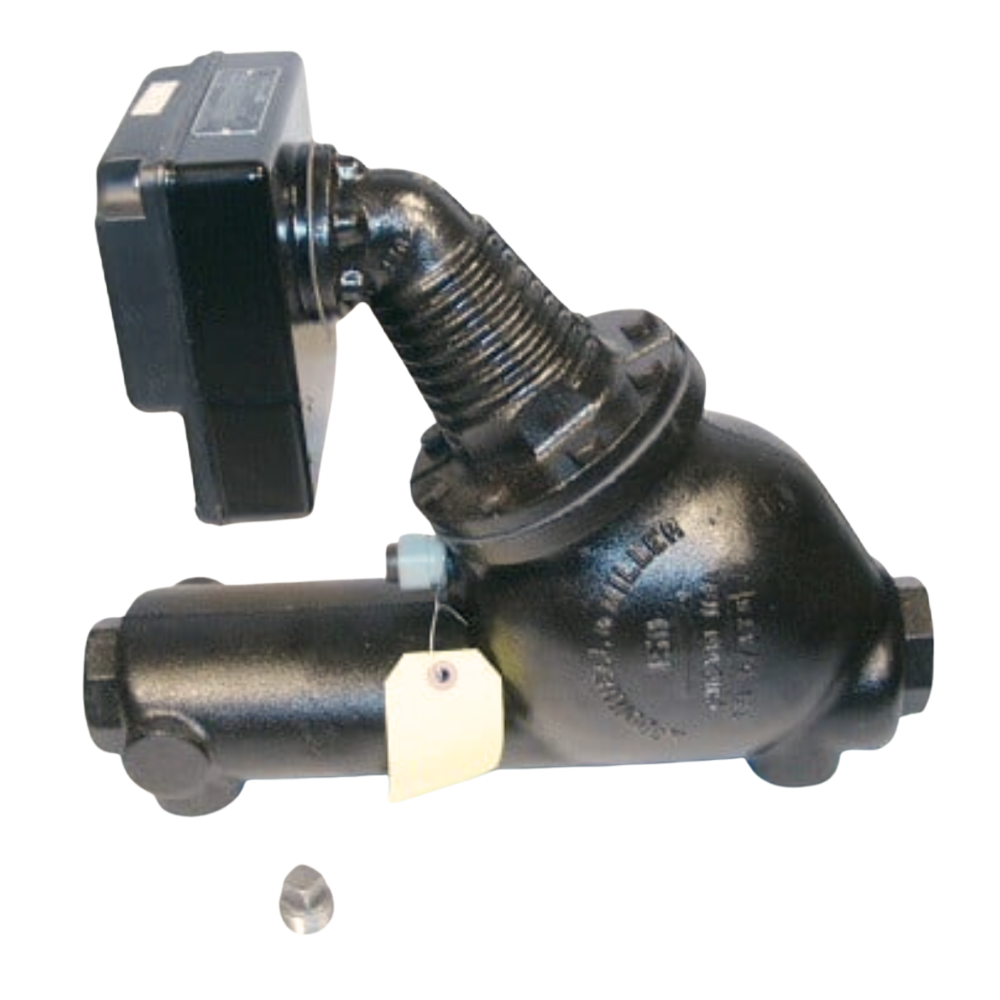

157S-A 173702 157 w/ alternate tapping
$Call
43.00
157S-A-M 173802 157-A w/ manual reset 43.00 $840.05 Add to Cart
157S-M 175402 157 w/ manual reset 43.00 $840.05 Add to Cart
157S-M-MD 175412 157-M w/ maximum differential
$Call
43.00

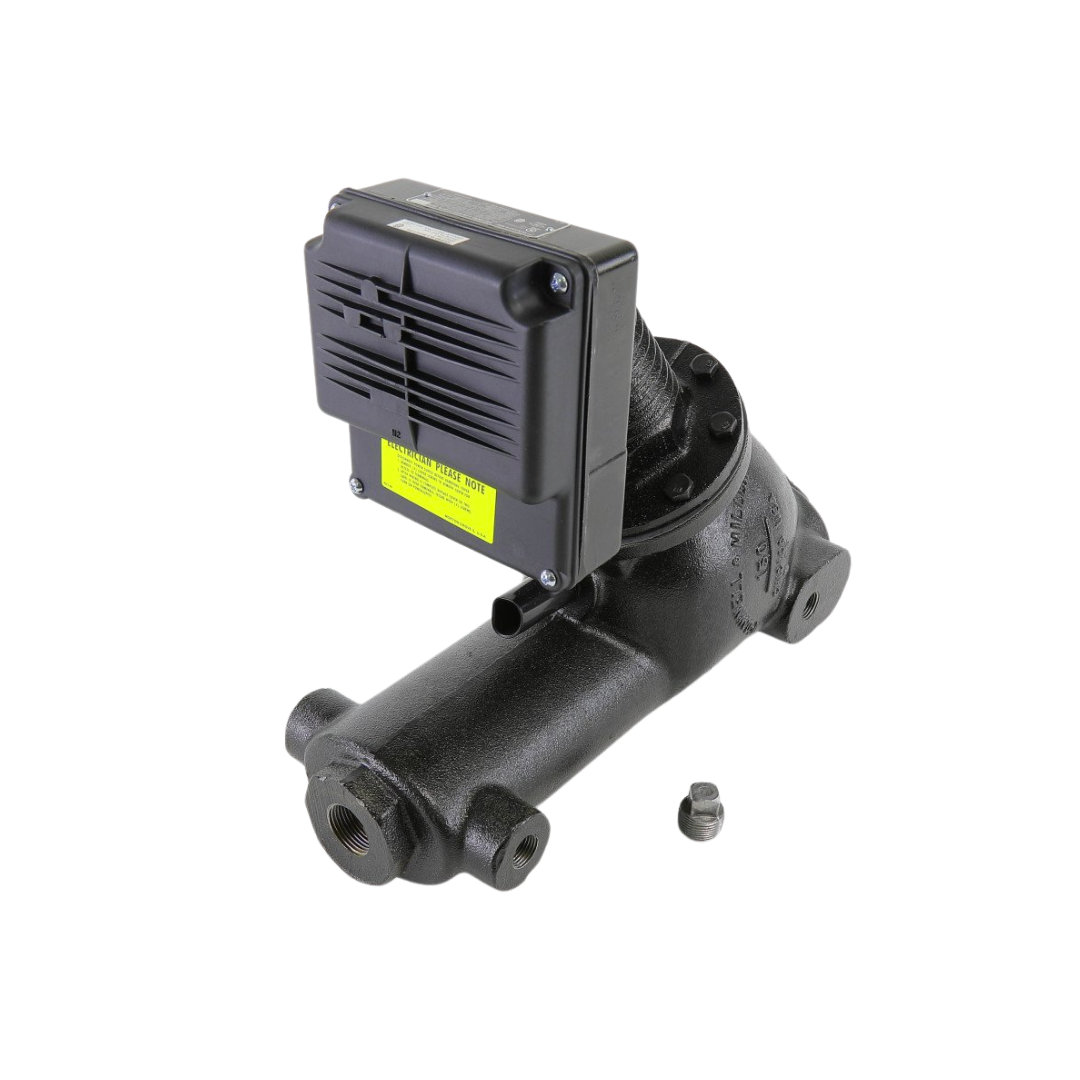

157S-R 176220 157 w/ alternate tapping 45.00 $956.95 Add to Cart

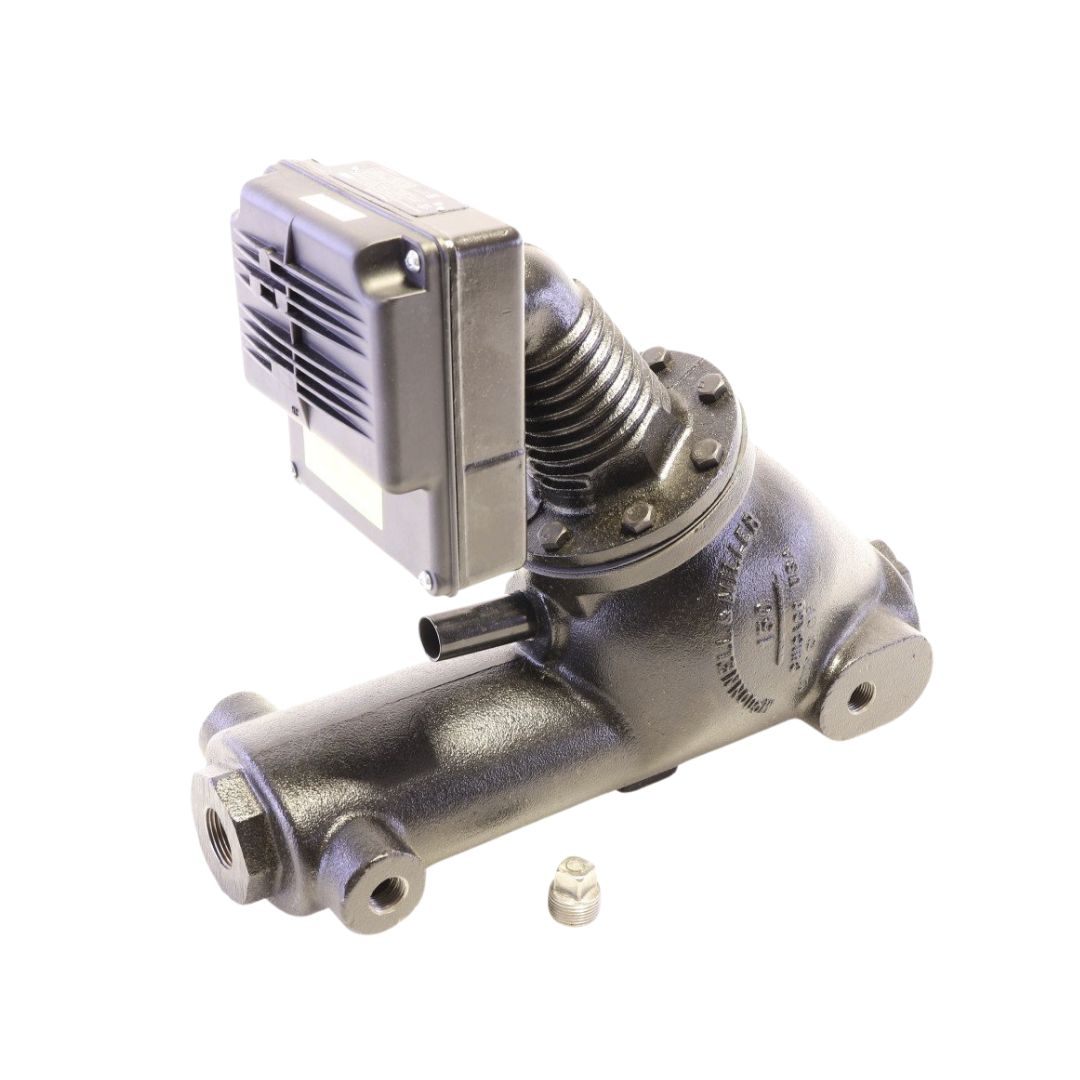

157S-R-M 177306 157-R w/ manual reset 45.00 $952.60 Add to Cart

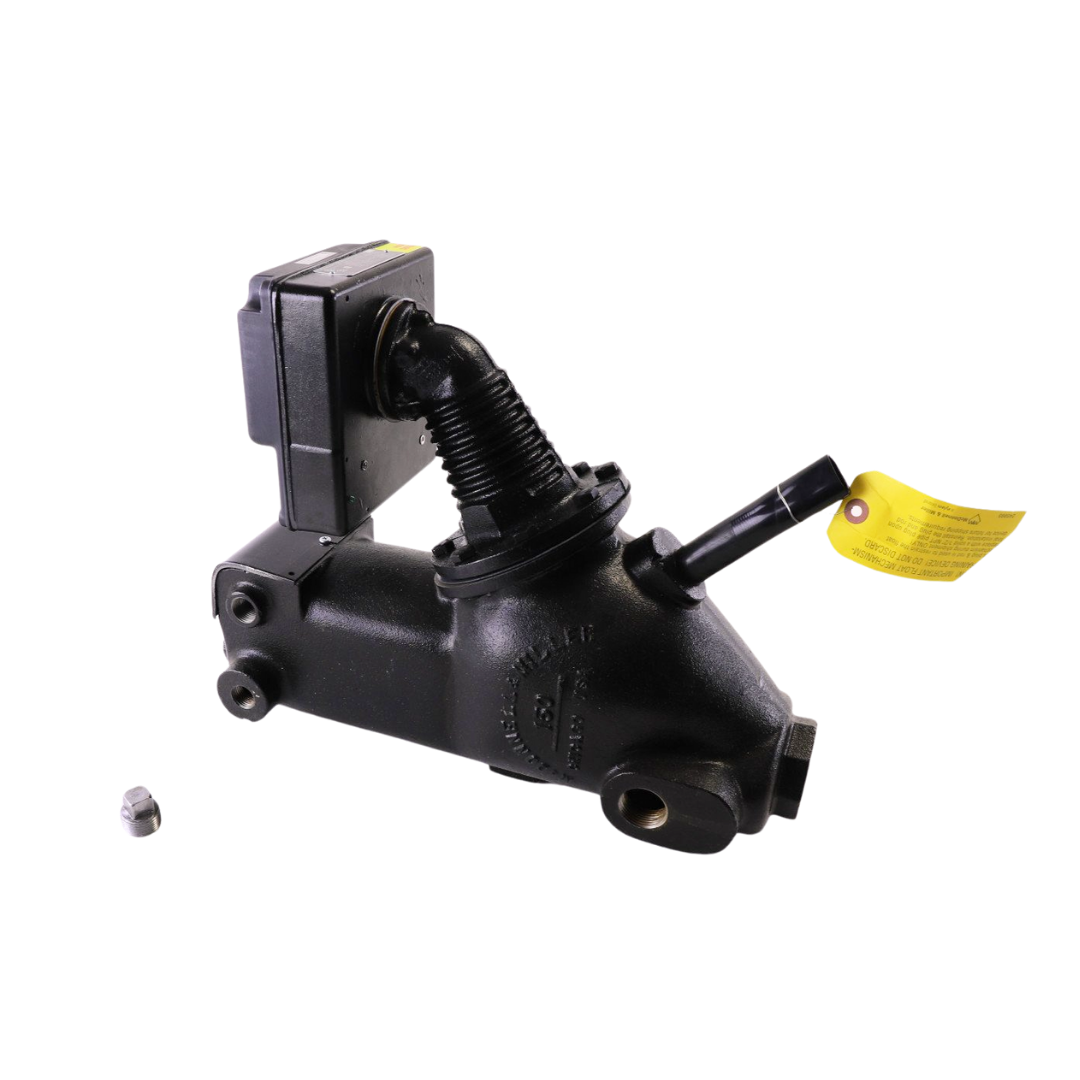

157S-RBP-MD 176503 157 w/ 2 integral conductance probes 54.00 $1,567.50 Add to Cart

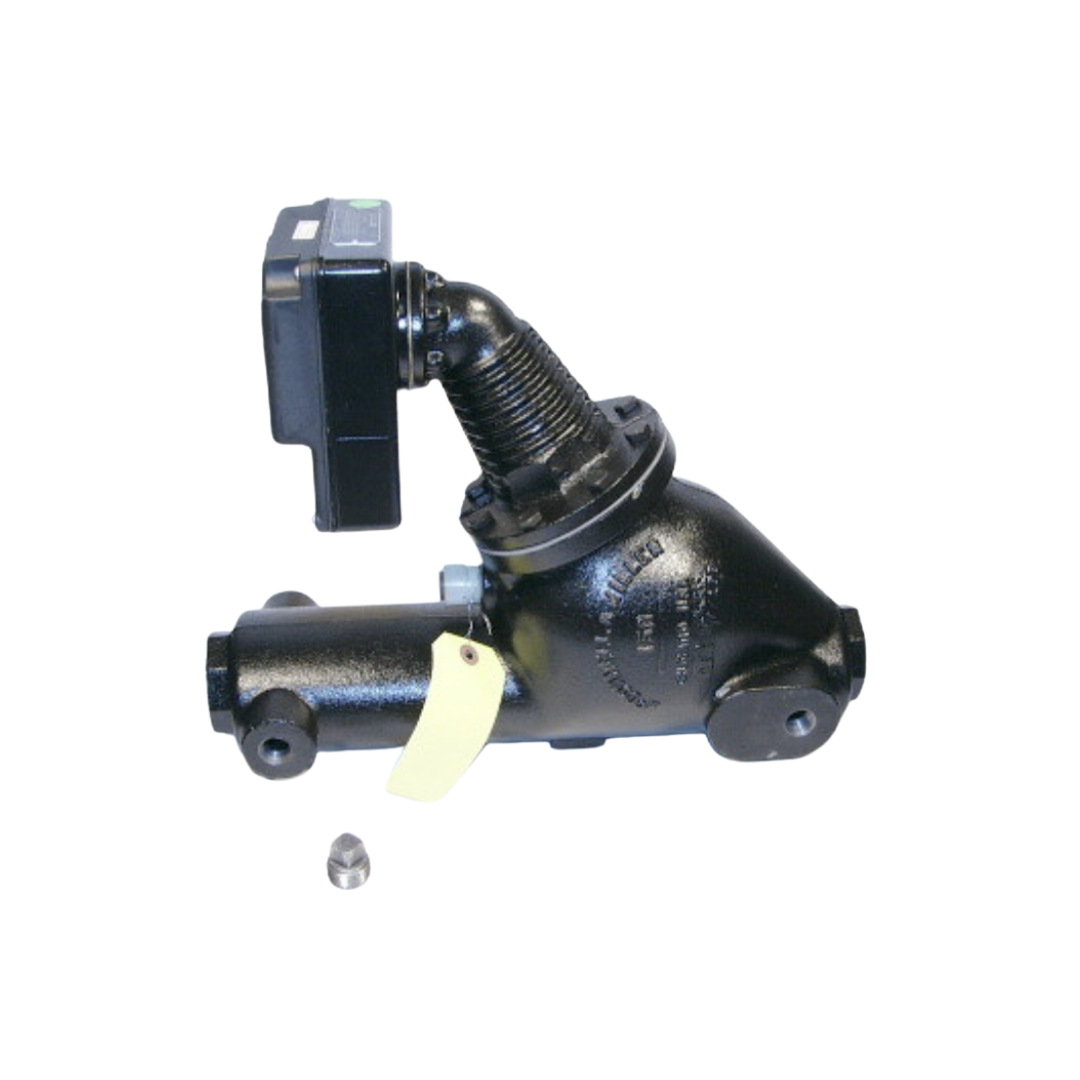

157S-RL 176902 157 w/ alternate tapping 45.00 $952.60 Add to Cart

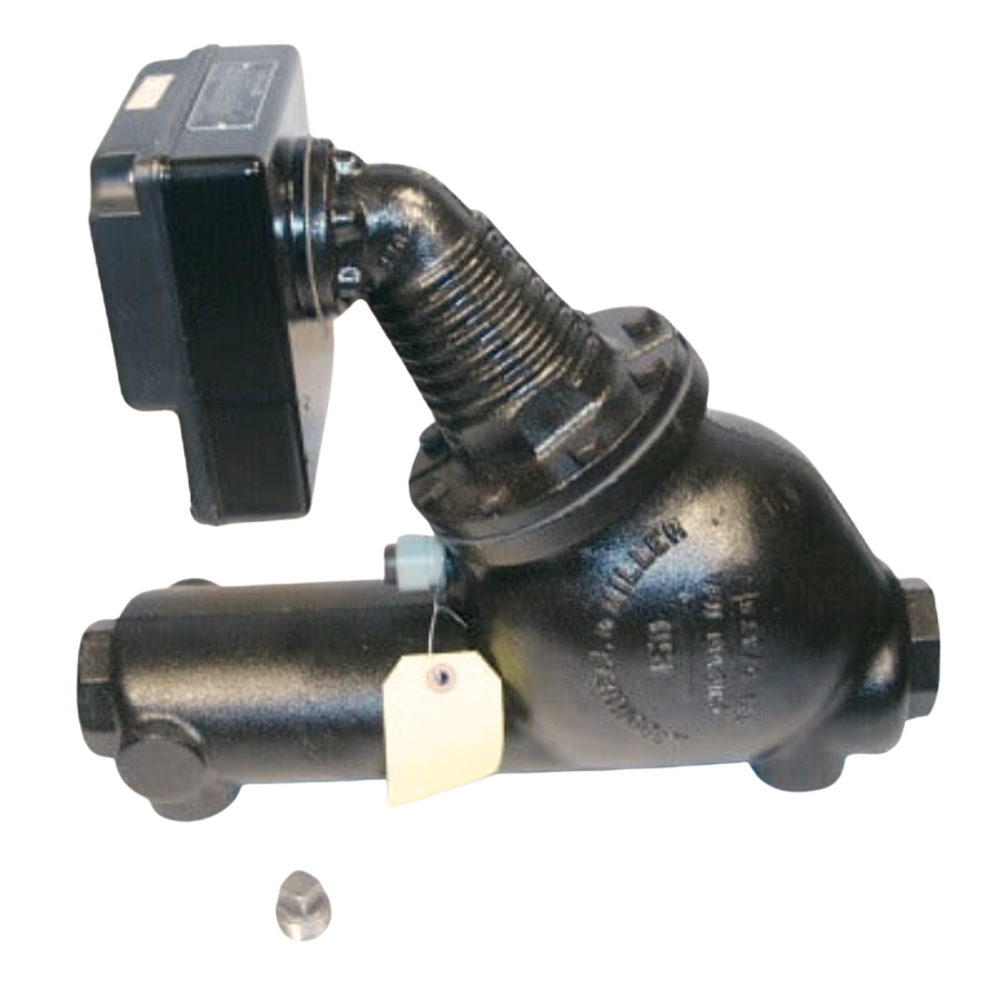

157S-RL-M 177006 157-RL w/ manual reset 45.00 $952.60 Add to Cart
Replacement Parts
Model# Part# Description Weight Price Qty
SA150-106R 347900 Bellows Assembly 3.00 $168.90 Add to Cart
SA150-11 347600 Float and Rod 3.00 $177.50 Add to Cart
150-14H 325500 Head gasket (for raised face head flange, 8 holes), 6 pack 3.00 $40.00 Add to Cart
EA-157-S 354106 Short electrode for 157-RBP 3.00 $151.55 Add to Cart
EA-157-L 354107 Long electrode for 157-RBP 3.00 $151.55 Add to Cart
PCH-G-A-2 179150 Probe level control (OBSOLETE - NO REPLACEMENT ) 5.00
SA150-436 326950 Cover 3.00 $55.50 Add to Cart
Dimensions
Model A B C D E F G H J K L
157 1 1/2 13 3/8 2 5/16 4 15/16 11 3/4 16 11.5 3.5 3/4 5 7/8
157S-A 1 1/4 3/4 13 3/8 2 5/16 4 15/16 11 3/4 16 11.5 3.5 3/4 5 7/8
157S-R 1 1/2 13 3/8 2 1/4 5 7/8 11 3/4 17 11.5 3.5 3/4 5 7/8
157S-RL 1 1/4 1/2 13 9/16 3 1/2 5 7/8 11 3/4 17 12.75 3.5 3/4 5 7/8
157S-RBP-MD 1 1/2 13 9/16 3 1/2 5 7/8 11 3/4 17 11.5 3.5 12 1/4
Electrical Ratings
Voltage Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor Pilot duty
120 VAC 7.4 44.4 125 VA at 120 or 240 VAC
240 VAC 3.7 22.2 125 VA at 120 or 240 VAC
