ITT Hoffman Series H Steam Traps In Stock

Item Name: ITT Hoffman Series H
Manufacturer:
ITT Hoffman
Description:

The Hoffman Specialty F & T traps Series H are recommended for modulating steam pressure where widely varying loads are present, and pressures vary from maximum to vacuum.

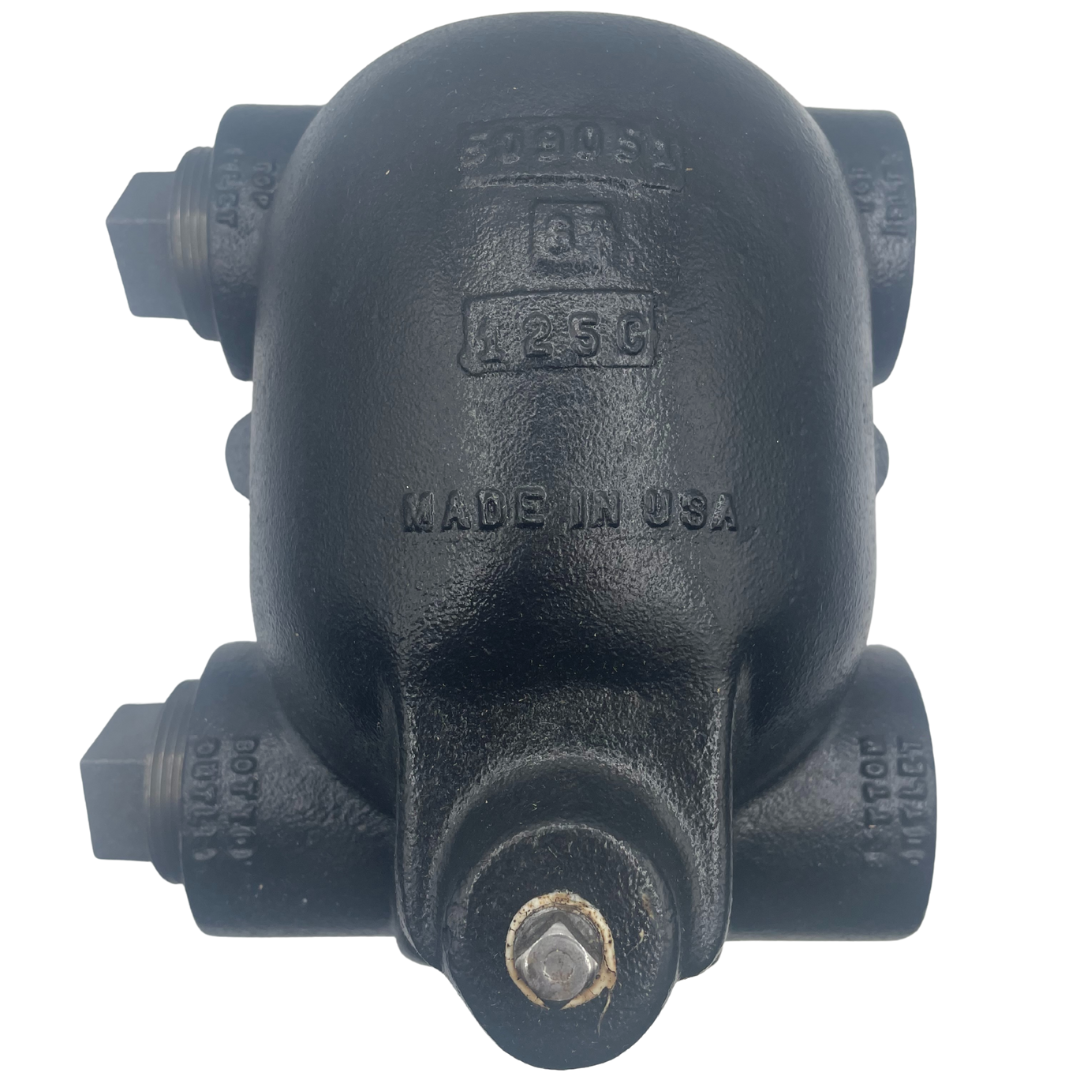

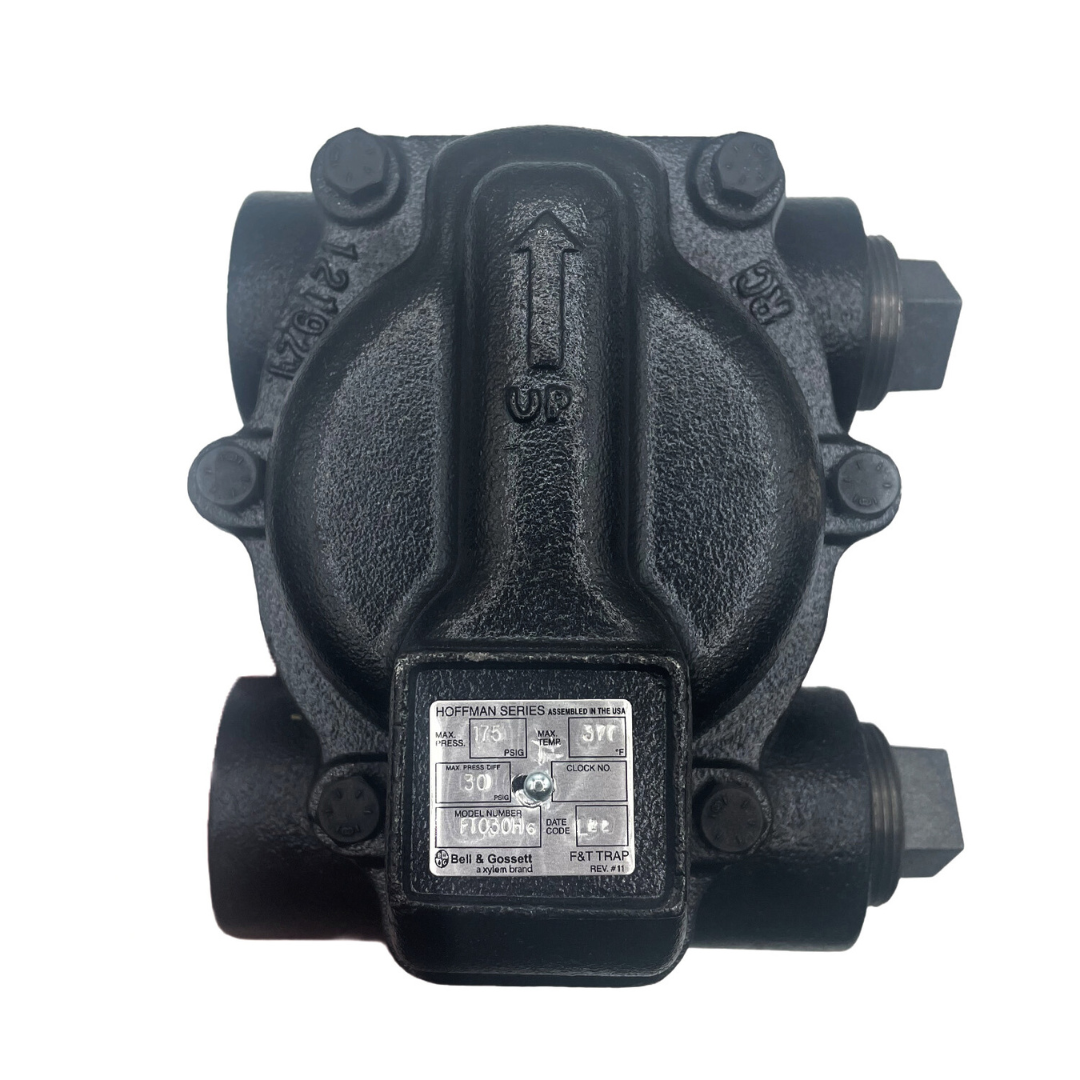

The Hoffman Series H Float & Thermostatic trap has inlets and outlets on both sides of the steam trap, this allows for more flexibility when piping-in the steam trap. Simply insert a pipe plug into the inlet / outlet that you will not be using.



The Hoffman F&T traps are available in steam operating pressures at 15, 30, 75, 125 and 175 psi. The 1-1/2" FTO15H has a inlet to outlet width of 6-3/8" for in and out opposite side, or, same side inlet to outlet center-to-center dimension of 5-1/4", a height of 7-11/16" and a weight of 20lbs.



ITT Hoffman Series H Models 3/4" - 2" feature Universal 4 - port tappings, (2 inlets, 2 outlets) that provide versatility to allow easy piping and system monitoring. Sizes Available: 3/4" NPT, 1" NPT, 1 1/4" NPT, 1 1/2" NPT, 2" NPT. Resistant to water hammer and corrosion. Below condensate level seat design prevents steam leakage. Rugged thermostatic element eliminates air binding. Maximum body design pressure: 250 psig 3/4" - 1 1/4", 170 psig 1 1/2" - 2". Maximum operating pressure: 175 psig 3/4" - 2". Maximum temperature: 406°F (208°C) 3/4" - 1 1/4", 377°F (192°C) 1 1/2" - 2"

Shipping Time: 1-3 Business Day
Ordering Information
Part # Model # Connection Size
NPT
Seat Differential
Pressure Rating psi
Wt, lbs.
404200 FT015H 3/4" 15 11.7 Add to RFQ
404210 FT015H 1" 15 11.7 Add to RFQ
404220 FT015H 1-1/4" 15 11.7 Add to RFQ
401626 FT015H 1-1/2" 15 22 Add to RFQ
401629 FT015H 2" 15 38 Add to RFQ
404202 FT030H 3/4" 30 11.7 Add to RFQ
404212 FT030H 1" 30 11.7 Add to RFQ
404222 FT030H 1-1/4" 30 11.7 Add to RFQ
401638 FT030H 1-1/2" 30 22 Add to RFQ
404204 FT075H 3/4" 75 11.7 Add to RFQ
404214 FT075H 1" 75 11.7 Add to RFQ
404206 FT125H 3/4" 125 11.7 Add to RFQ
404216 FT125H 1" 125 11.7 Add to RFQ
404208 FT175H 3/4" 175 11.7 Add to RFQ
404218 FT175H 1" 175 11.7 Add to RFQ
