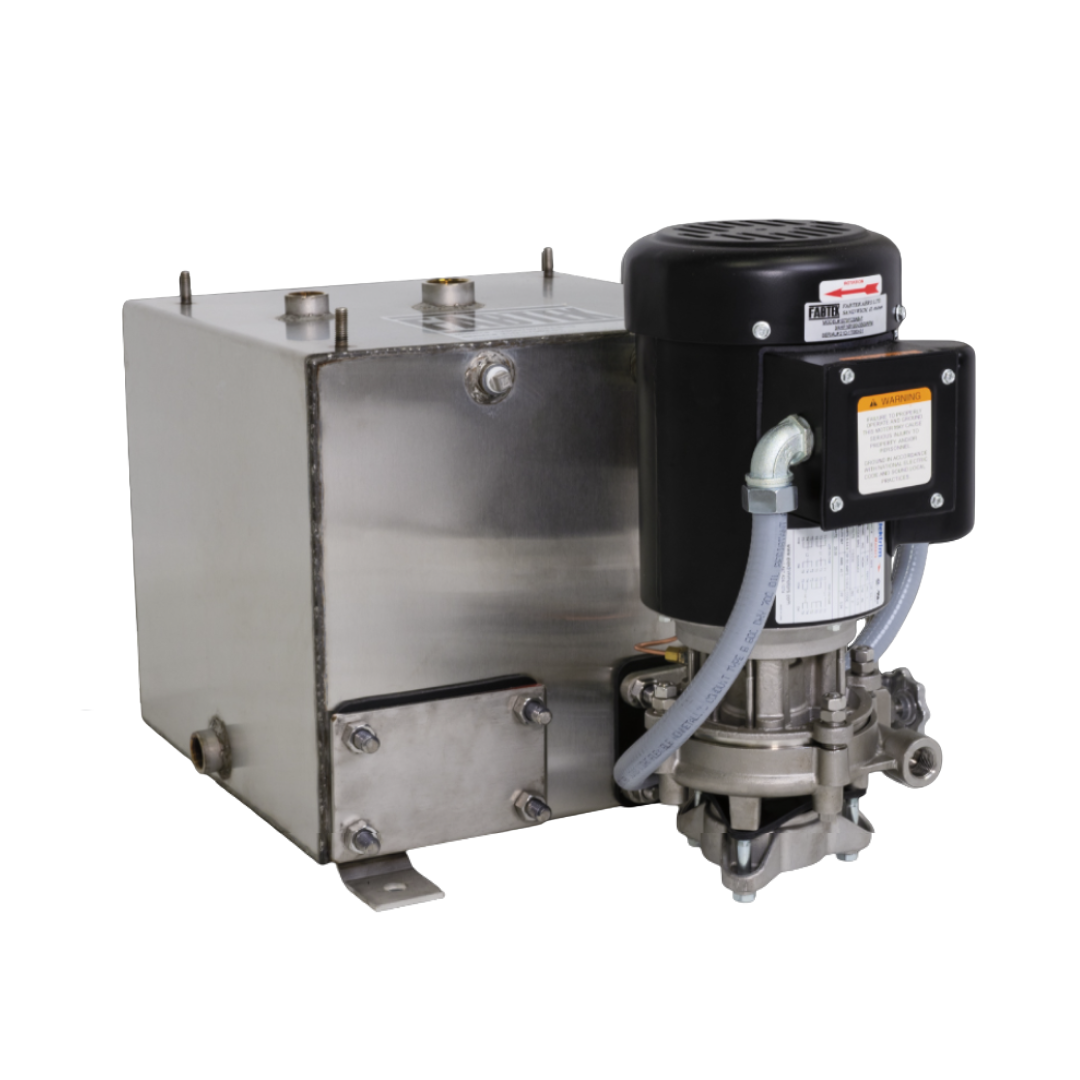

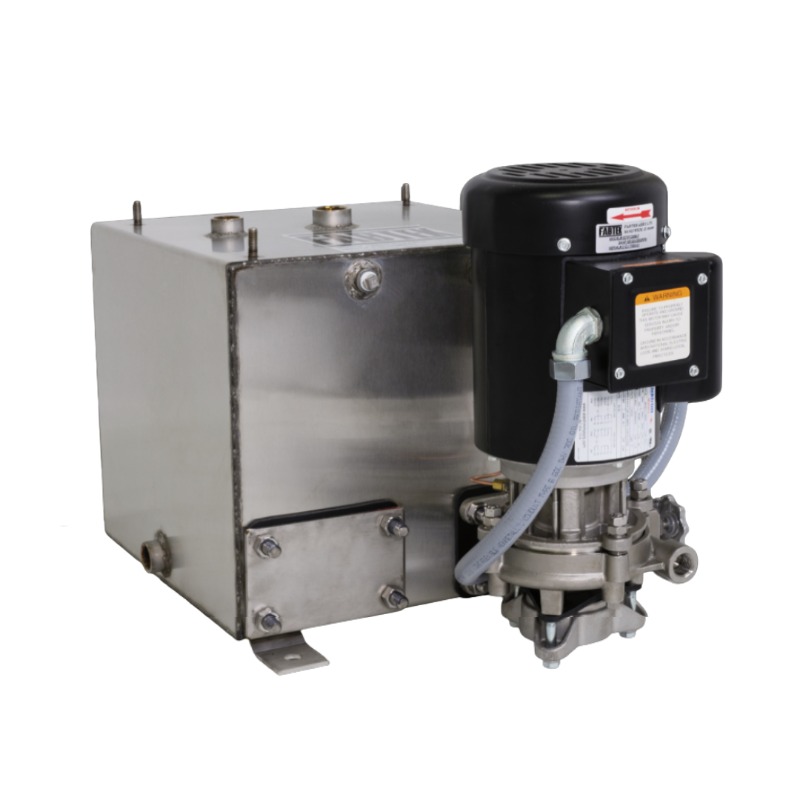

Fabtek Condensate 304 Stainless Steel 10 Gallon Tank Return Unit In Stock

The Fabtek Stealth Series Model SS10S Simplex Stainless Steel Condensate Unit include a NEMA 1 Float Switch (Simplex)

Great for Small Brewhouse Brewing and Restaurants.Compact Self Contained 304SS Unit.


Stainless Steel Condensate Return Unit

  • 304 Stainless Steel Receivers with 20 Year Warranty due to corrosion
  • 1/3 HP Vertical Flange mounted Stainless Steel centrifugal pumps
  • Nema 1 Float Switch ( Simplex )
  • Floor Mounted units are rated for 200º F condensate and up to 210ºF


Optional Equipment you can order with the Units:

Brass or Stainless Sight Gauge Assembly, Thermometer, Throttling Valve (Globe), Stainless Steel Isolation Valve



Item Name: Fabtek Stainless Steel 10 Gallon Condensate Unit
Shipping Time: 1-3 Business Day
Part # Type Receiver Size Capacity (EDR), ft² Motor Power Pump Capacity Inlet (in inches) Weight Price
Model SS10-S Simplex 10 Gallon 6000 EDR
9000 EDR
12000 EDR
1/3 HP 6 GPM @ 20 psig
9 GPM @ 20 psig
12 GPM @ 20 psig
2" 125.00 $2,261.20 Add to RFQ
