Everlasting Slow Opening Valves 300 lb. In Stock

Manufacturer:
Everlasting
Description:

CLICK ON LINK BELOW FOR MORE EVERLASTING VALVES!







The 4060 & 6561 Series valves are ISO 9001 Certified handwheel Operated Blowdown Valve that has a Straight-through flow design freaturing leak proof seal and disc that has self lapping & self wiping action that will not hang up on Boiler scale.

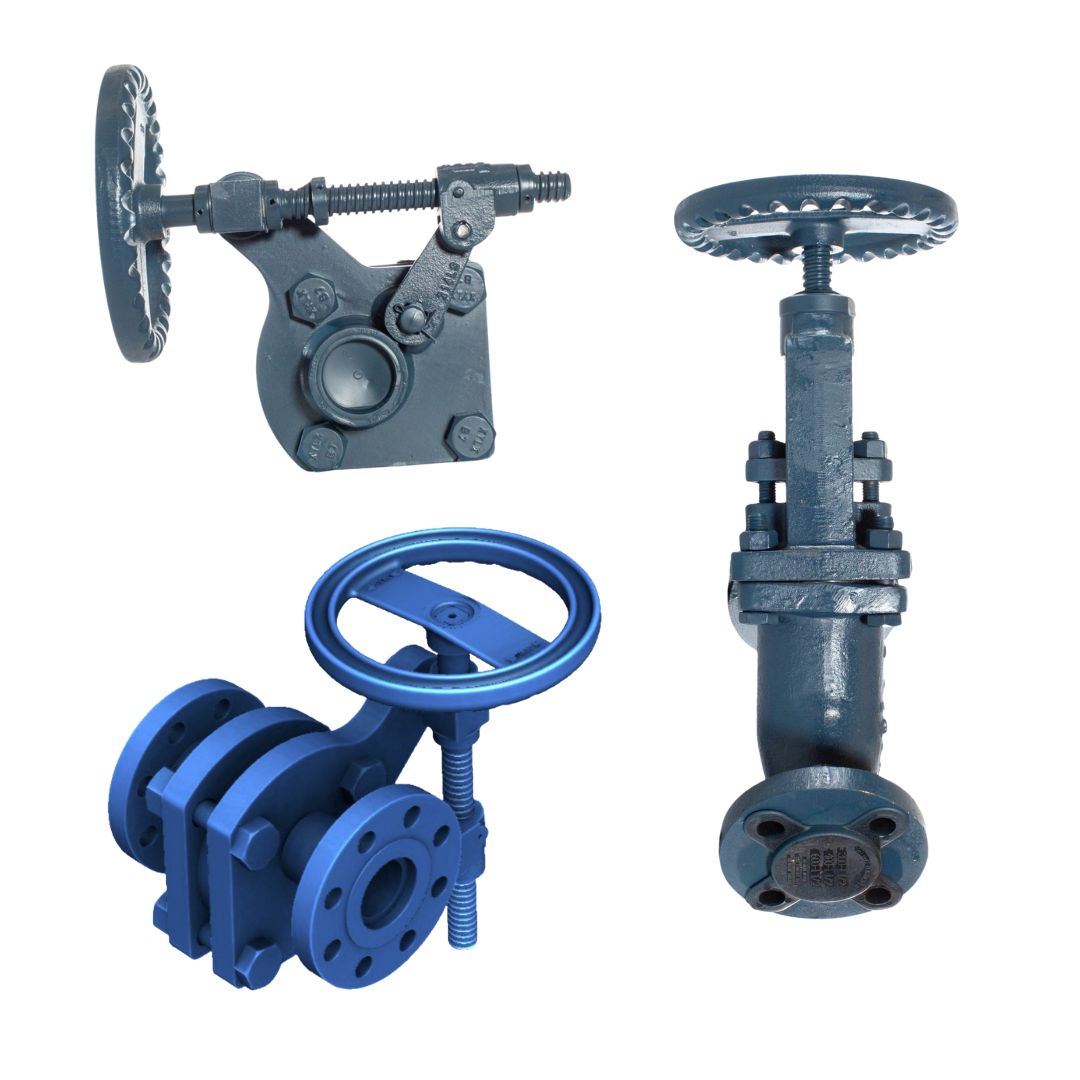

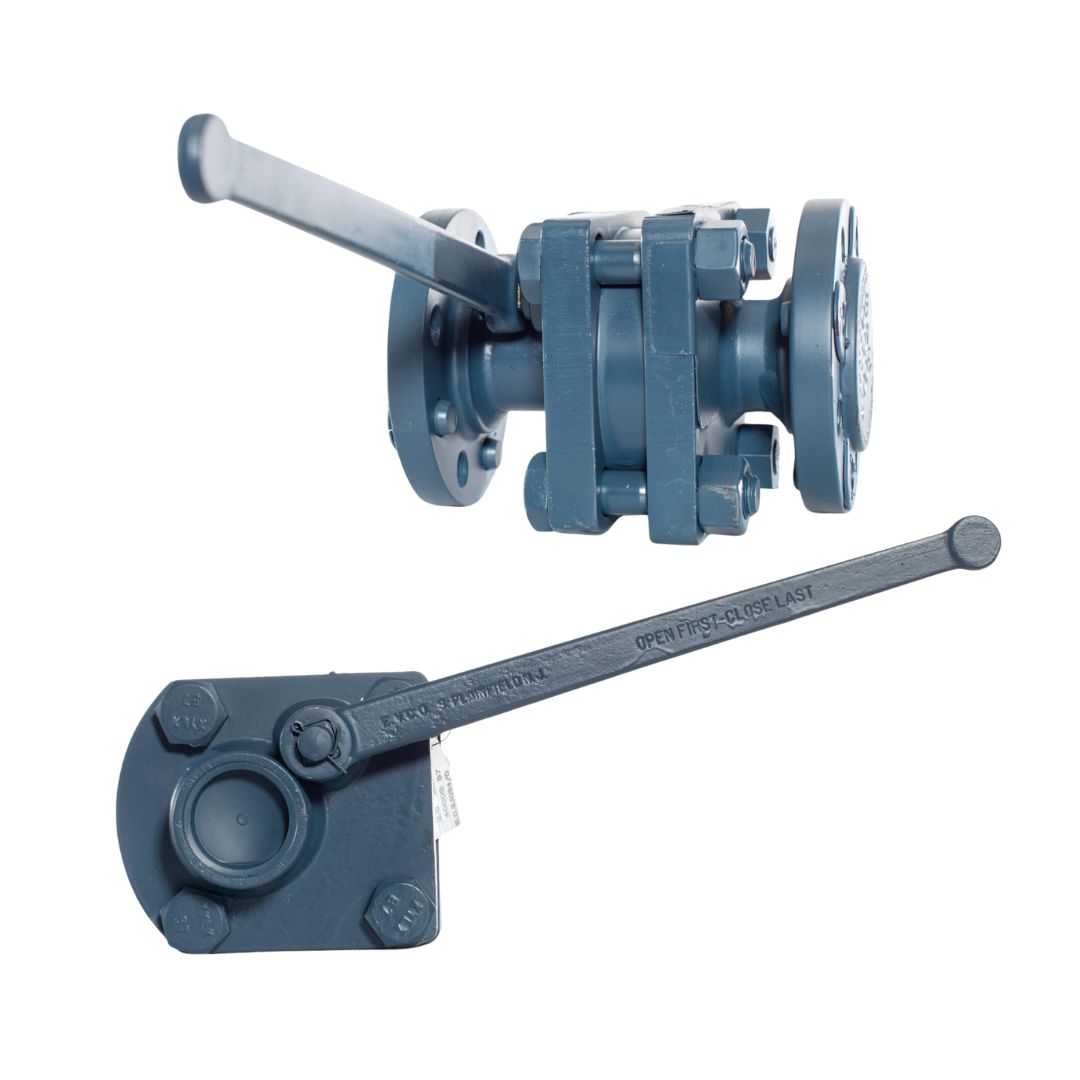

Everlasting Valves were developed for steam boiler blow down nearly 100 years ago for abrasive solids. The packaged steam boiler industry has standardized on the everlasting valve rotating flat disc boiler blow off valve. This boiler blow down valve is available in quick opening, slow opening straight and angle configurations. They are manual on-off valves that effectively blow down sludge formed in steam boilers.



Boiler Blow Down Valves are based on ASME boiler and pressure vessel section 1 codes and ANSI B16.31 power piping codes. Application include steam boiler blow down, surface blow down, water column drain, and shut-off, and stop valves.

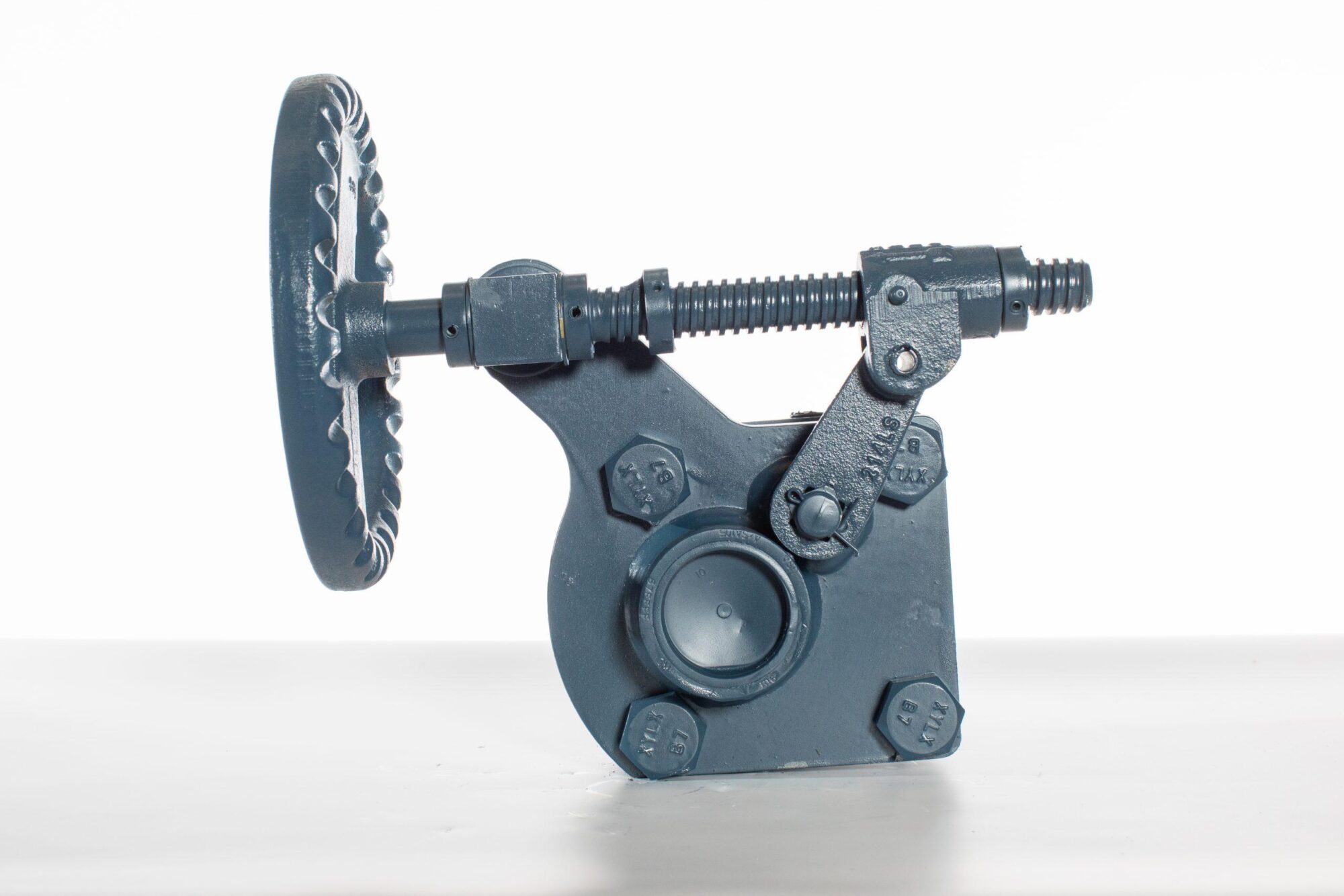

Item Name: Everlasting Figure 4060-S(57)
Description:

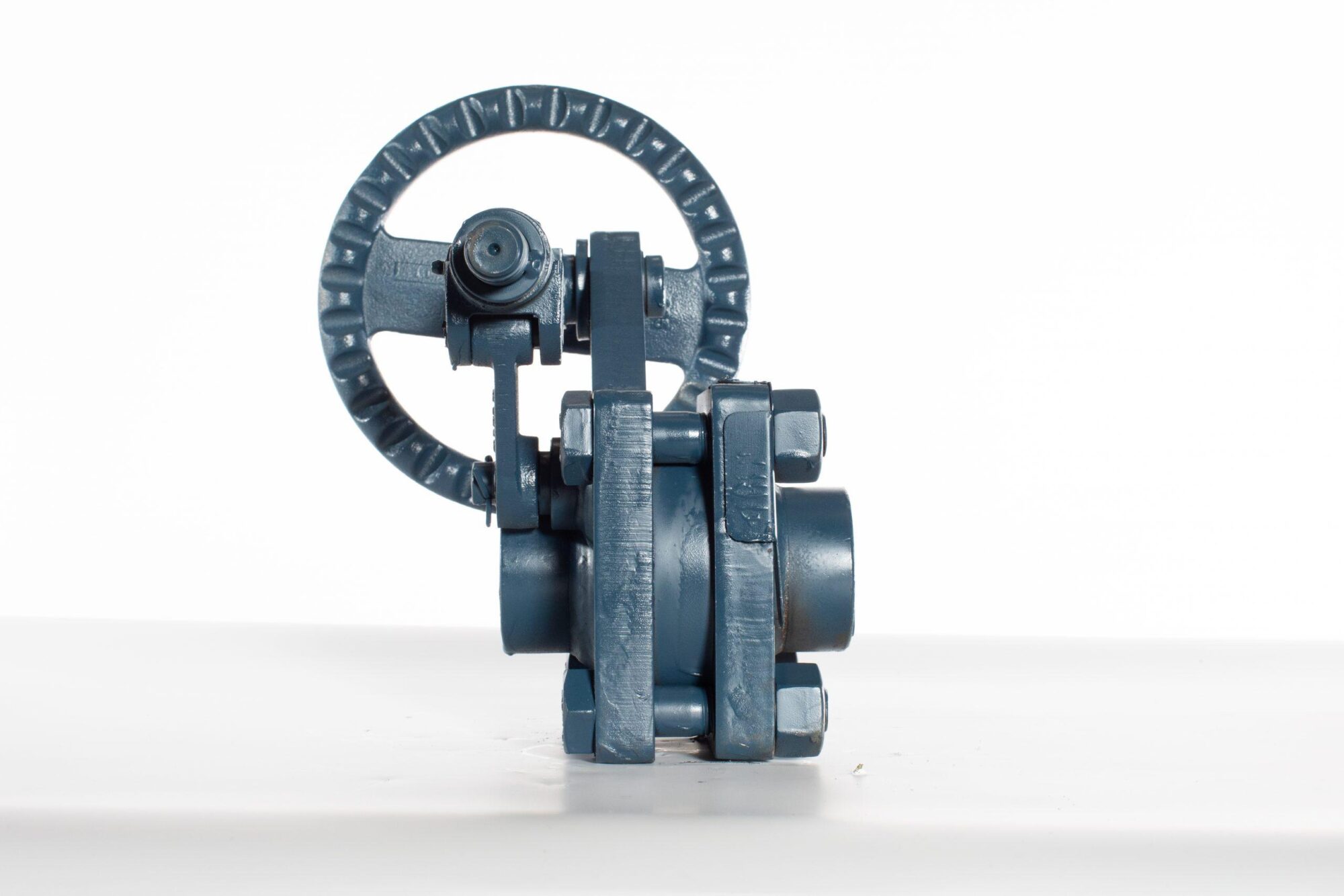

Fig. # 4060-S (57)** Steel Body, Screw End, Wheel Operated

Lead Time: Typical delivery 3-5 days. Expedite options available for NEXT DAY AIR Shipments Only.
Specifications
A.S.A. Valve Class Max. Blow-Off Pressure A.S.M.E. Code Size Weight, lbs. F H J N S W Price
300 lb. 490 psi 1" 33 5 7-1/4 11-1/2 11 4-3/4 9 $2,039.42 Add to RFQ
300 lb. 490 psi 1 1/4" 34 5-1/4 7-1/4 12 10 4-3/4 9 $2,162.02 Add to RFQ
300 lb. 490 psi 1 1/2" 45 6 7-1/4 12 10-1/2 5-1/4 9 $2,419.28 Add to RFQ
300 lb. 490 psi 2" 48 6-1/4 7-1/4 12-1/2 13 5-1/4 9 $2,593.34 Add to RFQ
300 lb. 490 psi 2 1/2" 65 13-3/8 9-1/2 16 13 6-1/2 12 $3,348.68 Add to RFQ
Item Name: Everlasting Figure 4061-S(57)
Description:

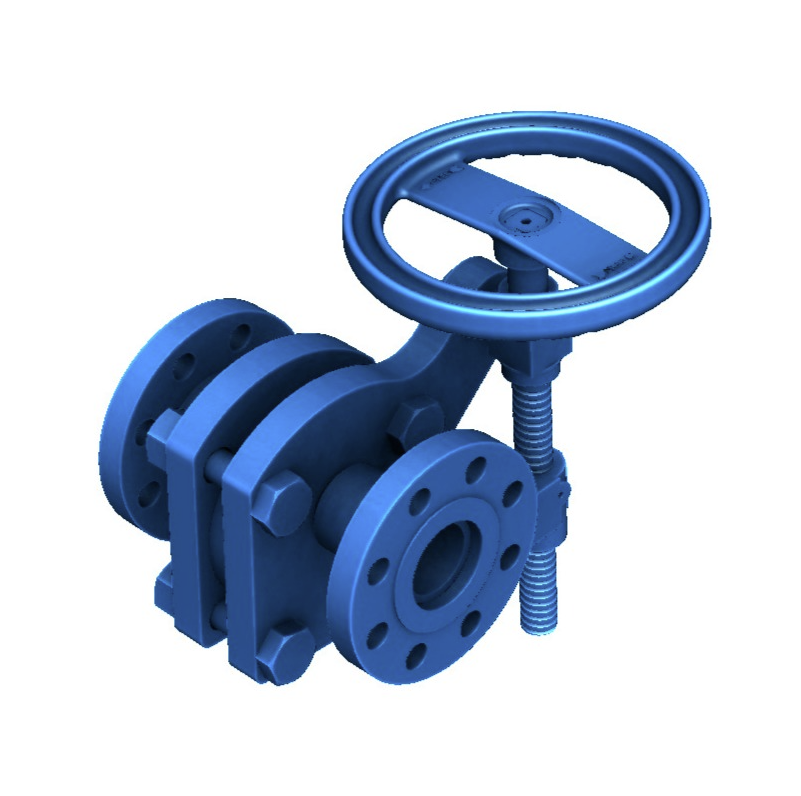

Fig. # 4061-S (57) Steel Body, Flanged, Wheel Operated

Lead Time: Typical delivery 3-5 days. Expedite options available for NEXT DAY AIR Shipments Only.
Everlasting Figure 4061-S
A.S.A. Valve Class Max. Blow-Off Pressure A.S.M.E. Code Size Weight, lbs. B H J N S W Price
300 lb. 490 psi 1" 39 7-5/8 7-1/4 11-1/2 11 4-3/4 9 $2,286.82 Add to RFQ
300 lb. 490 psi 1 1/4" 41 7-5/8 7-1/4 12 10 4-3/4 9 $2,373.30 Add to RFQ
300 lb. 490 psi 1 1/2" 57 8-7/8 7-1/4 12 10-1/2 5-1/8 9 $2,593.34 Add to RFQ
300 lb. 490 psi 2" 60 9 7-1/4 12-1/2 13 5-1/8 9 $2,773.96 Add to RFQ
300 lb. 490 psi 2 1/2" 90 12 9-1/2 16 13 6-1/2 12 $3,593.89 Add to RFQ
Item Name: Everlasting Figure B6661
Description:

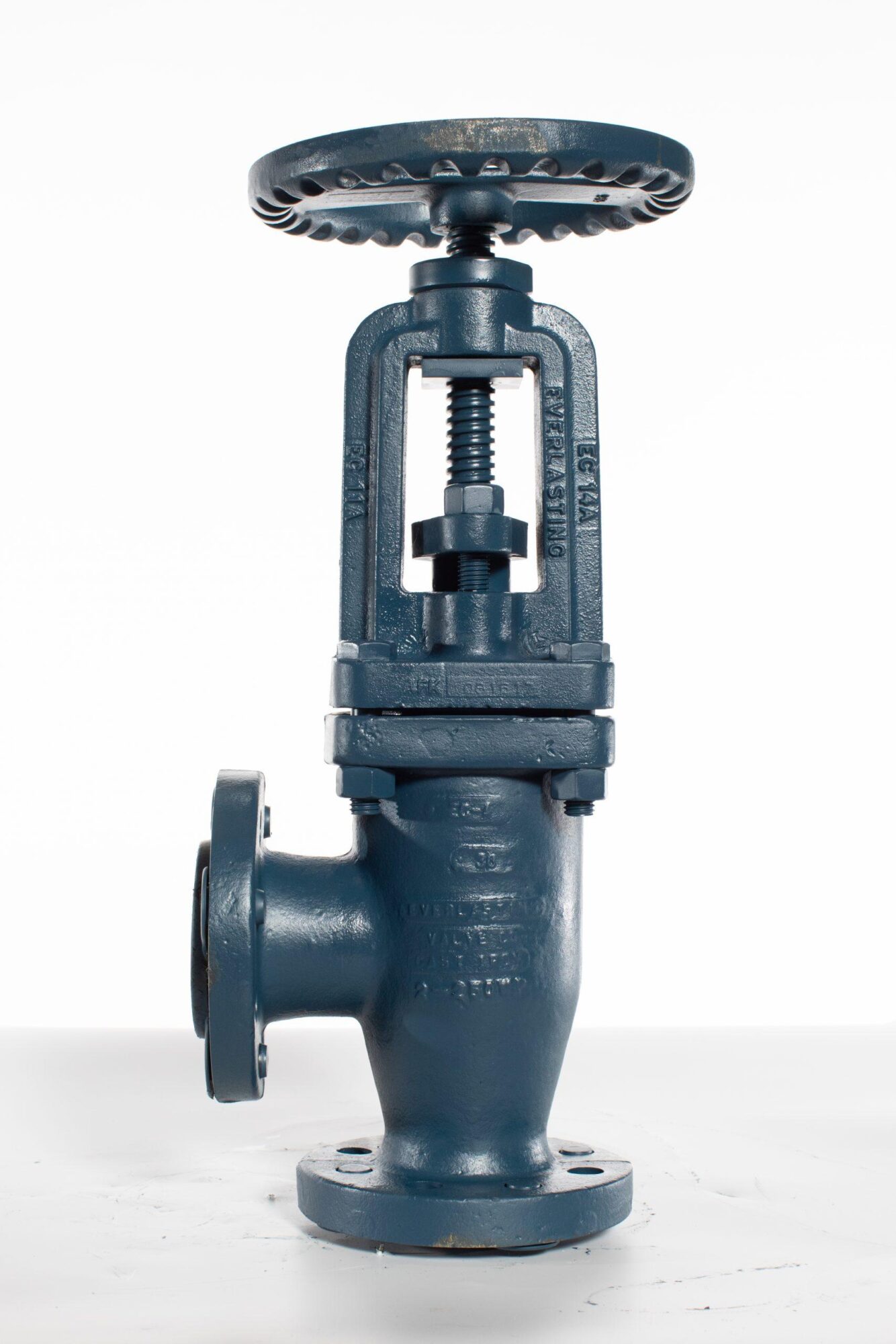

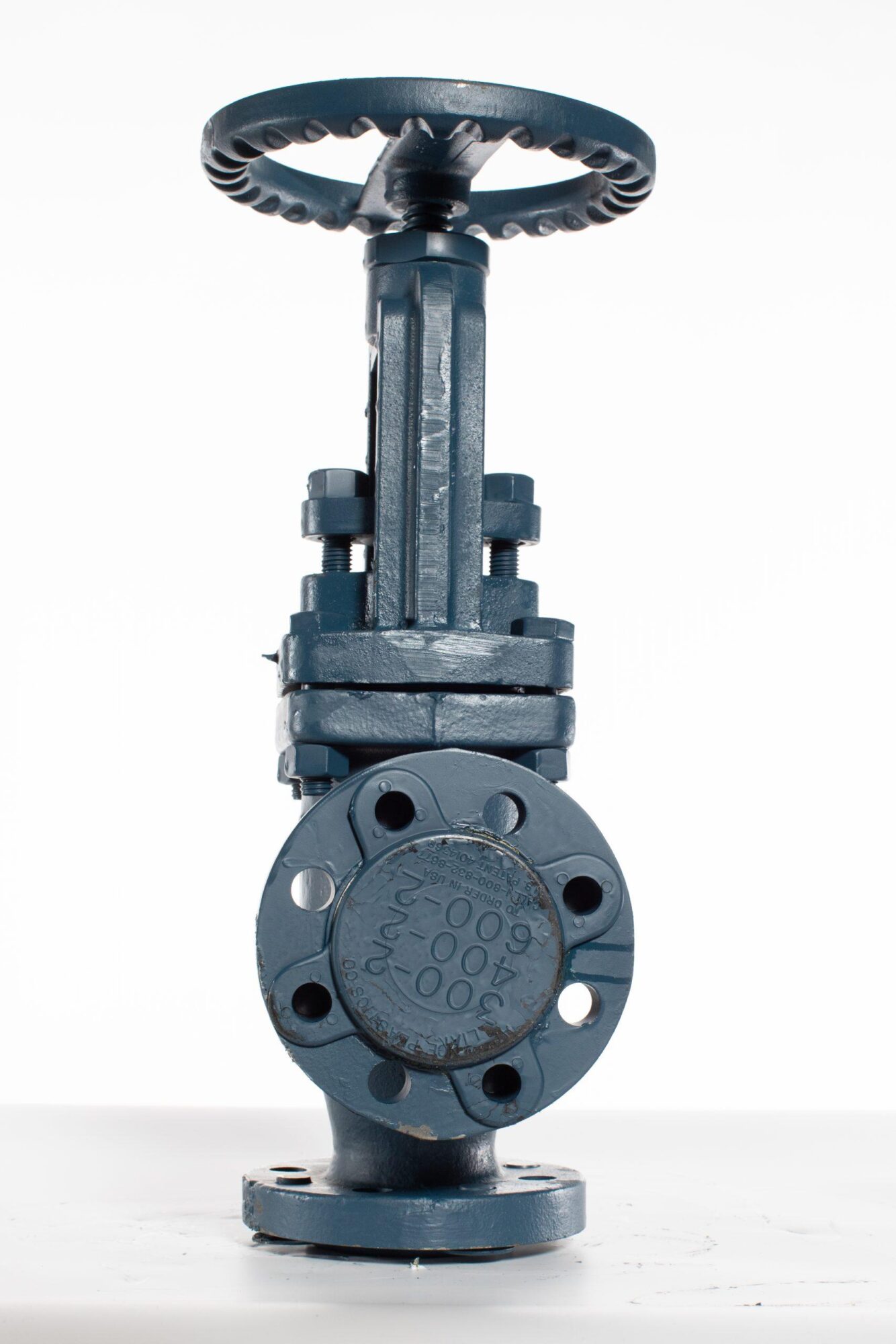

Fig # B6661 - Angle Steel Body, Flanged, F & D 300 lbs.

Lead Time: Typical delivery 3-5 days. Expedite options available for NEXT DAY AIR Shipments Only.
Everlasting Figure B6661
A.S.A. Valve Class Max. Blow-Off Pressure A.S.M.E. Code Size Weight, lbs. E G H- Shut H- Open Price
300 lb. 490 psi 1 1/2" 77 4-1/4 5 14 1/2 16-1/2 $3,246.87 Add to RFQ
300 lb. 490 psi 2" 86 5 5-1/2 15 3/8 17 7/8 $3,593.89 Add to RFQ
300 lb. 490 psi 2 1/2" 120 6 5-3/4 17 7/8 19-3/8 $4,432.42 Add to RFQ
Item Name: Everlasting Figure B6671
Description:

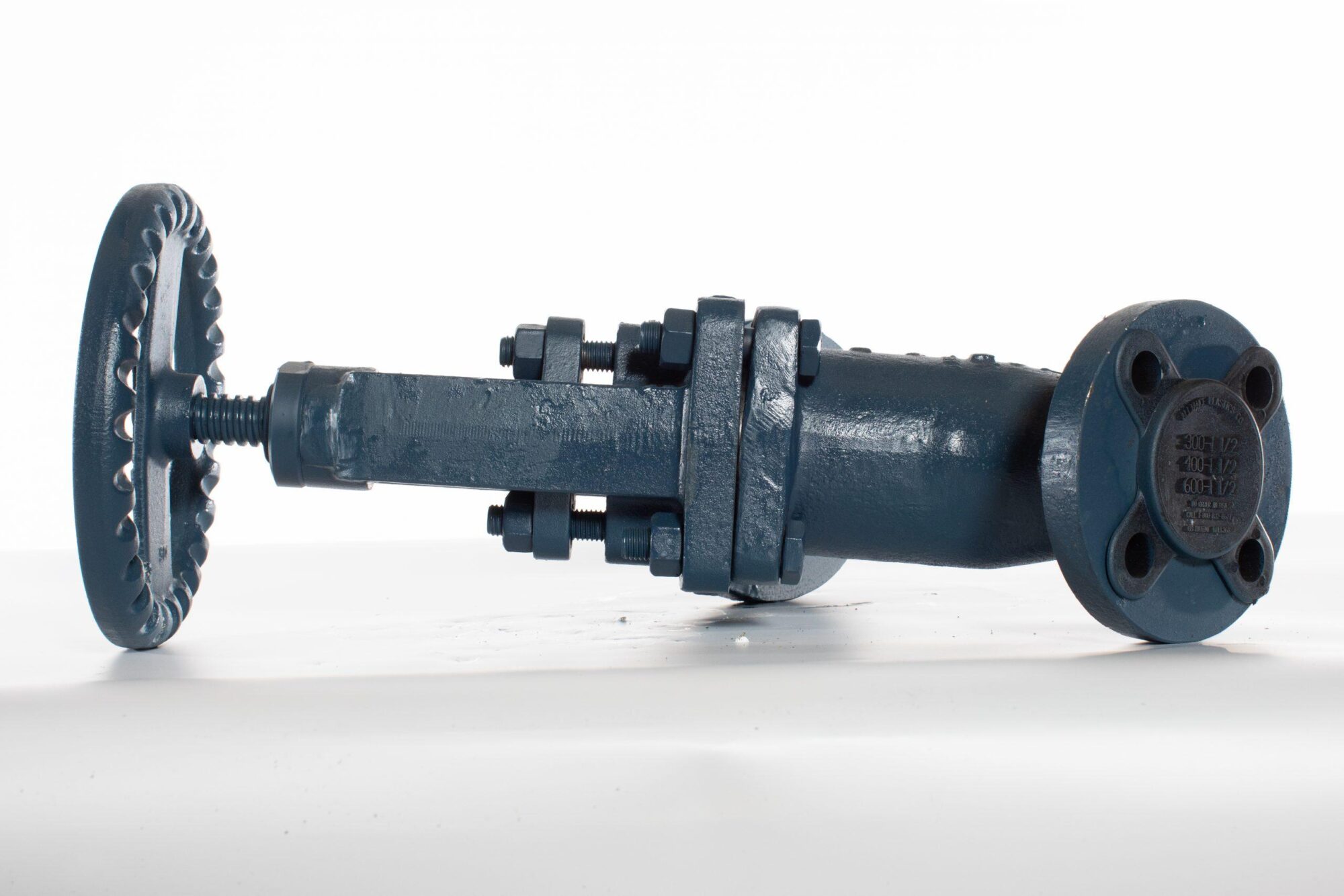

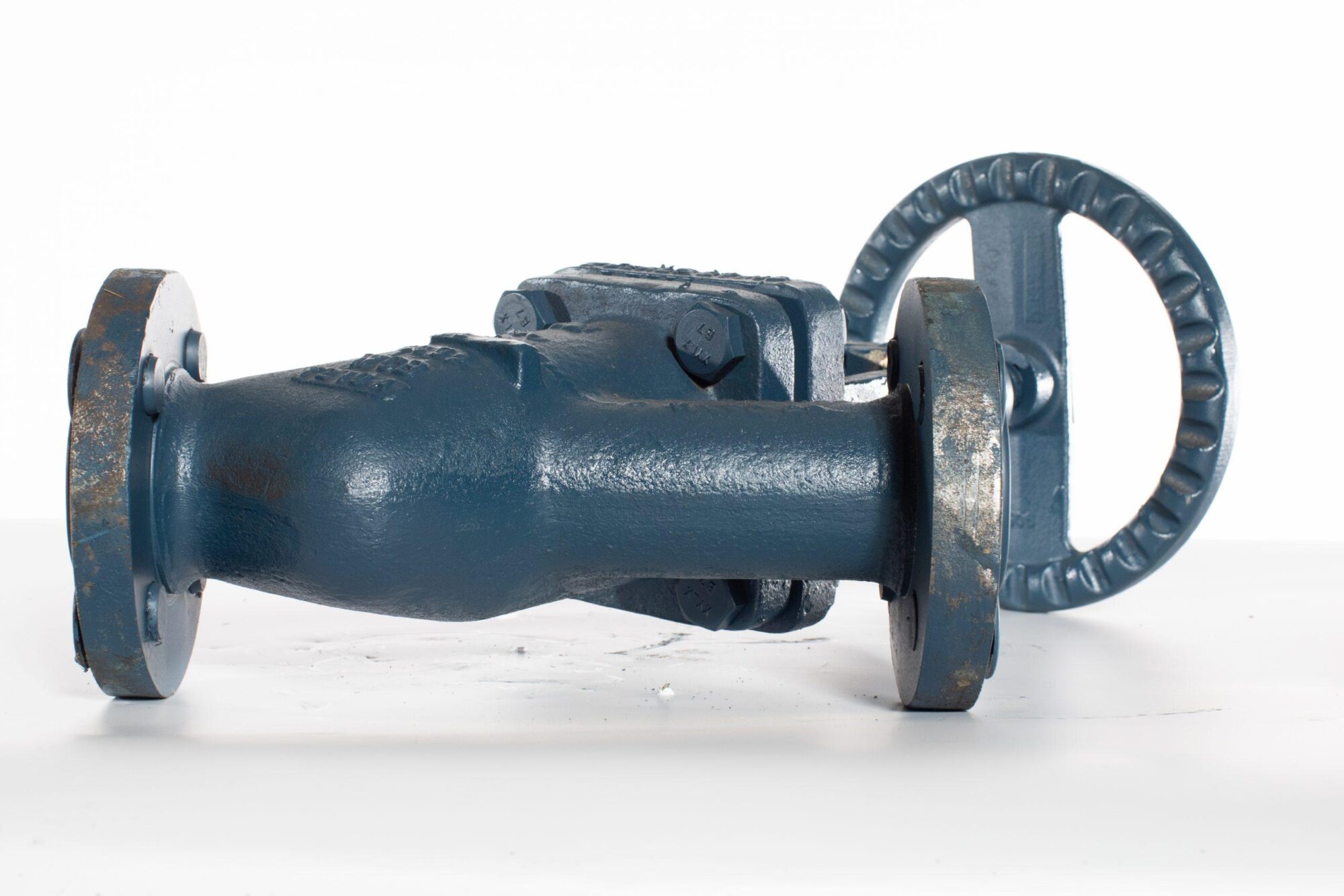

Fig # B6671 - Stwy "Y" Steel Body, Flanged, F & D 300 lbs.

Lead Time: Typical delivery 3-5 days. Expedite options available for NEXT DAY AIR Shipments Only.
Everlasting Figure B6671
A.S.A. Valve Class Max. Blow-Off Pressure A.S.M.E. Code Size Weight, lbs. B H- Open X- Open Price
300 lb. 490 psi 1 1/2" 77 12-1/4 15-3/4 6-5/8 $3,246.87 Add to RFQ
300 lb. 490 psi 2" 86 12-3/4 17-1/4 7-3/8 $3,593.89 Add to RFQ
300 lb. 490 psi 2 1/2" 120 14-3/4 18-1/2 7-5/8 $4,432.42 Add to RFQ
