Topog-e Series 180 gaskets are quick and easy to install. They conform to the mating surfaces and need no adhesive or additional material. When servicing, they are simple to remove, and peel away easily and cleanly.
Steam Boiler Service
Good for 180 psi (12 bar) and 380º F. (193º C) Water, condensate
Vessels: 200+ psi (14 bar) and less than 300ºF. (150ºC)

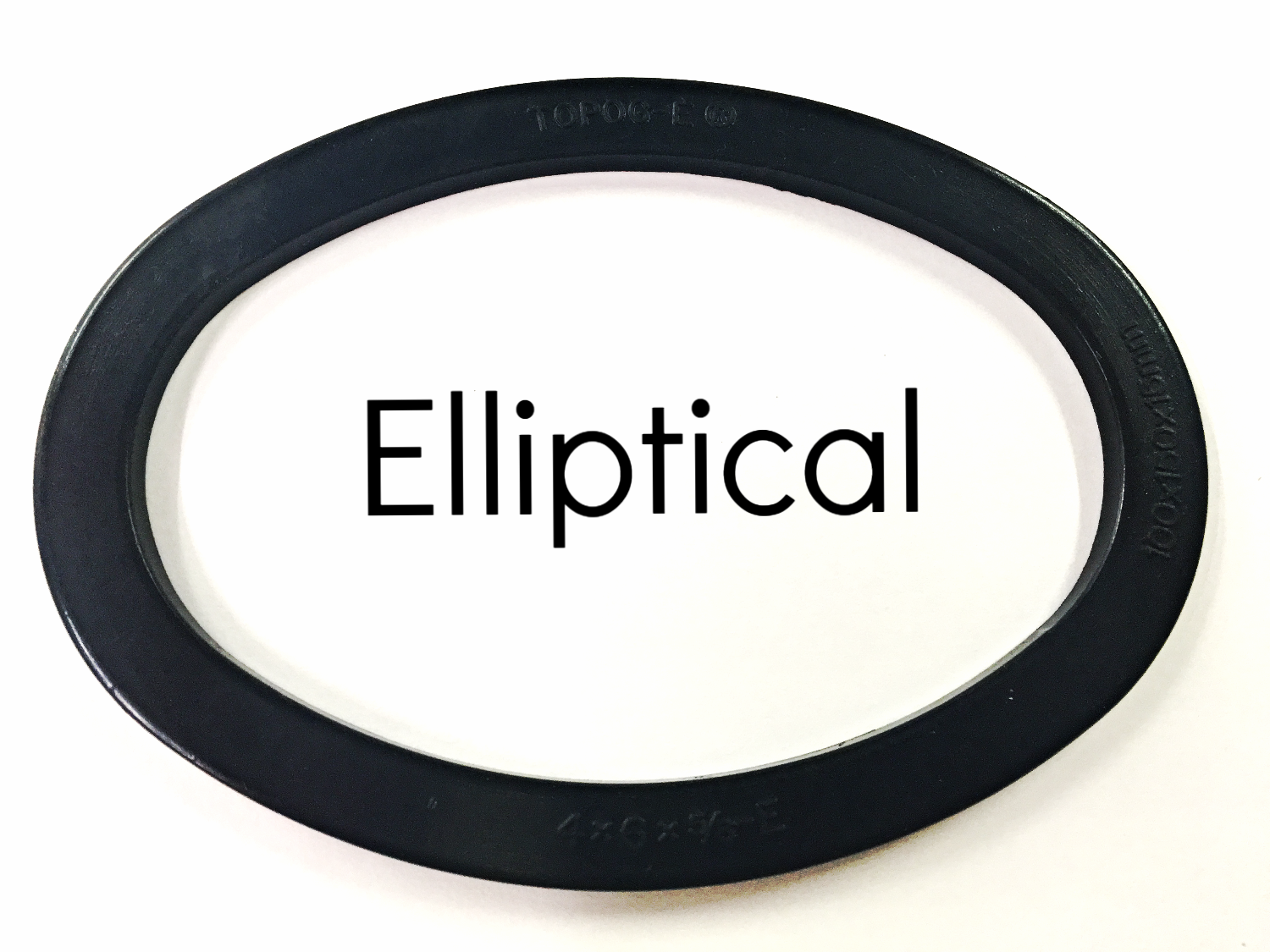

Shaped like an egg
| Part # | A | B | C | - | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| 319-071 | 2-1/2" | 3-1/4" | 3/8" E Flange | HH | 0.25 | $4.41 | Add to Cart | |
| 319-142 | 3-3/8" | 4-3/8" | 7/16" E Flange | HH | 0.50 | $5.63 | Add to Cart | |
| 319-133 | 3-1/2" | 4-1/2" | 7/16" E Flange | HH | 0.50 | $5.53 | Add to Cart | |
| 319-072 | 2-1/4" | 3-1/4" | 1/2" E Flange | HH | 0.25 | $4.34 | Add to Cart | |
| 319-073 | 2-1/2" | 3-1/2" | 1/2" E Flange | HH | 0.25 | $4.81 | Add to Cart | |
| 319-074 | 2-3/4" | 3-1/2" | 1/2" E Flange | HH | 0.25 | $5.30 | Add to Cart | |
| 319-075 | 2-1/2" | 3-3/4" | 1/2" E Flange | HH | 0.25 | $5.30 | Add to Cart | |
| 319-076 | 2-3/4" | 3-3/4" | 1/2" E Flange | HH | 0.25 | $5.22 | Add to Cart | |
| 319-077 | 2-7/8" | 3-7/8" | 1/2" E Flange | HH | 0.25 | $5.30 | Add to Cart | |
| 319-078 | 3" | 3-3/4" | 1/2" E Flange | HH | 0.25 | $5.39 | Add to Cart | |
| 319-079 | 3" | 4" | 1/2" E Flange | HH | 0.25 | $5.30 | Add to Cart | |
| 319-131 | 3-1/4" | 4-1/4" | 1/2" E Flange | HH | 0.25 | $5.54 | Add to Cart | |
| 319-080 | 3-1/4" | 4-1/2" | 1/2" E Flange | HH | 0.25 | $5.54 | Add to Cart | |
| 319-081 | 2-3/4" | 4-1/4" | 1/2" E Flange | HH | 0.25 | $5.42 | Add to Cart | |
| 319-082 | 3-1/2" | 4-1/2" | 1/2" E Flange | HH | 0.25 | $5.61 | Add to Cart | |
| 319-083 | 3-1/2" | 5" | 1/2" E Flange | HH | 0.25 | $7.18 | Add to Cart | |
| 319-084 | 3-1/4" | 5" | 9/16" E Flange | HH | 0.25 | $5.84 | Add to Cart | |
| 319-085 | 3-3/4" | 4-3/4" | 9/16" E Flange | HH | 0.25 | $5.84 | Add to Cart | |
| 319-086 | 3" | 5" | 9/16" E Flange | HH | 0.25 | $5.70 | Add to Cart | |
| 319-140 | 3-3/4" | 5-1/2" | 9/16" E Flange | HH | 0.50 | $5.94 | Add to Cart | |
| 319-137 | 4-1/2" | 6-1/2" | 9/16" E Flange | HH | 0.50 | $10.47 | Add to Cart | |
| 319-087 | 2-3/4" | 3-3/4" | 5/8" E Flange | HH | 0.25 | $5.39 | Add to Cart | |
| 319-088 | 3" | 4-1/2" | 1/2" E Flange | HH | 0.25 | $5.61 | Add to Cart | |
| 319-089 | 3" | 4" | 5/8" E Flange | HH | 0.25 | $5.61 | Add to Cart | |
| 319-090 | 3" | 4-1/2" | 5/8" E Flange | HH | 0.25 | $5.70 | Add to Cart | |
| 319-091 | 3-1/2" | 4-1/2" | 5/8" E Flange | HH | 0.25 | $5.84 | Add to Cart | |
| 319-092 | 4" | 5" | 5/8" E Flange | HH | 0.25 | $5.93 | Add to Cart | |
| 319-138 | 4-1/2" | 5-1/2" | 5/8" E Flange | HH | 0.50 | $7.00 | Add to Cart | |
| 319-093 | 4" | 6" | 5/8" E Flange | MH | 0.25 | $6.86 | Add to Cart | |
| 319-094 | 5" | 6" | 5/8" E Flange | MH | 0.25 | $11.67 | Add to Cart | |
| 319-134 | 3-1/2" | 4-1/2" | 3/4" E Flange | HH | 0.50 | $5.53 | Add to Cart | |
| 319-095 | 4" | 6" | 3/4" E Flange | MH | 0.25 | $7.68 | Add to Cart | |
| 319-135 | 5" | 7" | 3/4" E Flange | HH | 0.50 | $12.29 | Add to Cart | |
| 319-132 | 6" | 8" | 3/4" E Flange | HH | 0.50 | $13.94 | Add to Cart | |
| 319-139 | 7" | 9" | 3/4" E Flange | HH | 0.50 | $18.00 | Add to Cart | |
| 319-096 | 6" | 8" | 1" E Flange | MH | 0.25 | $14.83 | Add to Cart | |
| 319-141 | 6" | 10" | 1" E Flange | HH | 0.50 | $18.08 | Add to Cart | |
| 319-136 | 8" | 10" | 1" E Flange | HH | 0.50 | $23.01 | Add to Cart | |
| 319-097 | 10" | 14" | 1" E Flange | MH | 0.50 | $29.81 | Add to Cart | |
| 319-098 | 11" | 15" | 1" E Flange | MH | 0.50 | $29.96 | Add to Cart | |
| 319-099 | 12" | 16" | 1" E Flange | MH | 0.50 | $31.22 | Add to Cart | |
| 319-152 | 10-1/2" | 14" | 1-1/4" E Flange | MH | 0.50 | $30.15 | Add to Cart | |
| 319-101 | 10-1/2" | 14-1/2" | 1-1/4" E Flange | MH | 0.50 | $30.05 | Add to Cart | |
| 319-102 | 11" | 15" | 1-1/4" E Flange | MH | 0.50 | $30.28 | Add to Cart | |
| 319-103 | 12" | 16" | 1-1/4" E Flange | MH | 0.50 | $31.70 | Add to Cart | |
| 319-104 | 16" | 18" | 1-1/4" E Flange | MH | 0.50 | $45.96 | Add to Cart | |
| 319.150 | 10" | 15" | 1-3/8" E Flange | MH | 0.50 | $30.22 | Add to Cart | |
| 319-105 | 10-1/2" | 14-1/2" | 1-3/8" E Flange | MH | 0.50 | $30.11 | Add to Cart | |
| 319-106 | 11" | 15" | 1-3/8" E Flange | MH | 0.50 | $30.45 | Add to Cart | |
| 319-107 | 12" | 16" | 1-3/8" E Flange | MH | 0.50 | $31.79 | Add to Cart | |
| 319-143 | 10" | 14" | 1-1/2" E Flange | HH | 0.50 | $30.54 | Add to Cart | |
| 319-108 | 14" | 18" | 1-1/2" E Flange | MH | 0.50 | $44.51 | Add to Cart | |
| 319-109 | 18" | 24" | 1-1/2" E Flange | MH | 0.50 | $61.58 | Add to Cart |

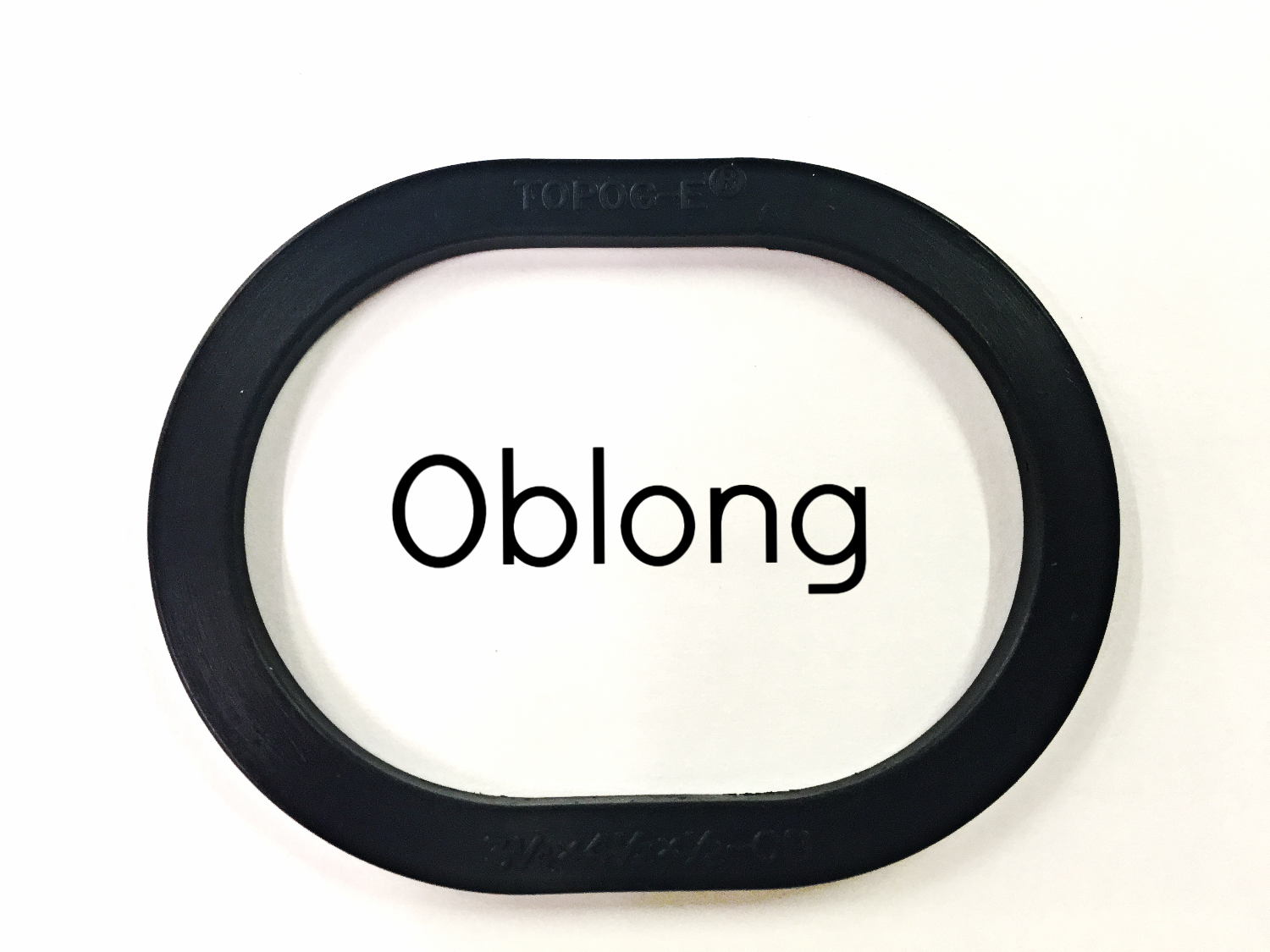

Shaped like a race-track
| Part # | A | B | C | - | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| 319-148 | 2-1/4" | 3-1/4" | 3/8" OB Flange | HH | 0.25 | $4.42 | Add to Cart | |
| 319-149 | 2-7/8" | 3-7/8" | 7/16" OB Flange | HH | 0.25 | $5.46 | Add to Cart | |
| 319-110 | 2-3/4" | 4-1/2" | 1/2" OB Flange | HH | 0.25 | $5.61 | Add to Cart | |
| 319-111 | 2" | 3" | 1/2" OB Flange | HH | 0.25 | $4.42 | Add to Cart | |
| 319-112 | 2-1/4" | 3-1/4" | 1/2" OB Flange | HH | 0.25 | $4.42 | Add to Cart | |
| 319-113 | 2-1/2" | 3-1/2" | 1/2" OB Flange | HH | 0.25 | $4.91 | Add to Cart | |
| 319-114 | 2-1/2" | 3-3/4" | 1/2" OB Flange | HH | 0.25 | $5.46 | Add to Cart | |
| 319-115 | 2-3/4" | 3-1/2" | 1/2" OB Flange | HH | 0.25 | $5.46 | Add to Cart | |
| 319-116 | 2-3/4" | 3-3/4" | 1/2" OB Flange | HH | 0.25 | $5.46 | Add to Cart | |
| 319-117 | 3" | 4" | 1/2" OB Flange | HH | 0.25 | $5.46 | Add to Cart | |
| 319-118 | 3" | 4-1/4" | 1/2" OB Flange | HH | 0.25 | $5.63 | Add to Cart | |
| 319-119 | 3-1/4" | 4-1/2" | 1/2" OB Flange | HH | 0.25 | $6.11 | Add to Cart | |
| 319-120 | 2-3/4" | 4-1/2" | 1/2" OB Flange | HH | 0.25 | $5.61 | Add to Cart | |
| 319-146 | 3-1/2" | 5-1/2" | 1/2" OB Flange | HH | 0.25 | $6.42 | Add to Cart | |
| 319-121 | 3" | 4" | 9/16" OB Flange | HH | 0.25 | $5.56 | Add to Cart | |
| 319-144 | 3" | 5" | 9/16" OB Flange | HH | 0.25 | $6.19 | Add to Cart | |
| 319-122 | 3-1/4" | 4-1/4" | 9/16" OB Flange | HH | 0.25 | $5.54 | Add to Cart | |
| 319-123 | 3" | 4-1/2" | 9/16" OB Flange | HH | 0.25 | $5.70 | Add to Cart | |
| 319-124 | 3-1/4" | 4-1/2" | 9/16" OB Flange | HH | 0.25 | $6.18 | Add to Cart | |
| 319-125 | 3-1/2" | 4-1/2" | 9/16" OB Flange | HH | 0.25 | $6.18 | Add to Cart | |
| 319-126 | 3" | 5" | 9/16" OB Flange | HH | 0.25 | $6.18 | Add to Cart | |
| 319-127 | 3-1/2" | 5" | 9/16" OB Flange | HH | 0.25 | $6.40 | Add to Cart | |
| 319-147 | 3-1/2" | 5-1/2" | 5/8" OB Flange | HH | 0.25 | $6.49 | Add to Cart | |
| 319-128 | 4" | 5" | 5/8" OB Flange | HH | 0.25 | $6.79 | Add to Cart | |
| 319-129 | 4" | 6" | 5/8" OB Flange | MH | 0.25 | $7.28 | Add to Cart | |
| 319-145 | 4-1/2" | 6 | 5/8" OB Flange | HH | 0.25 | $7.70 | Add to Cart | |
| 319-130 | 11" | 15" | 1-1/4" OB Flange | MH | 0.25 | $30.51 | Add to Cart | |
| 319-151 | 12" | 16" | 1-1/4" OB Flange | MH | 0.25 | $32.11 | Add to Cart |
