Chainwheels by Babbitt Steam allow plant employees to operate the valves in the hard to reach areas safely.

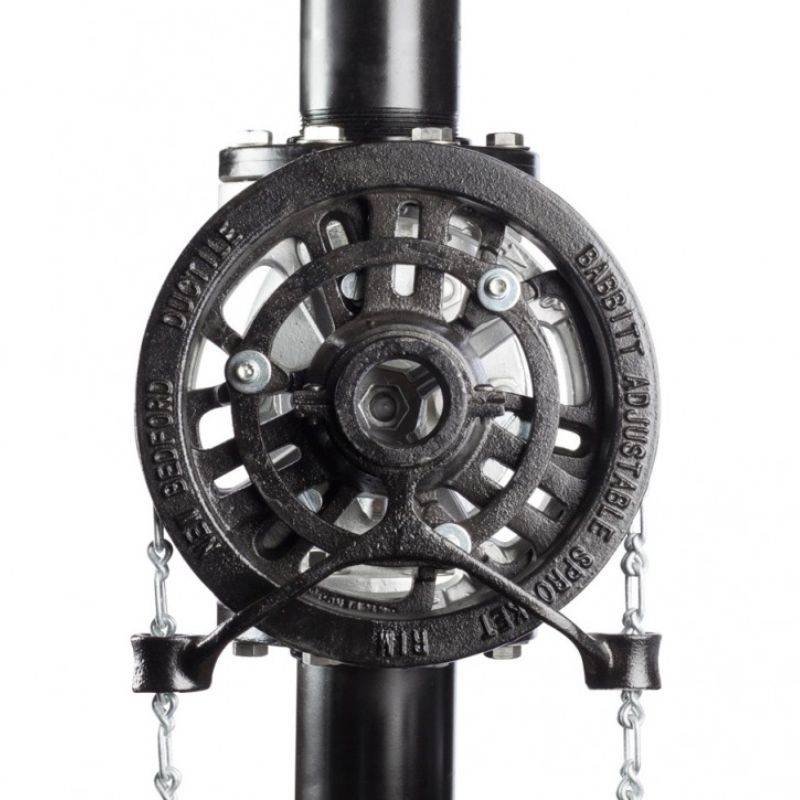

Hammerblow chainwheels with ductile iron rims and malleable iron guide arms. Use these chainwheels to operate high pressure valves or valves that are hard to open and close.
Chain Wheel uses Brass Chain.
| Item # |
Description Chain Operator |
Valve Handwheel OD (inches) |
Chain Operator # |
Wheel Rim OD (inches) |
Uses Chain Size |
Price | |
|---|---|---|---|---|---|---|---|
| DIRGHB-1.5 |
Hammerblow Handwheel Only DIRGHB-1.5 |
6 - 7-1/2" | 1.5 | 7-1/2" | 1/0 | $442.95 | Add to RFQ |
| DIRGHB-1.5 |
Hammerblow Chain Only DIRGHB-1.5 |
6 - 7-1/2" | 1.5 | 7-1/2" | 1/0 | $20.00 | Add to RFQ |
| DIRGHB-1.5 |
Hammerblow Master Link DIRGHB-1.5 |
6 - 7-1/2" | 1.5 | 7-1/2" | 1/0 | $13.00 | Add to RFQ |
| DIRGHB-2 |
Hammerblow Handwheel Only DIRGHB-2 |
7-3/4 - 9" | 2 | 9" | 1/0 | $472.95 | Add to RFQ |
| DIRGHB-2 |
Hammerblow Chain Only DIRGHB-2 |
7-3/4 - 9" | 2 | 9" | 1/0 | $20.00 | Add to RFQ |
| DIRGHB-2 |
Hammerblow Master Link DIRGHB-2 |
7-3/4 - 9" | 2 | 9" | 1/0 | $13.00 | Add to RFQ |
| DIRGHB-2.5 |
Hammerblow Handwheel Only DIRGHB-2.5 |
9-1/4 - 12-1/2" | 2.5 | 12" | 4/0 | $577.95 | Add to RFQ |
| DIRGHB-2.5 |
Hammerblow Chain Only DIRGHB-2.5 |
9-1/4 - 12-1/2" | 2.5 | 12" | 4/0 | $30.00 | Add to RFQ |
| DIRGHB-2.5 |
Hammerblow Master Link DIRGHB-2.5 |
9-1/4 - 12-1/2" | 2.5 | 12" | 4/0 | $15.00 | Add to RFQ |
| DIRGHB-3 |
Hammerblow Handwheel Only DIRGHB-3 |
12-3/4 - 15-1/2" | 3 | 15-1/2" | 4/0 | $787.95 | Add to RFQ |
| DIRGHB-3 |
Hammerblow Chain Only DIRGHB-3 |
12-3/4 - 15-1/2" | 3 | 15-1/2" | 4/0 | $30.00 | Add to RFQ |
| DIRGHB-3 |
Hammerblow Master Link DIRGHB-3 |
12-3/4 - 15-1/2" | 3 | 15-1/2" | 4/0 | $15.00 | Add to RFQ |
| DIRGHB-3.5 |
Hammerblow Handwheel Only DIRGHB-3.5 |
15-3/4 - 19" | 3.5 | 18-1/2" | 4/0 | $1,050.00 | Add to RFQ |
| DIRGHB-3.5 |
Hammerblow Chain Only DIRGHB-3.5 |
15-3/4 - 19" | 3.5 | 18-1/2" | 4/0 | $30.00 | Add to RFQ |
| DIRGHB-3.5 |
Hammerblow Master Link DIRGHB-3.5 |
15-3/4 - 19" | 3.5 | 18-1/2" | 4/0 | $15.00 | Add to RFQ |
| DIRGHB-4 |
Hammerblow Handwheel Only DIRGHB-4 |
19-1/4 - 22" | 4 | 21-1/2" | 5/0 | $1,387.95 | Add to RFQ |
| DIRGHB-4 |
Hammerblow Chain Only DIRGHB-4 |
19-1/4 - 22" | 4 | 21-1/2" | 5/0 | $36.00 | Add to RFQ |
| DIRGHB-4 |
Hammerblow Master Link DIRGHB-4 |
19-1/4 - 22" | 4 | 21-1/2" | 5/0 | $17.00 | Add to RFQ |
| DIRGHB-4.5 |
Hammerblow Handwheel Only DIRGHB-4.5 |
22-1/2 - 26" | 4.5 | 25-3/4" | 5/0 | $2,062.95 | Add to RFQ |
| DIRGHB-4.5 |
Hammerblow Chain Only DIRGHB-4.5 |
22-1/2 - 26" | 4.5 | 25-3/4" | 5/0 | $36.00 | Add to RFQ |
| DIRGHB-4.5 |
Hammerblow Master Link DIRGHB-4.5 |
22-1/2 - 26" | 4.5 | 25-3/4" | 5/0 | $17.00 | Add to RFQ |
| DIRGHB-5 |
Hammerblow Handwheel Only DIRGHB-5 |
26-1/4 - 30" | 5 | 30" | 5/0 | $3,225.00 | Add to RFQ |
| DIRGHB-5 |
Hammerblow Chain Only DIRGHB-5 |
26-1/4 - 30" | 5 | 30" | 5/0 | $36.00 | Add to RFQ |
| DIRGHB-5 |
Hammerblow Master Link DIRGHB-5 |
26-1/4 - 30" | 5 | 30" | 5/0 | $17.00 | Add to RFQ |
| DIRGHB-5L |
Hammerblow Handwheel Only DIRGHB-5L |
30-1/4 - 36" | 5 | 30" | 5/0 | $3,262.95 | Add to RFQ |
| DIRGHB-5L |
Hammerblow Chain Only DIRGHB-5L |
30-1/4 - 36" | 5 | 30" | 5/0 | $36.00 | Add to RFQ |
| DIRGHB-5L |
Hammerblow Master Link DIRGHB-5L |
30-1/4 - 36" | 5 | 30" | 5/0 | $17.00 | Add to RFQ |
| Babbitt Part # / Wheel Size # | DIRGHB-1.5 | DIRGHB-2 | DIRGHB-2.5 | DIRGHB-3 | DIRGHB-3.5 | DIRGHB-4 | DIRGHB-4.5 | DIRGHB-5 |
|---|---|---|---|---|---|---|---|---|
| A- OVERALL HEIGHT | 7-3/4" | 10-1/2" | 12-1/2" | 15-1/2" | 18-1/2" | 21-1/2" | 25-3/4" | 30-1/4" |
| B- INNER BOLT CIRCLE | 3-1/2" | 4-1/2" | 5-1/2" | 8-1/2" | 11-1/2" | 11-1/2" | 14-1/2" | 18-3/4" |
| C- OUTER BOLT CIRCLE | 5" | 6-5/8" | 9-1/4" | 12-3/8" | 15-1/2" | 17-3/4" | 21-1/4" | 25-1/4" |
| D- HUB OPENING (DIA) | 1" | 2-1/8" | 2-1/8" | 2-1/8" | 3" | 3" | 3" | 3" |
| E- SLOT SIZE (WIDTH) | 3/8" | 3/8" | 7/16" | 7/16" | 7/16" | 5/8" | 5/8" | 5/8" |
| F- REAR OPENING | 1-7/8" | 3-1/8" | 3-1/2" | 3-1/2" | 4-7/8" | 4-7/8" | 4-5/8" | 4-3/4" |
| G- HUB DEPTH (SHOULDER TO REAR) | 1-7/16" | 1-3/8" | 1-3/4" | 1-7/8" | 1-7/8" | 1-7/8" | 1-7/8" | 2" |
| H- RIM THICKNESS | 1-1/8" | 1-1/8" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | 1-1/2" |
| I- OVERALL DEPTH | 2-3/8" | 2-3/8" | 2-5/8" | 2-5/8" | 3-1/8" | 3-1/8" | 3-1/8" | 3-1/8" |
