Aluminum Pocketwheels In Stock

Item Name: Babbitt Aluminum Pocketwheels

Manufacturer:

Babbitt

Description:

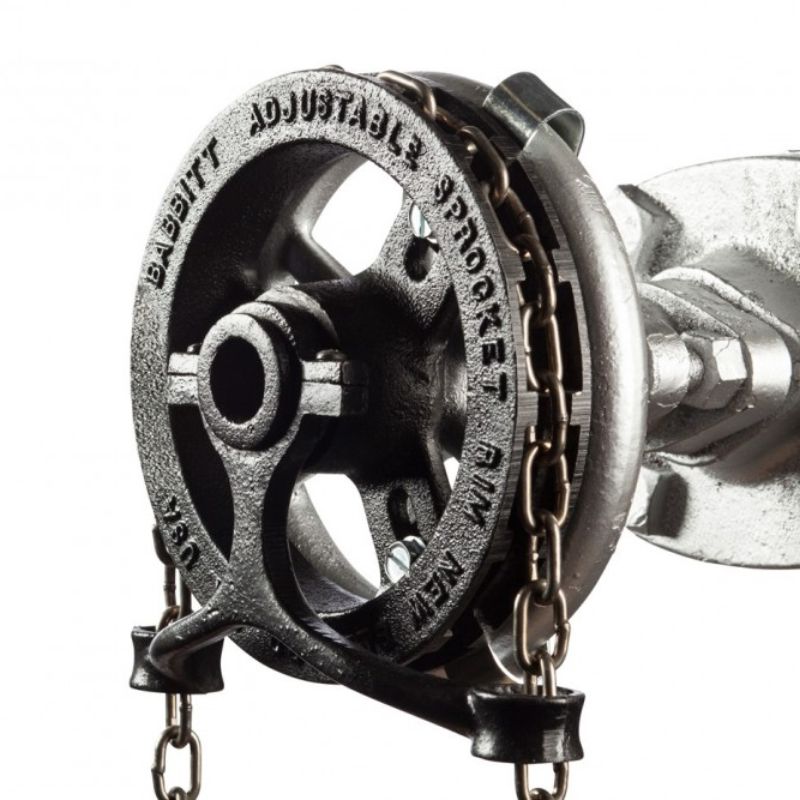

Pocketwheel style chainwheels are designed to accommodate applications where straight link welded chain is required. The chain channel is designed to accept every other link of straight link chain.

Standard Components

Chainwheel
Guide arm and cap
Zinc plated carbon steel attachment set for clamping to the valve hand wheel
Attachment instructions for installing the chainwheel to the hand wheel of the valve

Chainwheel uses #2 Hot Dipped Galvanized Welded Machine Chain.

*No Masterlink for Pocketwheels*

Lead Time: Standard 2-4 day lead time...some items In Stock available for immediate shipment

Shipping Time: 3-5 Business Days

Babbitt Part # / Wheel Size #	ARG-1.5P	ARG-2P	ARG-2.5P	ARG-3P	ARG-3.5P	ARG-4P	ARG-4.5P
Babbitt Part # / Wheel Size #	ARG-1.5P	ARG-2P	ARG-2.5P	ARG-3P	ARG-3.5P	ARG-4P	ARG-4.5P
A- OVERALL HEIGHT	7-3/4"	10-1/2"	12-1/2"	15-1/2"	18-1/2"	21-1/2"	25-3/4"
B- INNER BOLT CIRCLE	3-1/2"	4-1/2"	5-1/2"	8-1/2"	11-1/2"	11-1/2"	14-1/2"
C- OUTER BOLT CIRCLE	5"	6-5/8"	9-1/4"	12-3/8"	15-1/2"	17-3/4"	21-1/4"
D- HUB OPENING (DIA)	1"	2-1/8"	2-1/8"	2-1/8"	3"	3"	3"
E- SLOT SIZE (WIDTH)	3/8"	3/8"	7/16"	7/16"	7/16"	5/8"	5/8"
F- REAR OPENING	1-7/8"	3-1/8"	3-1/2"	3-1/2"	4-7/8"	4-7/8"	4-5/8"
G- HUB DEPTH (SHOULDER TO REAR)	1-7/16"	1-3/8"	1-3/4"	1-7/8"	1-7/8"	1-7/8"	1-7/8"
H- RIM THICKNESS	1-1/8"	1-1/8"	1-1/4"	1-1/4"	1-1/4"	1-1/2"	1-1/2"
I- OVERALL DEPTH	2-3/8"	2-3/8"	2-5/8"	2-5/8"	3-1/8"	3-1/8"	3-1/8"

Pocket Wheel
Item #	Description	Valve Handwheel OD (inches)	Chain Operator #	Wheel Rim OD (inches)	Uses Chain Size
Item #	Description	Valve Handwheel OD (inches)	Chain Operator #	Wheel Rim OD (inches)	Uses Chain Size
ARG-1.5P	Aluminum Pocketwheel Only ARG-1.5P	6 - 7-1/2"	1.5	7-1/2"	2/0	Add to Cart Add to RFQ
ARG-2P	Aluminum Pocketwheel Only ARG-2P	7-3/4 - 9"	2	9"	2/0	Add to Cart Add to RFQ
ARG-2.5P	Aluminum Pocketwheel Only ARG-2.5P	9-1/4 - 12-1/2"	2.5	12"	2/0	Add to Cart Add to RFQ
ARG-3P	Aluminum Pocketwheel Only ARG-3P	12-3/4 - 15-1/2"	3	15-1/2"	2/0	Add to Cart Add to RFQ
ARG-3.5P	Aluminum Pocketwheel Only ARG-3.5P	15-3/4 - 19"	3.5	18-1/2"	2/0	Add to Cart Add to RFQ
ARG-4P	Aluminum Pocketwheel Only ARG-4P	19-1/4 - 22"	4	21-1/2"	2/0	Add to Cart Add to RFQ
ARG-4.5P	Aluminum Pocketwheel Only ARG-4.5P	22-1/2 - 26"	4.5	25-3/4"	2/0	Add to Cart Add to RFQ

Chain Price Per Ft. (#2 Galvanized Chain)
Item #	Uses Chain Trade Size	Product Description
Item #	Uses Chain Trade Size	Product Description
GCW-1-5P	2/0	Chain Used For All Pocket Wheel Models	Add to Cart Add to RFQ

Files:

Babbitt Catalog.pdf
