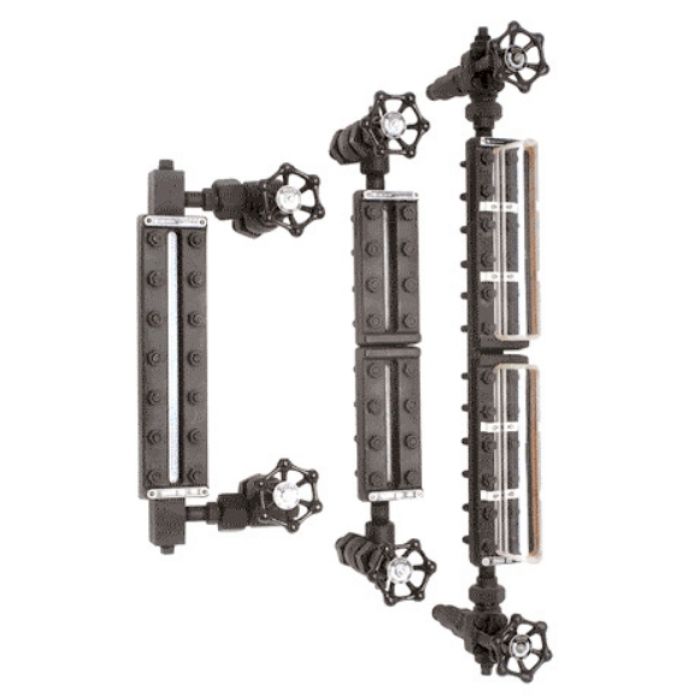

The ARCHON Armored Liquid Level Gauges are high presure units for the most demanding services. Available in Single and Multiple Section type sizes 1 through 9 with a one piece liquid chamber, machined from solid bar stock of cold rolled carbon steel, stress relieved and assembled complete with drop forged steel covers, tempered borosilicate glasses, resistant to thermal shock, heat, corrosion and abrasion; gaskets; bolts and nuts. The liquid chamber is recessed for each individual glass and the gasket fits into this recess snugly, so it cannot be forced out in any direction by internal pressure.
The bolts are properly spaced to insure a uniform pressure on the gaskets and glass. The Bolts and Nuts are Chrome Molybdenum alloy steel; Bolts ASTM A193 B7; Nuts ASTM A194 2H.
The gaskets used are of the finest quality, uniform in thickness and accurately die cut. The standard gasket material is compressed non-asbestos, but can be furnished in other materials most suitable for the liquid involved. These gauges can also be furnished in other special metals such as Stainless Steel, Monel, etc.
REFLEX GAUGES- This type of liquid level gauge is furnished with a flat Reflex Glass, having reflecting prisms, causing the liquid to appear black and the space above silvery in direct contrast, assuring a distinct reading of the liquid level.
Connections: 1/2" or 3/4" NPT - End, Side, or Back Connections.
Gauges Stocked in 3/4" NPT Female End Connections Only.
Get exactly the size gauge glass you need. No guessing. No mistakes. White Glove boxing and insurance is included in the price!
Use our proprietary one-step glass ordering system! ONLY at BoilerSuppliers.com

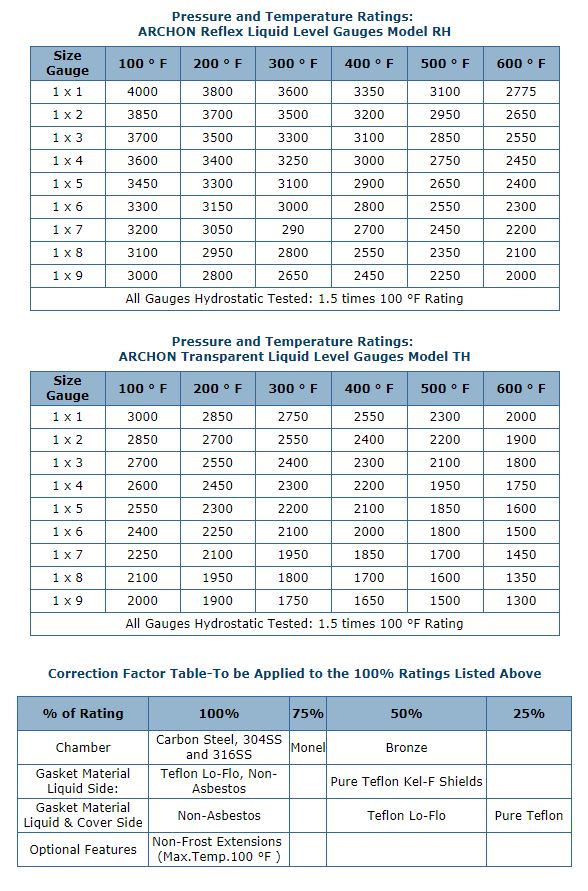

|Sections x Glass Size||Model #||Visible Length (Inches)||Visible Length (MM)||
End Connected Overall Length
End Connected Overall Length
|1 x 1||PPI-ARH11||3.750||95||5.250||133||Add to Cart Add to RFQ|
|1 x 2||PPI-ARH12||4.750||121||6.250||159||Add to Cart Add to RFQ|
|1 x 3||PPI-ARH13||5.750||146||7.250||184||Add to Cart Add to RFQ|
|1 x 4||PPI-ARH14||6.750||171||8.250||210||Add to Cart Add to RFQ|
|1 x 5||PPI-ARH15||7.875||200||9.375||238||Add to Cart Add to RFQ|
|1 x 6||PPI-ARH16||9.125||232||10.625||270||Add to Cart Add to RFQ|
|1 x 7||PPI-ARH17||10.250||2660||11.750||298||Add to Cart Add to RFQ|
|1 x 8||PPI-ARH18||11.875||302||13.375||340||Add to Cart Add to RFQ|
|1 x 9||PPI-ARH19||12.625||321||14.125||359||Add to Cart Add to RFQ|
|2 x 4||PPI-ARH24||15.000||381||16.500||419||Add to Cart Add to RFQ|
|2 x 5||PPI-ARH25||17.250||438||18.750||476||Add to Cart Add to RFQ|
|2 x 6||PPI-ARH26||19.750||502||21.250||540||Add to Cart Add to RFQ|
|2 x 7||PPI-ARH27||22.000||559||23.500||597||Add to Cart Add to RFQ|
|2 x 8||PPI-ARH28||25.250||6441||26.750||679||Add to Cart Add to RFQ|
|2 x 9||PPI-ARH29||26.750||679||28.250||718||Add to Cart Add to RFQ|
|3 x 6||PPI-ARH36||30.375||772||31.875||810||Add to Cart Add to RFQ|
|3 x 7||PPI-ARH37||33.750||857||35.250||895||Add to Cart Add to RFQ|
|3 x 8||PPI-ARH38||38.625||981||40.125||1019||Add to Cart Add to RFQ|
|3 x 9||PPI-ARH39||40.875||1038||42.375||1076||Add to Cart Add to RFQ|
|4 x 7||PPI-ARH47||45.500||1156||47.000||1194||Add to Cart Add to RFQ|
|4 x 8||PPI-ARH48||52.000||1321||53.500||1359||Add to Cart Add to RFQ|
|4 x 9||PPI-ARH49||55.000||1397||56.500||1435||Add to Cart Add to RFQ|
|5 x 7||PPI-ARH57||57.250||1454||58.750||1492||Add to Cart Add to RFQ|
|5 x 8||PPI-ARH58||65.375||16661||66.875||1699||Add to Cart Add to RFQ|
|5 x 9||PPI-ARH59||69.125||1756||70.625||1794||Add to Cart Add to RFQ|
|6 x 8||PPI-ARH68||78.750||2000||80.250||2038||Add to Cart Add to RFQ|
|6 x 9||PPI-ARH69||83.250||2115||84.750||2153||Add to Cart Add to RFQ|
|7 x 8||PPI-ARH78||92.125||2340||93.625||2378||Add to Cart Add to RFQ|
|7 x 9||PPI-ARH79||97.375||2473||98.875||2511||Add to Cart Add to RFQ|
|8 x 8||PPI-ARH88||105.500||2680||107.000||2718||Add to Cart Add to RFQ|
|8 x 9||PPI-ARH89||111.500||2832||113.000||2870||Add to Cart Add to RFQ|
|9 x 8||PPI-ARH98||118.875||3019||120.375||3058||Add to Cart Add to RFQ|
|9 x 9||PPI-ARH99||125.625||3191||127.125||3229||Add to Cart Add to RFQ|
|10 x 8||PPI-ARH108||132.250||3359||133.750||3397||Add to Cart Add to RFQ|
|10 x 9||PPI-ARH109||139.750||3550||141.250||3588||Add to Cart Add to RFQ|
