Features: - Isolation valves situated between the pump and receiver - Simplex or Duplex custom control panel available - Single phase and three phase pumps available - Simplex and duplex pump setup - TEFC and ODP Motors available - Liquid Level gauge glass assembly - Thermometer Control Panel: - Simplex Panels . Square D NEMA rated starter . Hand Off Auto Switch . Overload and Single Phase Protection . Optional Fused Disconnect - Duplex Control Panel . Duplex Square D NEMA rated starters . Hand Off Auto Switch . Overload and Single Phase Protection . Optional Fused disconnects . Optional electronic alternation . Optional pilot running lights - Duplex Boiler Feed Panel . Duplex Square D NEMA rated starter . Hand Off Auto Switches . Pilot Running Lights . Fusible Disconnects . Terminal Strip . 110 V Power Source for Solenoid valve . Optional electronic alternation
Part # |
GPM - Discharge PSI (Ft. Hd.) |
Motor Power |
Discharge Size, in. |
Rec. Capacity |
Type |
Optional Control Panel |
||
---|---|---|---|---|---|---|---|---|
|

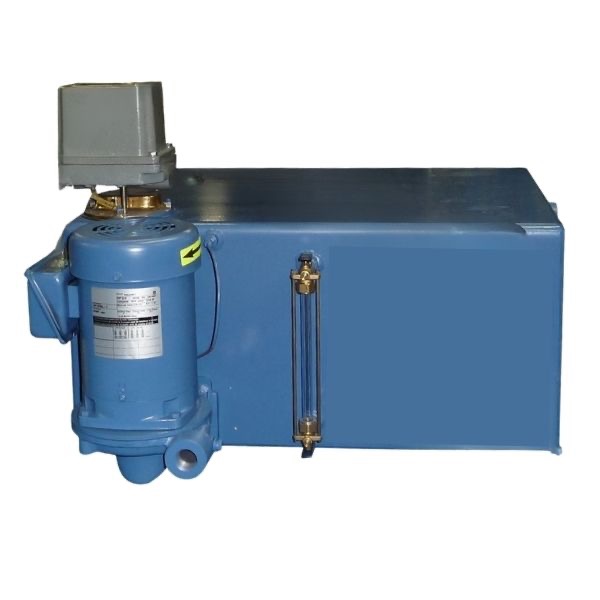

AFP-20S-C |
35 gpm - 10 PSI (23.1 Ft. Hd.) 28 gpm - 20 PSI (46.2 Ft. Hd.) 15 gpm - 30 PSI (69.3 Ft. Hd.) |
1/2 hp | 1 | 20 gal | Simplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20S-D |
54 gpm - 10 PSI (23.1 Ft. Hd.) 36 gpm - 20 PSI (46.2 Ft. Hd.) 27 gpm - 30 PSI (69.3 Ft. Hd.) 10 gpm - 40 PSI (92.4 Ft. Hd.) |
3/4 hp | 1 | 20 gal | Simplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20S-E |
58 gpm - 10 PSI (23.1 Ft. Hd.) 50 gpm - 20 PSI (46.2 Ft. Hd.) 40 gpm - 30 PSI (69.3 Ft. Hd.) 25 gpm - 40 PSI (92.4 Ft. Hd.) |
1 hp | 1 | 20 gal | Simplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20S-F |
69 gpm - 10 PSI (23.1 Ft. Hd.) 62 gpm - 20 PSI (46.2 Ft. Hd.) 50 gpm - 30 PSI (69.3 Ft. Hd.) 35 gpm - 40 PSI (92.4 Ft. Hd.) |
1 1/2 hp | 1 | 20 gal | Simplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20S-G |
82 gpm - 10 PSI (23.1 Ft. Hd.) 75 gpm - 20 PSI (46.2 Ft. Hd.) 64 gpm - 30 PSI (69.3 Ft. Hd.) 39 gpm - 40 PSI (92.4 Ft. Hd.) |
2 hp | 1 1/2 | 20 gal | Simplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|

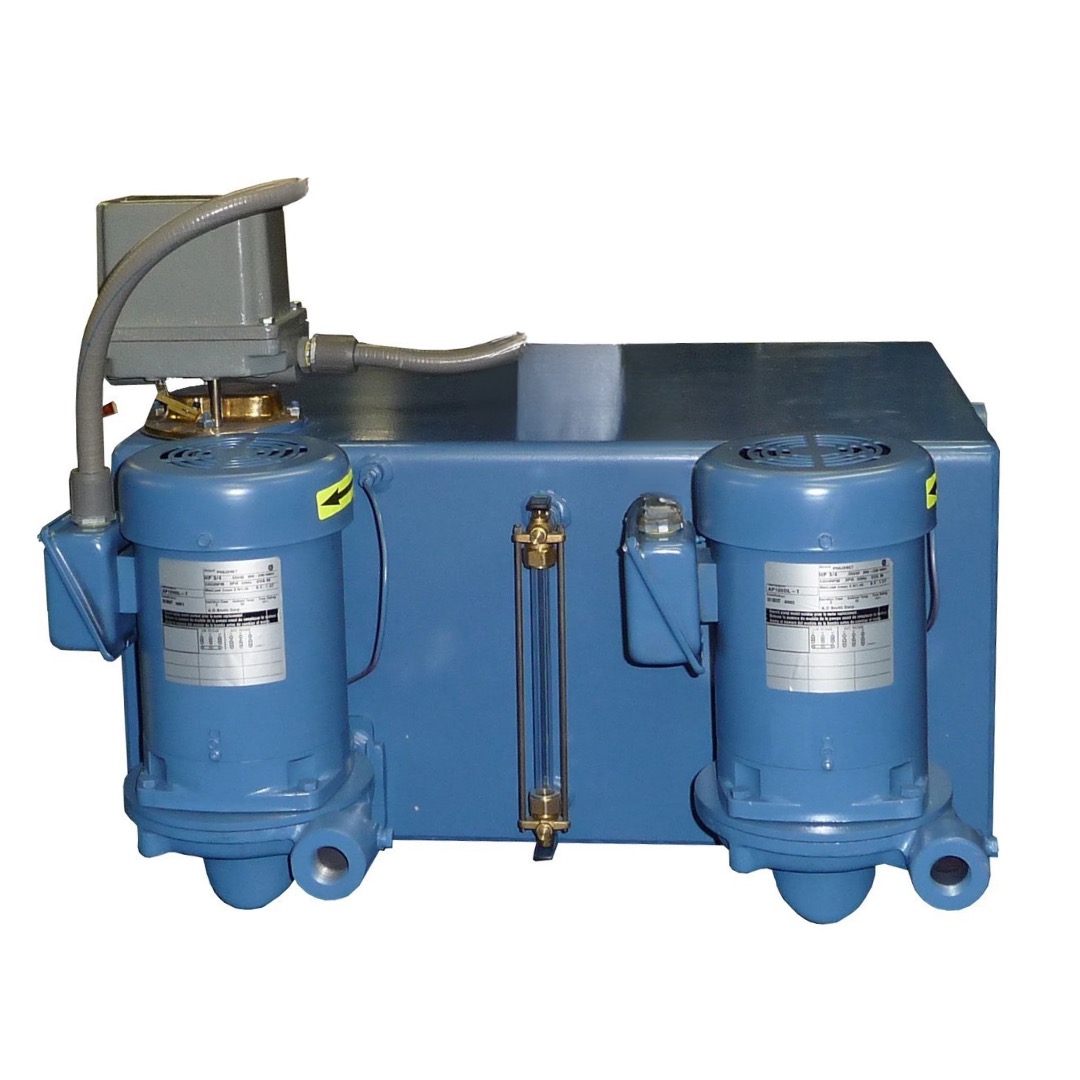

AFP-20DS-C |
35 gpm - 10 PSI (23.1 Ft. Hd.) 28 gpm - 20 PSI (46.2 Ft. Hd.) 15 gpm - 30 PSI (69.3 Ft. Hd.) |
1/2 hp | 1 | 20 gal | Duplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20DS-D |
54 gpm - 10 PSI (23.1 Ft. Hd.) 36 gpm - 20 PSI (46.2 Ft. Hd.) 27 gpm - 30 PSI (69.3 Ft. Hd.) 10 gpm - 40 PSI (92.4 Ft. Hd.) |
3/4 hp | 1 | 20 gal | Duplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20DS-E |
58 gpm - 10 PSI (23.1 Ft. Hd.) 50 gpm - 20 PSI (46.2 Ft. Hd.) 40 gpm - 30 PSI (69.3 Ft. Hd.) 25 gpm - 40 PSI (92.4 Ft. Hd.) |
1 hp | 1 | 20 gal | Duplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20DS-F |
69 gpm - 10 PSI (23.1 Ft. Hd.) 62 gpm - 20 PSI (46.2 Ft. Hd.) 50 gpm - 30 PSI (69.3 Ft. Hd.) 35 gpm - 40 PSI (92.4 Ft. Hd.) |
1 1/2 hp | 1 | 20 gal | Duplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20DS-G |
82 gpm - 10 PSI (23.1 Ft. Hd.) 75 gpm - 20 PSI (46.2 Ft. Hd.) 64 gpm - 30 PSI (69.3 Ft. Hd.) 39 gpm - 40 PSI (92.4 Ft. Hd.) |
2 hp | 1 1/2 | 20 gal | Duplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-20DS-H |
90 gpm - 10 PSI (23.1 Ft. Hd.) 82 gpm - 20 PSI (46.2 Ft. Hd.) 70 gpm - 30 PSI (69.3 Ft. Hd.) 56 gpm - 40 PSI (92.4 Ft. Hd.) |
2 1/2 hp | 1 1/2 | 20 gal | Duplex |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
