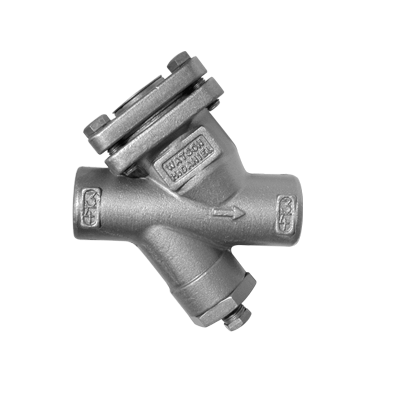

 Watson McDaniel WT3100 Steam Trap In Stock

Item Name: Watson McDaniel Series WT3100
Manufacturer:
Watson McDaniel
Description:

The Watson McDaniel WT3000 thermostatic steam trap is used for industrial process applications. Their compact size, all stainless steel construction, excellent air handling capability and wide operating pressure range make them a great choice for most process applications. Thermostatic traps are far superior to bucket traps and thermodynamic disc traps in their ability to remove air from the system.



Applications: The Disc Trap is designed to remove condensate and air automatically from steam lines. Freeze-proof design can be easily achieved by following the simple installation. Services Light Load Equipment | Small Dryers | High Pressure Drips | Turbine Drain Pressure / Temperature Rating Max Operating Pressure (PMO) - 675 PSI Max Operating Temperature (TMA) - 750°F Pressure / Temperature Rating Max Operating Pressure (PMO) - 675 PSI Max Operating Temperature (TMA) - 750°F Components and Materials 1 - Body - Stainless Steel, AISI 316L 2 - Cover - Stainless Steel, AISI 316L 3 - Cover Gasket* - Stainless Steel, AISI 316L 4 - Cover Bolts - Steel, ASTM A193 Gr B7, Nickel Plated 5 - Thermodynamic Capsule* Bonnet - Hardened, Stainless Steel, AISI 416 Disc - Hardened, Stainless Steel, AISI 420 Seat - Hardened, Stainless Steel, AISI 420 6 - Seat Gasket* - Stainless Steel, AISI 316 WT3100S Only 7 - Screen - 0.046" Perforated Hardened SS, AISI304 *Denotes Recommended Spare Parts Kit

Shipping Time: 1-3 Business Day
Complete Trap
Part # Size Connection Weight
WT3100-12NPT 1/2" NPT 4 Add to RFQ
WT3100-12SW 1/2" SW 4 Add to RFQ
WT3100-12F150 1/2" 150# Flg 6.5 Add to RFQ
WT3100-12F300 1/2" 300# Flg 7.5 Add to RFQ
WT3100-13NPT 3/4" NPT 4 Add to RFQ
WT3100-13SW 3/4" SW 4 Add to RFQ
WT3100-13F150 3/4" 150# Flg 7.5 Add to RFQ
WT3100-13F300 3/4" 300# Flg 9.5 Add to RFQ
Trap With Integral Strainer
Part # Size Connection Weight
WT3100S-12NPT 1/2" NPT 4 Add to RFQ
WT3100S-12SW 1/2" SW 4 Add to RFQ
WT3100S-12F150 1/2" 150# Flg 6.5 Add to RFQ
WT3100S-12F300 1/2" 300# Flg 7.5 Add to RFQ
WT3100S-13NPT 3/4" NPT 4 Add to RFQ
WT3100S-13SW 3/4" SW 4 Add to RFQ
WT3100S-13F150 3/4" 150# Flg 7.5 Add to RFQ
WT3100S-13F300 3/4" 300# Flg 9.5 Add to RFQ
Trap with Integral Strainer and Blowdown Valve
Part # Size Connection Weight
WT3100SB-12NPT 1/2" NPT 4.5 Add to RFQ
WT3100SB-12SW 1/2" SW 4.5 Add to RFQ
WT3100SB-12F150 1/2" 150# Flg 7 Add to RFQ
WT3100SB-12F300 1/2" 300# Flg 8 Add to RFQ
WT3100SB-13NPT 3/4" NPT 4.5 Add to RFQ
WT3100SB-13SW 3/4" SW 4.5 Add to RFQ
WT3100SB-13F150 3/4" 150# Flg 8 Add to RFQ
WT3100SB-13F300 3/4" 300# Flg 10 Add to RFQ
