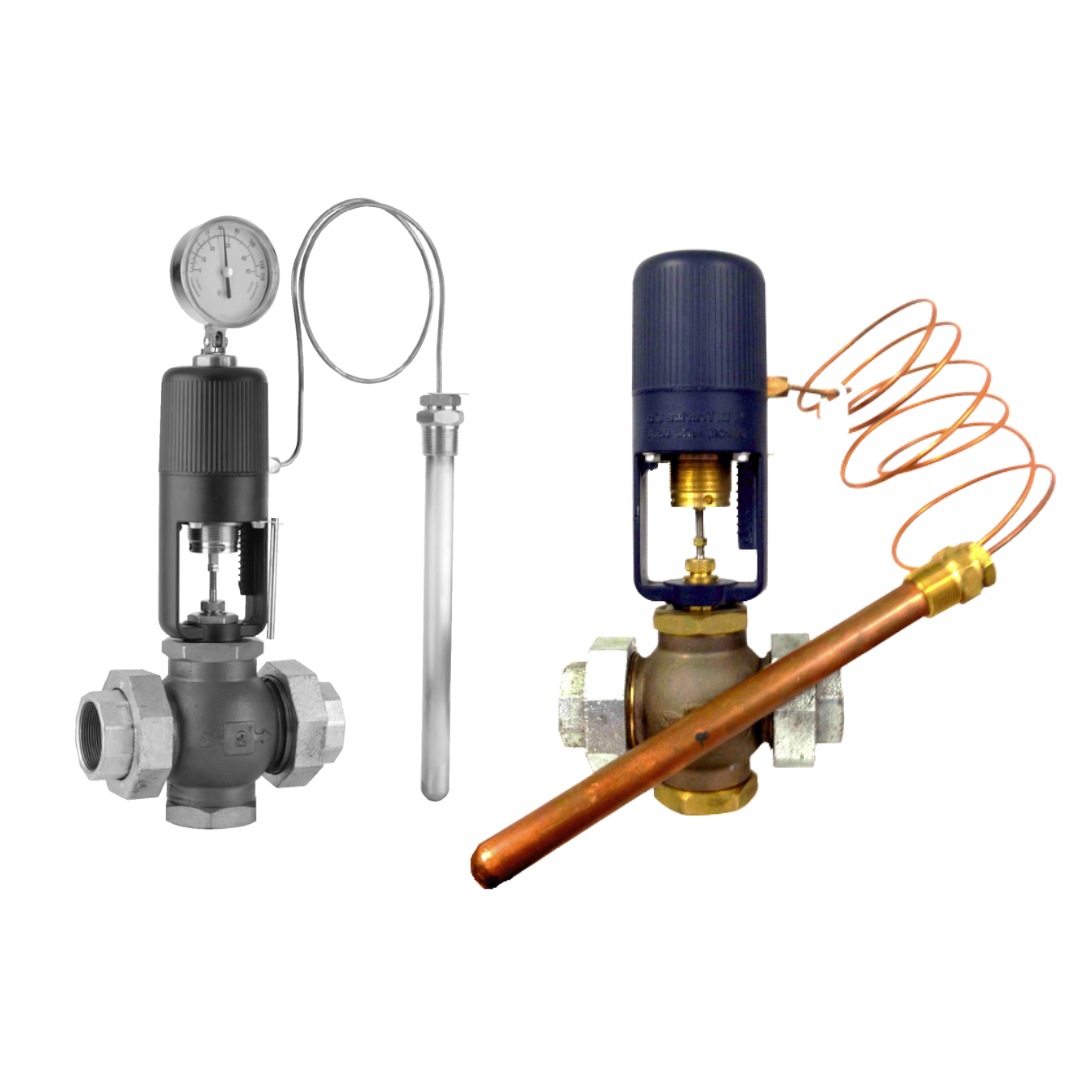

Temperature and Pressure Control Valves | Boiler Supplies Temperature Control & Regulating Valves Trerice 91000 Series Self-Operating Temperature Regulator (Non-Indicating)
The Trerice Series 91000 (Non-Indicating) Series Self-Operating Temperature Regulator is the preferred choice of original equipment manufacturers, mechanical contractors and specifying engineers. This regulator requires no external power source and is ideal for regulating the temperature of tanks, process streams and various industrial equipment. The actuator is noted for its rugged, die cast aluminum housing.
The Model 91000 (without indicating dial) features a lower profile and should be specified where space constraints may be an issue. Max Inlet Presures are 20-250 PSI. Please see below
| Part # |
Size Connection |
Maximum Inlet (psig) |
Cv Flow |
Weight (Lbs) |
Select Temperature Range Code Below |
Select Capillary Length Code Below |
|
|---|---|---|---|---|---|---|---|
| BSS-050 | 1/2" NPT | 250 | 2.8 | 3 | Add to RFQ | ||
| BSS-075 | 3/4" NPT | 140 | 5.6 | 4.9 | Add to RFQ | ||
| BSS-100 | 1" NPT | 80 | 8.4 | 6 | Add to RFQ | ||
| BSS-125 | 1-1/4" NPT | 50 | 15 | 9.7 | Add to RFQ | ||
| BSS-150 | 1-1/2" NPT | 35 | 21 | 10.8 | Add to RFQ | ||
| BSS-200 | 2" NPT | 20 | 33 | 16.3 | Add to RFQ |
|
Temperature Range Code |
Nominal Range |
Temperature Range Code |
Nominal Range |
Temperature Range Code |
Nominal Range |
|---|---|---|---|---|---|
| R01 | 20° - 70°F & -10° - 20°C | R05 | 75° - 165°F & 25° - 70°C | R09 | 200° - 280°F & 95° - 135°C |
| R02 | 40° - 90°F & 5° - 30°C | R06 | 105° - 195°F & 40° - 90°C | R10 | 225° - 315°F & 110° - 155°C |
| R03 | 30° - 115° & 0° - 45°C | R07 | 125° - 215°F & 55° - 100°C | R11 | 255° - 370°F & 125° - 185°C |
| R04 | 50° - 140°F & 10° - 60°C | R08 | 155° - 250°F & 70° - 120°C | R12 | 295° - 420°F & 145° - 215°C |
|
Capillary Length Code |
Length |
|---|---|
| 08 | 8 Feet |
| 12 | 12 Feet |
| 16 | 12 Feet |
| 20 | 20 Feet |
|
Thermowell Model Code |
Material |
|---|---|
| W01 | Brass |
| W02 | Steel |
| W03 | 316SS |
The Model 91000 (without indicating dial) features a lower profile and should be specified where space constraints may be an issue. Max Inlet Pressure is 250 PSI. Please see below
| Part # |
Size Connection |
Maximum Inlet (psig) |
Cv Flow |
Weight (Lbs) |
Select Temperature Range Code Below |
Select Capillary Length Code Below |
|
|---|---|---|---|---|---|---|---|
| BDS-075 | 3/4" NPT | 250 | 8 | 5 Lbs | Add to RFQ | ||
| BDS-100 | 1" NPT | 250 | 12 | 6 Lbs | Add to RFQ | ||
| BDS-125 | 1-1/4" NPT | 250 | 21 | 10 Lbs | Add to RFQ | ||
| BDS-150 | 1-1/2" NPT | 250 | 30 | 11 Lbs | Add to RFQ | ||
| BDS-200 | 2" NPT | 250 | 47 | 17 Lbs | Add to RFQ |
|
Temperature Range Code |
Nominal Range |
Temperature Range Code |
Nominal Range |
Temperature Range Code |
Nominal Range |
|---|---|---|---|---|---|
| R01 | 20° - 70°F & -10° - 20°C | R05 | 75° - 165°F & 25° - 70°C | R09 | 200° - 280°F & 95° - 135°C |
| R02 | 40° - 90°F & 5° - 30°C | R06 | 105° - 195°F & 40° - 90°C | R10 | 225° - 315°F & 110° - 155°C |
| R03 | 30° - 115° & 0° - 45°C | R07 | 125° - 215°F & 55° - 100°C | R11 | 255° - 370°F & 125° - 185°C |
| R04 | 50° - 140°F & 10° - 60°C | R08 | 155° - 250°F & 70° - 120°C | R12 | 295° - 420°F & 145° - 215°C |
|
Capillary Length Code |
Length |
|---|---|
| 08 | 8 Feet |
| 12 | 12 Feet |
| 16 | 12 Feet |
| 20 | 20 Feet |
|
Thermowell Model Code |
Material |
|---|---|
| W01 | Brass |
| W02 | Steel |
| W03 | 316SS |
