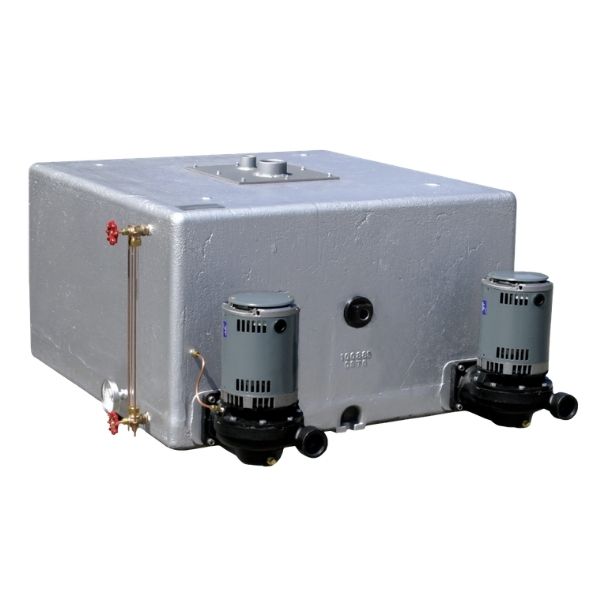

Sterling 4200 Series Cast Iron Condensate Return In Stock

Manufacturer:
Sterling
Description:

Motors : Heavy-duty, ball bearing, close-coupled pump motors with stainless steel shaft. 3450 RPM for greater efficiency and more economical operation. Float Switch : Two-pole, drip proof case, stainless steel float and float rod, double-break silver-to-silver contacts. Float travel adjustment is easy, visible and accessible. Automatic Venting : Provides for efficient operation and long life by venting air and flushing seal area. Large Tanks : Plenty of capacity for maximum rating of pump. Return inlet is low. Occupies a minimum of floor space. Centrifugal Pump: Offers a wide range of pressures and GPM. Unique design features provide for ease of servicing. Impeller: Made of brass for long life. Efficient design provides maximum capacity, minimum motor load. “SterlSeal” Pump Seal (A) : Features the ultimate in ceramic technology for exceptionally long life. Because the seal runs on the bronze impeller hub, the motor shaft is literally outside the pump. Consequently, the shaft is not exposed to corrosion by condensate. Rated for temperatures up to 250°F. Isolation Valve (B) : Optional on 4200 Series Condensate Pumps

Item Name: Sterling 4200 Series Condensate Return
Description:

Special Options: • Isolation valves • Electric alternator for duplex units • Thermometer • Solenoid operated make-up water valve with reverse acting float switch • Special motor construction, such as totally enclosed and explosion proof, is available • Magnetic starters with H-O-A selector switches • 1750 RPM motors, larger pumping capacities and higher discharge pressures - consult factory • Custom sized tanks available • Complete NEMA 12 Control Panel Features: • Heavy gauge steel receivers • Simplex or duplex construction • Bronze fitted centrifugal pumps • Energy efficient 3450 RPM motors • Automatic venting • "Sterl-Seal" ceramic pump seal • Heavy-duty make-up water valve • Wide range of options and accessories

Lead Time: Expedite Quick Ship Times Available upon Request with Standard Shipping 3 to 4 Weeks.
Specifications
Item # Rec. Capacity Type Capacity (EDR), ft² Dis. Pressure, psi. Pump Capacity Motor Power Shipping Weight, lbs. Inlet, in.
4222-G 6 gal Simplex 2000 20 3 gpm 1/3 hp 150 2 Add to RFQ
4224-G 6 gal Simplex 4000 20 6 gpm 1/3 hp 150 2 Add to RFQ
4226-G 15 gal Simplex 6000 20 9 gpm 1/3 hp 260 2 Add to RFQ
4228-G 15 gal Simplex 8000 20 12 gpm 1/3 hp 260 2 Add to RFQ
42210-G 15 gal Simplex 10000 20 15 gpm 1/2 hp 260 2 Add to RFQ
42215-G 24 gal Simplex 15000 20 22.5 gpm 1/2 hp 300 2 Add to RFQ
42220-G 36 gal Simplex 20000 20 30 gpm 3/4 hp 410 3 Add to RFQ
4226-GD 15 gal Duplex 6000 20 9 gpm 1/3 hp 295 2 Add to RFQ
4228-GD 15 gal Duplex 8000 20 12 gpm 1/3 hp 295 2 Add to RFQ
42210-GD 15 gal Duplex 10000 20 15 gpm 1/2 hp 295 2 Add to RFQ
42215-GD 24 gal Duplex 15000 20 22.5 gpm 1/2 hp 335 2 Add to RFQ
42220-GD 36 gal Duplex 20000 20 30 gpm 3/4 hp 445 3 Add to RFQ
42225-J 36 gal Simplex 25000 20 37.5 gpm 3/4 hp 350 3 Add to RFQ
42230-J 36 gal Simplex 30000 20 45 gpm 1 hp 355 3 Add to RFQ
42240-J 50 gal Simplex 40000 20 60 gpm 1 1/2 hp 420 Add to RFQ
42250-J 50 gal Simplex 50000 20 75 gpm 2 hp 425 Add to RFQ
42225-JD 36 gal Duplex 25000 20 37.5 gpm 3/4 hp 420 3 Add to RFQ
42230-JD 36 gal Duplex 30000 20 45 gpm 1 hp 430 3 Add to RFQ
42240-JD 50 gal Duplex 40000 20 60 gpm 1 1/2 hp 500 Add to RFQ
42250-JD 50 gal Duplex 50000 20 75 gpm 2 hp 510 Add to RFQ
4232-J 6 gal Simplex 2000 30 3 gpm 1/2 hp 165 2 Add to RFQ
4234-J 6 gal Simplex 4000 30 6 gpm 1/2 hp 165 2 Add to RFQ
4236-J 15 gal Simplex 6000 30 9 gpm 1/2 hp 295 2 Add to RFQ
4238-J 15 gal Simplex 8000 30 12 gpm 1/2 hp 295 2 Add to RFQ
42310-J 15 gal Simplex 10000 30 15 gpm 3/4 hp 300 2 Add to RFQ
42315-J 24 gal Simplex 15000 30 22.5 gpm 1 hp 305 2 Add to RFQ
42320-J 36 gal Simplex 20000 30 30 gpm 1 hp 355 3 Add to RFQ
42325-J 36 gal Simplex 25000 30 37.5 gpm 1 hp 355 3 Add to RFQ
42330-J 36 gal Simplex 30000 30 45 gpm 1 1/2 hp 360 3 Add to RFQ
42340-J 50 gal Simplex 40000 30 60 gpm 2 hp 425 Add to RFQ
42350-J 50 gal Simplex 50000 30 75 gpm 3 hp 435 Add to RFQ
4236-JD 15 gal Duplex 6000 30 9 gpm 1/2 hp 360 2 Add to RFQ
4238-JD 15 gal Duplex 8000 30 12 gpm 1/2 hp 360 2 Add to RFQ
42310-JD 15 gal Duplex 10000 30 15 gpm 3/4 hp 365 2 Add to RFQ
42315-JD 24 gal Duplex 15000 30 22.5 gpm 1 hp 380 2 Add to RFQ
42320-JD 36 gal Duplex 20000 30 30 gpm 1 hp 430 3 Add to RFQ
42325-JD 36 gal Duplex 25000 30 37.5 gpm 1 hp 430 3 Add to RFQ
42330-JD 36 gal Duplex 30000 30 45 gpm 1 1/2 hp 440 3 Add to RFQ
42340-JD 50 gal Duplex 40000 30 60 gpm 2 hp 510 Add to RFQ
42350-JD 50 gal Duplex 50000 30 75 gpm 3 hp 525 Add to RFQ
4242-J 6 gal Simplex 2000 40 3 gpm 1 hp 170 2 Add to RFQ
4244-J 6 gal Simplex 4000 40 6 gpm 1 hp 170 2 Add to RFQ
4246-J 15 gal Simplex 6000 40 9 gpm 1 hp 295 2 Add to RFQ
4248-J 15 gal Simplex 8000 40 12 gpm 1 hp 295 2 Add to RFQ
42410-J 15 gal Simplex 10000 40 15 gpm 1 hp 295 2 Add to RFQ
42415-J 24 gal Simplex 15000 40 22.5 gpm 1 1/2 hp 310 2 Add to RFQ
42420-J 36 gal Simplex 20000 40 30 gpm 1 1/2 hp 360 3 Add to RFQ
42425-J 36 gal Simplex 25000 40 37.5 gpm 1 1/2 hp 360 3 Add to RFQ
42430-J 36 gal Simplex 30000 40 45 gpm 2 hp 365 3 Add to RFQ
42440-J 50 gal Simplex 40000 40 60 gpm 2 hp 425 Add to RFQ
42450-J 50 gal Simplex 50000 40 75 gpm 3 hp 435 Add to RFQ
4246-JD 15 gal Duplex 6000 40 9 gpm 1 hp 360 2 Add to RFQ
4248-JD 15 gal Duplex 8000 40 12 gpm 1 hp 360 2 Add to RFQ
42410-JD 15 gal Duplex 10000 40 15 gpm 1 hp 360 2 Add to RFQ
42415-JD 24 gal Duplex 15000 40 22.5 gpm 1 1/2 hp 390 2 Add to RFQ
42420-JD 36 gal Duplex 20000 40 30 gpm 1 1/2 hp 440 3 Add to RFQ
42425-JD 36 gal Duplex 25000 40 37.5 gpm 1 1/2 hp 440 3 Add to RFQ
42430-JD 36 gal Duplex 30000 40 45 gpm 2 hp 450 3 Add to RFQ
42440-JD 50 gal Duplex 40000 40 60 gpm 2 hp 510 Add to RFQ
42450-JD 50 gal Duplex 50000 40 75 gpm 3 hp 525 Add to RFQ
4252-J 6 gal Simplex 2000 50 3 gpm 2 hp 175 2 Add to RFQ
4254-J 6 gal Simplex 4000 50 6 gpm 2 hp 175 2 Add to RFQ
4256-J 15 gal Simplex 6000 50 9 gpm 2 hp 315 2 Add to RFQ
4258-J 15 gal Simplex 8000 50 12 gpm 2 hp 315 2 Add to RFQ
42510-J 15 gal Simplex 10000 50 15 gpm 2 hp 315 2 Add to RFQ
42515-J 24 gal Simplex 15000 50 22.5 gpm 2 hp 330 2 Add to RFQ
42520-J 36 gal Simplex 20000 50 30 gpm 3 hp 370 3 Add to RFQ
42525-J 36 gal Simplex 25000 50 37.5 gpm 3 hp 370 3 Add to RFQ
42530-J 36 gal Simplex 30000 50 45 gpm 3 hp 370 3 Add to RFQ
42540-J 50 gal Simplex 40000 50 60 gpm 5 hp 445 Add to RFQ
42550-J 50 gal Simplex 50000 50 75 gpm 5 hp 445 Add to RFQ
4256-JD 15 gal Duplex 6000 50 9 gpm 2 hp 395 2 Add to RFQ
4258-JD 15 gal Duplex 8000 50 12 gpm 2 hp 395 2 Add to RFQ
42510-JD 15 gal Duplex 10000 50 15 gpm 2 hp 395 2 Add to RFQ
42515-JD 24 gal Duplex 15000 50 22.5 gpm 2 hp 415 2 Add to RFQ
42520-JD 36 gal Duplex 20000 50 30 gpm 3 hp 460 3 Add to RFQ
42525-JD 36 gal Duplex 25000 50 37.5 gpm 3 hp 460 3 Add to RFQ
42530-JD 36 gal Duplex 30000 50 45 gpm 3 hp 460 3 Add to RFQ
42540-JD 50 gal Duplex 40000 50 60 gpm 5 hp 535 Add to RFQ
42550-JD 50 gal Duplex 50000 50 75 gpm 5 hp 535 Add to RFQ
