Sterling 4100 Series Carbon Steel Condensate Return In Stock

Manufacturer:
Sterling
Description:

Motors: Heavy-duty, ball bearing, close-coupled pump motors with stainless steel shaft. 3450 RPM for greater efficiency and more economical operation. Float Switch: Two-pole, drip proof case, stainless steel float and float rod, double-break silver-to-silver contacts. Float travel adjustment is easy, visible and accessible. Automatic Venting: Provides for efficient operation and long life by venting air and flushing seal area. Large Tanks: Plenty of capacity for maximum rating of pump. Return inlet is low. Occupies a minimum of floor space. Centrifugal Pump: Offers a wide range of pressures and GPM. Unique design features provide for ease of servicing. Impeller: Made of brass for long life. Efficient design provides maximum capacity, minimum motor load. “SterlSeal” Pump Seal (A): Features the ultimate in ceramic technology for exceptionally long life. Because the seal runs on the bronze impeller hub, the motor shaft is literally outside the pump. Consequently, the shaft is not exposed to corrosion by condensate. Rated for temperatures up to 250°F. Isolation Valve (B): Optional on 4100 Series Condensate Pumps Sterlco® Condensate Return Pumps set new standards of performance. Reliable and efficient, each unit features heavy gauge, 3/16" steel receivers for long operating life. In addition, 3450 RPM motors assure maximum efficiency while maintaining minimum motor horsepower. Available in a wide range of sizes, these U.S. made pumps have just the right accessories and options to meet your unique needs.

Item Name: Sterling 4100 Series Condensate Return
Description:

Special Options:

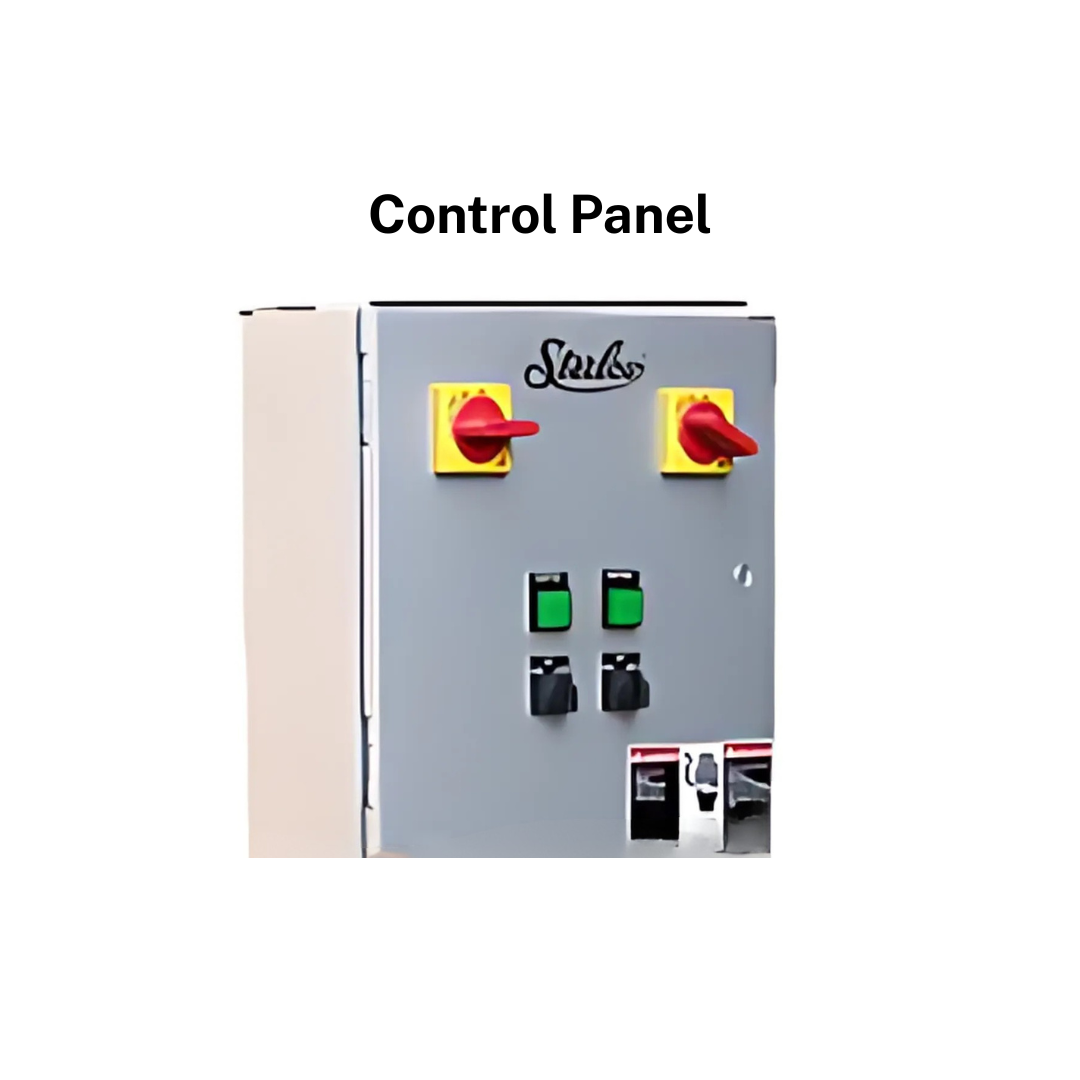

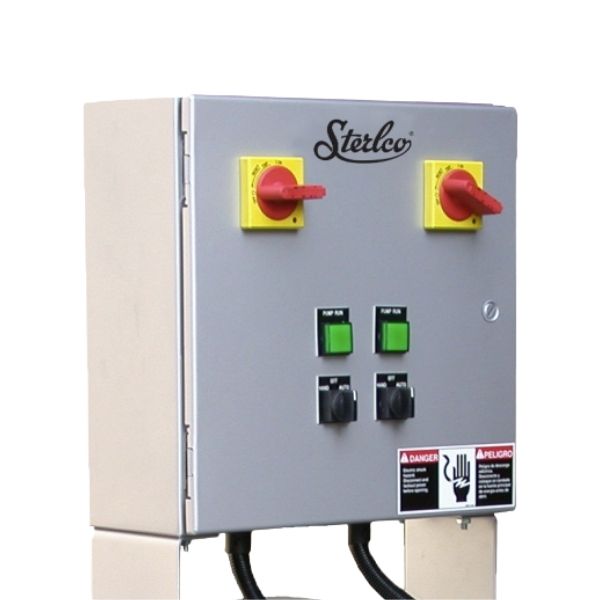

• Isolation valves • Electric alternator for duplex units • Thermometer • Solenoid operated make-up water valve with reverse acting float switch • Special motor construction, such as totally enclosed and explosion proof, is available • Magnetic starters with H-O-A selector switches • 1750 RPM motors, larger pumping capacities and higher discharge pressures - consult factory • Custom sized tanks available • Complete NEMA 12 Control Panel Features: • Heavy gauge steel receivers • Simplex or duplex construction • Bronze fitted centrifugal pumps • Energy efficient 3450 RPM motors • Automatic venting • "Sterl-Seal" ceramic pump seal • Heavy-duty make-up water valve • Wide range of options and accessories

Lead Time: Expedite Quick Ship Times Available upon Request with Standard Shipping 3 to 4 Weeks.
Specifications
Item # Type Capacity (EDR), ft² Dis. Pressure, psi. Pump Capacity Motor Power Rec. Capacity Shipping Weight, lbs. Inlet, in.
4028-G Simplex 8000 20 12 gpm 1/3 hp 8 gal 90 2 Add to RFQ Dimensional Chart
4122-G Simplex 2000 20 3 gpm 1/3 hp 15 gal 125 2 Add to RFQ Dimensional Chart
4124-G Simplex 4000 20 6 gpm 1/3 hp 15 gal 125 2 Add to RFQ Dimensional Chart
4126-G Simplex 6000 20 9 gpm 1/3 hp 15 gal 125 2 Add to RFQ Dimensional Chart
4128-G Simplex 8000 20 12 gpm 1/3 hp 15 gal 125 2 Add to RFQ Dimensional Chart
4122-GD Duplex 2000 20 3 gpm 1/3 hp 15 gal 185 2 Add to RFQ Dimensional Chart
4124-GD Duplex 4000 20 6 gpm 1/3 hp 15 gal 185 2 Add to RFQ Dimensional Chart
4126-GD Duplex 6000 20 9 gpm 1/3 hp 15 gal 185 2 Add to RFQ Dimensional Chart
4128-GD Duplex 8000 20 12 gpm 1/3 hp 15 gal 185 2 Add to RFQ Dimensional Chart
41210-G Simplex 10000 20 15 gpm 1/2 hp 30 gal 190 2 Add to RFQ Dimensional Chart
41215-G Simplex 15000 20 22.5 gpm 1/2 hp 30 gal 190 2 Add to RFQ Dimensional Chart
41220-G Simplex 20000 20 30 gpm 3/4 hp 30 gal 200 2 Add to RFQ Dimensional Chart
41210-GD Duplex 10000 20 15 gpm 1/2 hp 30 gal 240 2 Add to RFQ Dimensional Chart
41215-GD Duplex 15000 20 22.5 gpm 1/2 hp 30 gal 240 2 Add to RFQ Dimensional Chart
41220-GD Duplex 20000 20 30 gpm 3/4 hp 30 gal 250 2 Add to RFQ Dimensional Chart
41225-J Simplex 25000 20 37.5 gpm 3/4 hp 45 gal 285 2.5 Add to RFQ Dimensional Chart
41230-J Simplex 30000 20 45 gpm 1 hp 45 gal 285 2.5 Add to RFQ Dimensional Chart
41225-JD Duplex 25000 20 37.5 gpm 3/4 hp 45 gal 350 2.5 Add to RFQ Dimensional Chart
41230-JD Duplex 30000 20 45 gpm 1 hp 45 gal 350 2.5 Add to RFQ Dimensional Chart
41240-J Simplex 40000 20 60 gpm 1 1/2 hp 60 gal 335 2.5 Add to RFQ Dimensional Chart
41240-JD Duplex 40000 20 60 gpm 1 1/2 hp 60 gal 405 2.5 Add to RFQ Dimensional Chart
41250-J Simplex 50000 20 75 gpm 2 hp 95 gal 385 2.5 Add to RFQ Dimensional Chart
41250-JD Duplex 50000 20 75 gpm 2 hp 95 gal 460 2.5 Add to RFQ Dimensional Chart
4132-J Simplex 2000 30 3 gpm 1/2 hp 15 gal 180 2 Add to RFQ Dimensional Chart
4134-J Simplex 4000 30 6 gpm 1/2 hp 15 gal 180 2 Add to RFQ Dimensional Chart
4136-J Simplex 6000 30 9 gpm 1/2 hp 15 gal 180 2 Add to RFQ Dimensional Chart
4138-J Simplex 8000 30 12 gpm 1/2 hp 15 gal 180 2 Add to RFQ Dimensional Chart
41310-J Simplex 10000 30 15 gpm 3/4 hp 15 gal 185 2 Add to RFQ Dimensional Chart
4132-JD Duplex 2000 30 3 gpm 1/2 hp 15 gal 250 2 Add to RFQ Dimensional Chart
4134-JD Duplex 4000 30 6 gpm 1/2 hp 15 gal 250 2 Add to RFQ Dimensional Chart
4136-JD Duplex 6000 30 9 gpm 1/2 hp 15 gal 250 2 Add to RFQ Dimensional Chart
4138-JD Duplex 8000 30 12 gpm 1/2 hp 15 gal 250 2 Add to RFQ Dimensional Chart
41310-JD Duplex 10000 30 15 gpm 3/4 hp 15 gal 255 2 Add to RFQ Dimensional Chart
41315-J Simplex 15000 30 22.5 gpm 1 hp 30 gal 230 2 Add to RFQ Dimensional Chart
41320-J Simplex 20000 30 30 gpm 1 hp 30 gal 230 2 Add to RFQ Dimensional Chart
41315-JD Duplex 15000 30 22.5 gpm 1 hp 30 gal 300 2 Add to RFQ Dimensional Chart
41320-JD Duplex 20000 30 30 gpm 1 hp 30 gal 300 2 Add to RFQ Dimensional Chart
41325-J Simplex 25000 30 37.5 gpm 1 hp 45 gal 285 2.5 Add to RFQ Dimensional Chart
41330-J Simplex 30000 30 45 gpm 1 1/2 hp 45 gal 290 2.5 Add to RFQ Dimensional Chart
41325-JD Duplex 25000 30 37.5 gpm 1 hp 45 gal 350 2.5 Add to RFQ Dimensional Chart
41330-JD Duplex 30000 30 45 gpm 1 1/2 hp 45 gal 355 2.5 Add to RFQ Dimensional Chart
41340-J Simplex 40000 30 60 gpm 2 hp 60 gal 340 2.5 Add to RFQ Dimensional Chart
41340-JD Duplex 40000 30 60 gpm 2 hp 60 gal 410 2.5 Add to RFQ Dimensional Chart
41350-J Simplex 50000 30 75 gpm 3 hp 95 gal 395 2.5 Add to RFQ Dimensional Chart
41350-JD Duplex 50000 30 75 gpm 3 hp 95 gal 470 2.5 Add to RFQ Dimensional Chart
4142-J Simplex 2000 40 3 gpm 1 hp 15 gal 190 2 Add to RFQ Dimensional Chart
4144-J Simplex 4000 40 6 gpm 1 hp 15 gal 190 2 Add to RFQ Dimensional Chart
4146-J Simplex 6000 40 9 gpm 1 hp 15 gal 190 2 Add to RFQ Dimensional Chart
4148-J Simplex 8000 40 12 gpm 1 hp 15 gal 190 2 Add to RFQ Dimensional Chart
41410-J Simplex 10000 40 15 gpm 1 hp 15 gal 190 2 Add to RFQ Dimensional Chart
4142-JD Duplex 2000 40 3 gpm 1 hp 15 gal 270 2 Add to RFQ Dimensional Chart
4144-JD Duplex 4000 40 6 gpm 1 hp 15 gal 270 2 Add to RFQ Dimensional Chart
4146-JD Duplex 6000 40 9 gpm 1 hp 15 gal 270 2 Add to RFQ Dimensional Chart
4148-JD Duplex 8000 40 12 gpm 1 hp 15 gal 270 2 Add to RFQ Dimensional Chart
41410-JD Duplex 10000 40 15 gpm 1 hp 15 gal 270 2 Add to RFQ Dimensional Chart
41415-J Simplex 15000 40 22.5 gpm 1 1/2 hp 30 gal 240 2 Add to RFQ Dimensional Chart
41420-J Simplex 20000 40 30 gpm 1 1/2 hp 30 gal 240 2 Add to RFQ Dimensional Chart
41415-JD Duplex 15000 40 22.5 gpm 1 1/2 hp 30 gal 310 2 Add to RFQ Dimensional Chart
41420-JD Duplex 20000 40 30 gpm 1 1/2 hp 30 gal 310 2 Add to RFQ Dimensional Chart
41425-J Simplex 25000 40 37.5 gpm 1/2 hp 45 gal 290 2.5 Add to RFQ Dimensional Chart
41430-J Simplex 30000 40 45 gpm 2 hp 45 gal 295 2.5 Add to RFQ Dimensional Chart
41425-JD Duplex 25000 40 37.5 gpm 1/2 hp 45 gal 355 2.5 Add to RFQ Dimensional Chart
41430-JD Duplex 30000 40 45 gpm 2 hp 45 gal 360 2.5 Add to RFQ Dimensional Chart
41440-J Simplex 40000 40 60 gpm 2 hp 60 gal 340 2.5 Add to RFQ Dimensional Chart
41440-JD Duplex 40000 40 60 gpm 2 hp 60 gal 410 2.5 Add to RFQ Dimensional Chart
41450-J Simplex 50000 40 75 gpm 3 hp 95 gal 395 2.5 Add to RFQ Dimensional Chart
41450-JD Duplex 50000 40 75 gpm 3 hp 95 gal 470 2.5 Add to RFQ Dimensional Chart
4152-J Simplex 2000 50 3 gpm 2 hp 15 gal 195 2 Add to RFQ Dimensional Chart
4154-J Simplex 4000 50 6 gpm 2 hp 15 gal 195 2 Add to RFQ Dimensional Chart
4156-J Simplex 6000 50 9 gpm 2 hp 15 gal 195 2 Add to RFQ Dimensional Chart
4158-J Simplex 8000 50 12 gpm 2 hp 15 gal 195 2 Add to RFQ Dimensional Chart
41510-J Simplex 10000 50 15 gpm 2 hp 15 gal 195 2 Add to RFQ Dimensional Chart
4152-JD Duplex 2000 50 3 gpm 2 hp 15 gal 275 2 Add to RFQ Dimensional Chart
4154-JD Duplex 4000 50 6 gpm 2 hp 15 gal 275 2 Add to RFQ Dimensional Chart
4156-JD Duplex 6000 50 9 gpm 2 hp 15 gal 275 2 Add to RFQ Dimensional Chart
4158-JD Duplex 8000 50 12 gpm 2 hp 15 gal 275 2 Add to RFQ Dimensional Chart
41510-JD Duplex 10000 50 15 gpm 2 hp 15 gal 275 2 Add to RFQ Dimensional Chart
41515-J Simplex 15000 50 22.5 gpm 2 hp 30 gal 245 2 Add to RFQ Dimensional Chart
41520-J Simplex 20000 50 30 gpm 3 hp 30 gal 255 2 Add to RFQ Dimensional Chart
41515-JD Duplex 15000 50 22.5 gpm 2 hp 30 gal 320 2 Add to RFQ Dimensional Chart
41520-JD Duplex 20000 50 30 gpm 3 hp 30 gal 330 2 Add to RFQ Dimensional Chart
41525-J Simplex 25000 50 37.5 gpm 3 hp 45 gal 305 2.5 Add to RFQ Dimensional Chart
41530-J Simplex 30000 50 45 gpm 3 hp 45 gal 305 2.5 Add to RFQ Dimensional Chart
41525-JD Duplex 25000 50 37.5 gpm 3 hp 45 gal 385 2.5 Add to RFQ Dimensional Chart
41530-JD Duplex 30000 50 45 gpm 3 hp 45 gal 385 2.5 Add to RFQ Dimensional Chart
41540-J Simplex 40000 50 60 gpm 5 hp 60 gal 370 2.5 Add to RFQ Dimensional Chart
41540-JD Duplex 40000 50 60 gpm 5 hp 60 gal 500 2.5 Add to RFQ Dimensional Chart
41550-J Simplex 50000 50 75 gpm 5 hp 95 gal 430 2.5 Add to RFQ Dimensional Chart
41550-JD Duplex 50000 50 75 gpm 5 hp 95 gal 560 2.5 Add to RFQ Dimensional Chart
