Cleaver Brooks® Boiler Parts - Fireside & Waterside Kits | Boiler Supplies 125-200 HP Boilers, 60" Dia. "LE" Fireside Kit to fit Cleaver Brooks
NOTICE: Our fireside and waterside kits fit Cleaver Brooks® boilers and are comparable replacement gasket kits. They are not manufactured by Cleaver Brooks®. Boiler Supplies is not affiliated with Cleaver Brooks® in any way.

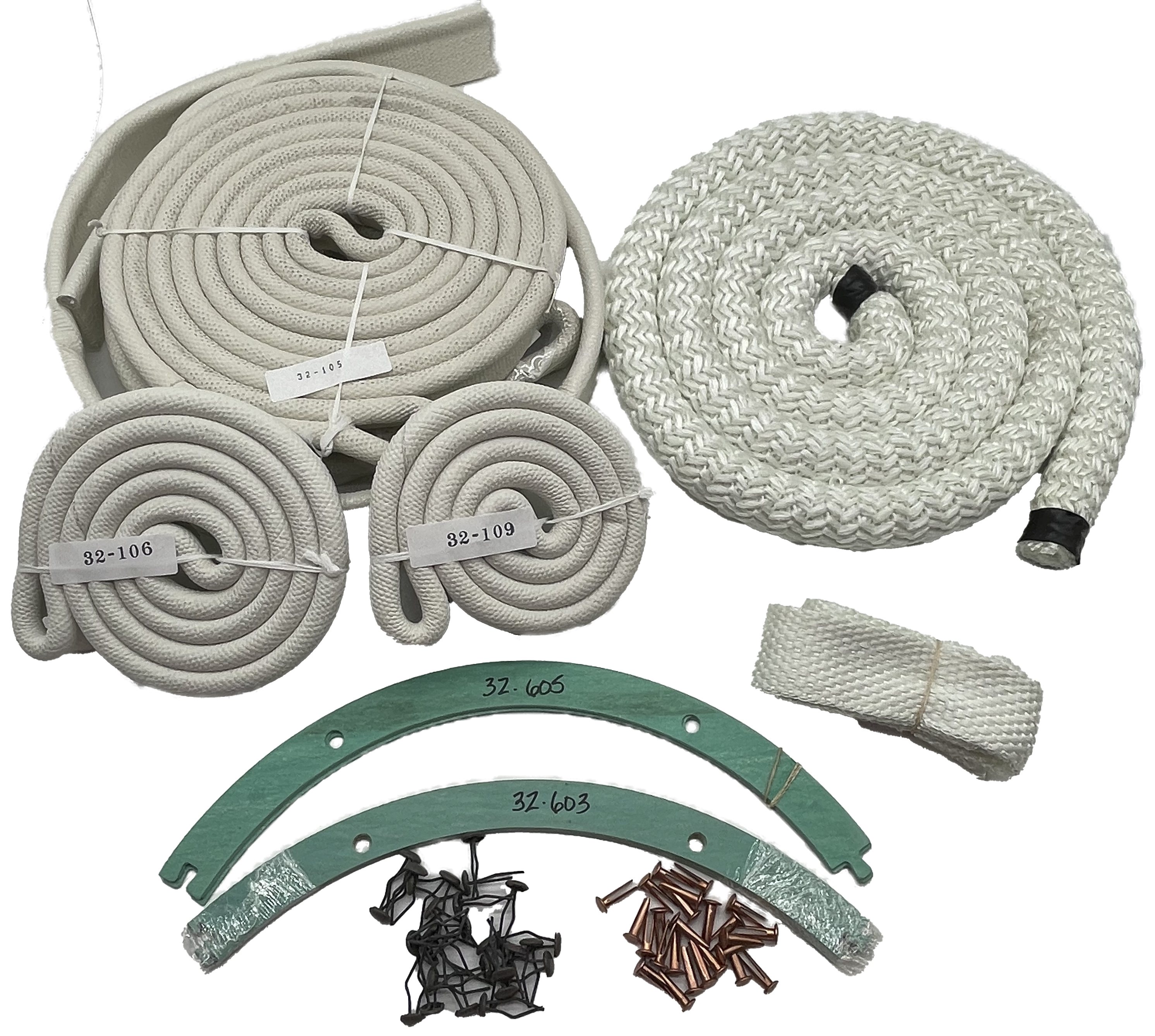

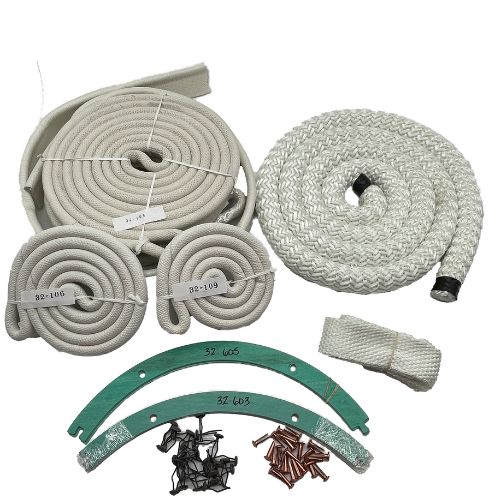

CB Fireside kits include a head gasket, dry oven gasket, burner housing to inner door, burner housing to inner head, burner drawer to housing, fasteners, rivets, front baffle tadpole, rope, ceramic strips, and fiberglass tape. These kits are truly all-in-one replacements! Some kits may vary depending on size or boiler horsepower, but see the descriptions below to see what is included in the fireside kit for your boiler.
| Part # | Quantity | Description |
|---|---|---|
| 32-105 | 2 | Head Gasket |
| 32-106 | 1 | Dry Oven Gasket |
| 32-109 | 1 | Burner Housing to Inner Door |
| 32-603 | 1 | Burner Housing to Inner Head |
| 32-605 | 1 | Burner Drawer to Housing |
| 841-507 | 75 | Fastener |
| 841-551 | 25 | Rivet |
| 853-994 | 62" | Front Baffle Tadpole |
| 853-1036 | 60" | 1-1/2" Rope (Rear Baffle) |
| 872-747 | 1 | 2" x 1" x 25' Ceramic Strip (Front Baffle Seal) |
| 872-748 | 1 | 2" x 1/2" x 25' Ceramic Strip (Rear Head to Tubesheet) |
| 872-749 | 1 | 2" x 1/2" x 25' Ceramic Strip (Rear Baffle) |
| 904-012 | 5' | 2 x 1/8" Fiberglass Tape (Front Baffle Seal) |
| Part # | Description | Price | Qty | |
|---|---|---|---|---|
| 880-782 LE | 880-782 LE Fireside Kit 125-150-200 HP 60" Diameter Boiler | $456.51 | Add to Cart |
| Part # | Description | Price | Qty | |
|---|---|---|---|---|
| 32-105 | Head Gasket | $144.28 | Add to Cart | |
| 32-106 | Dry Oven Gasket | $55.55 | Add to Cart | |
| 32-109 | Burner Housing to Inner Door | $41.83 | Add to Cart | |

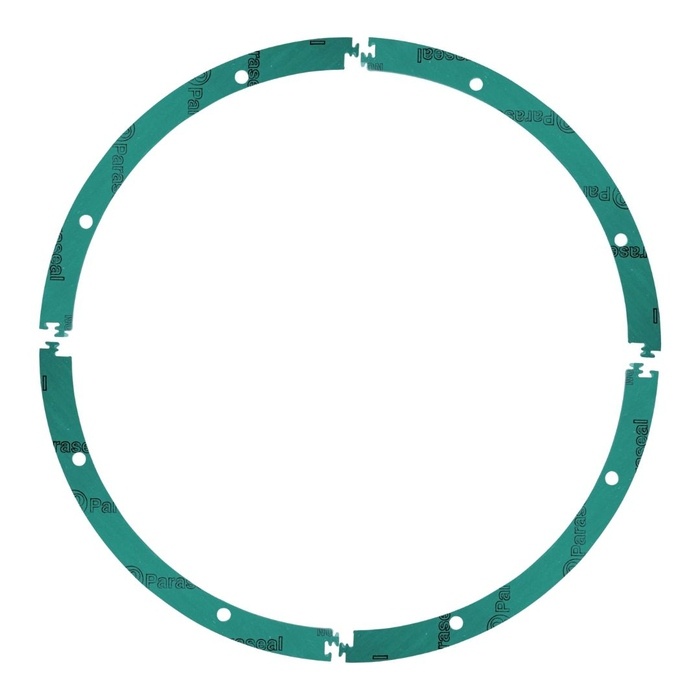

| 32-603 | Burner Housing to Inner Head | $11.20 | Add to Cart | |
| 32-605 | Burner Drawer to Housing | $11.20 | Add to Cart | |
| 841-507 | Fasteners (100 Pack) | $30.00 | Add to Cart | |
| 841-551 | Rivets (100 Pack) | $43.00 | Add to Cart | |
| 853-994 | Front Baffle Tadpole, Pre-Cut to 12 ft Length | $93.90 | Add to Cart | |
| 853-1036 | Gasket, Rear Baffle, 1-1/2" x 60" Fiberglass Rope | $180.00 | Add to Cart | |
| 872-747 | Sized Insulation Strip, 1" x 2" x 8' long | $25.00 | Add to Cart | |
| 872-748 | Sized Insulation Strip, 1/2" x 2" x 300" long | $20.00 | Add to Cart | |
| 872-749 | Sized Insulation Strip 1" x 2" x 108" long | $20.00 | Add to Cart | |
| 904-012 | Fiberglass Plain Tape 2" W x 1/8" T x 100' L | $109.95 | Add to Cart |
