Lattner Packaged Boiler Blowdown Separators
Blowdown separators are a designed for regular blowdown and are necessary to remove accumulated contamination to keep your boiler operating safely and efficiently.

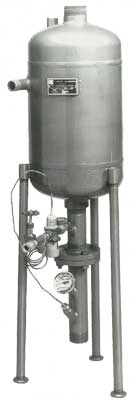

Lattner Blowdown Separator Tanks Durable ASME CODE steam boiler blowdown separators safely reduce steam pressure for external venting ... reduction to a maximum of 5 psi. Water is drained through the bottom threaded coupling; steam is safely vented out the top to the atmosphere. All joints and seams are welded and hydrostatically tested. Constructed of heavy duty 1/4" or 3/8" (1600 & 1800) thick steel. Seven models up to 150 psi are available. National Board Stamped ASME CODE up to 150 psi 650°F Plus a reasonable one year warranty, backed by over 80 years of responsible customer service National Board Stamped ASME CODE up to 150 psi 650°F High pressures available on request 1" NPT Couplings provided for optional support legs which are adjustable - order separately. Model 1450 Separator w/ Optional Automatic Aftercooler and Optional Support Legs.

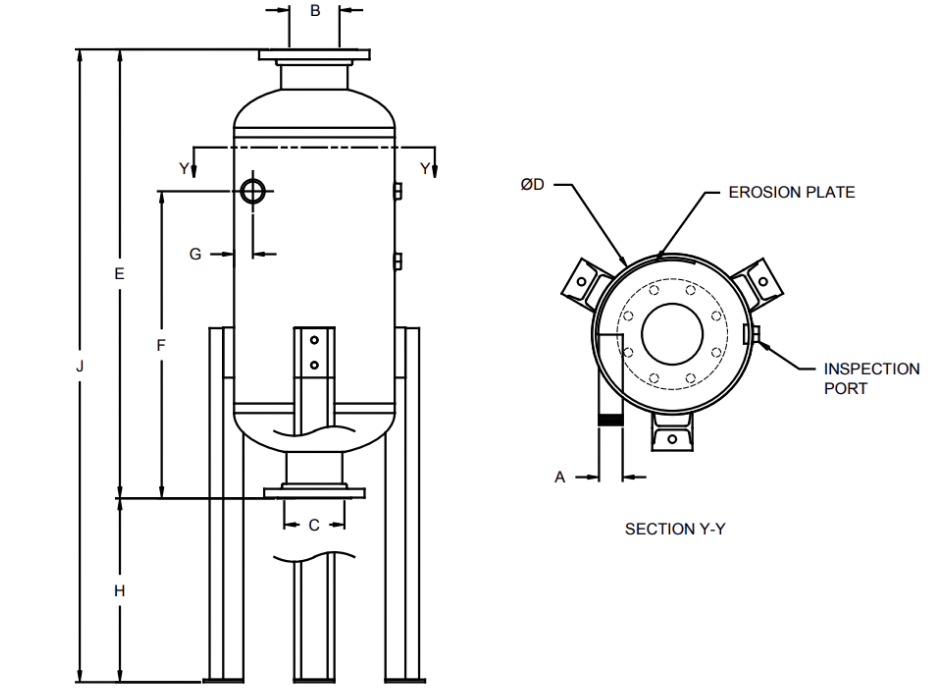

| Part # | ASME Pressure | A Inlet | B Vent | D Drain | E Dia. | F Oa. Ht. | G | H | Ship Wt. | |
|---|---|---|---|---|---|---|---|---|---|---|
| 810 | 150 PSI | 1" | 2" | 2" | 8-5/8" | 17-3/8" | 8-3/16" | 1-1/4" | 47 | Add to RFQ |
| 1450 | 150 PSI | 1-1/2" | 3" | 3" | 14" | 29-11/16" | 18-3/8" | 1-5/8" | 155 | Add to RFQ |
| 1600 | 150 PSI | 2" | 6" Flg | 5" Flg | 16" | 44-3/4" | 30-5/8" | 1-7/8" | 310 | Add to RFQ |
| 1800 | 150 PSI | 2-1/2" | 6" Flg | 6" Flg | 18" | 46" | 31-1/4" | 2-1/8" | 350 | Add to RFQ |

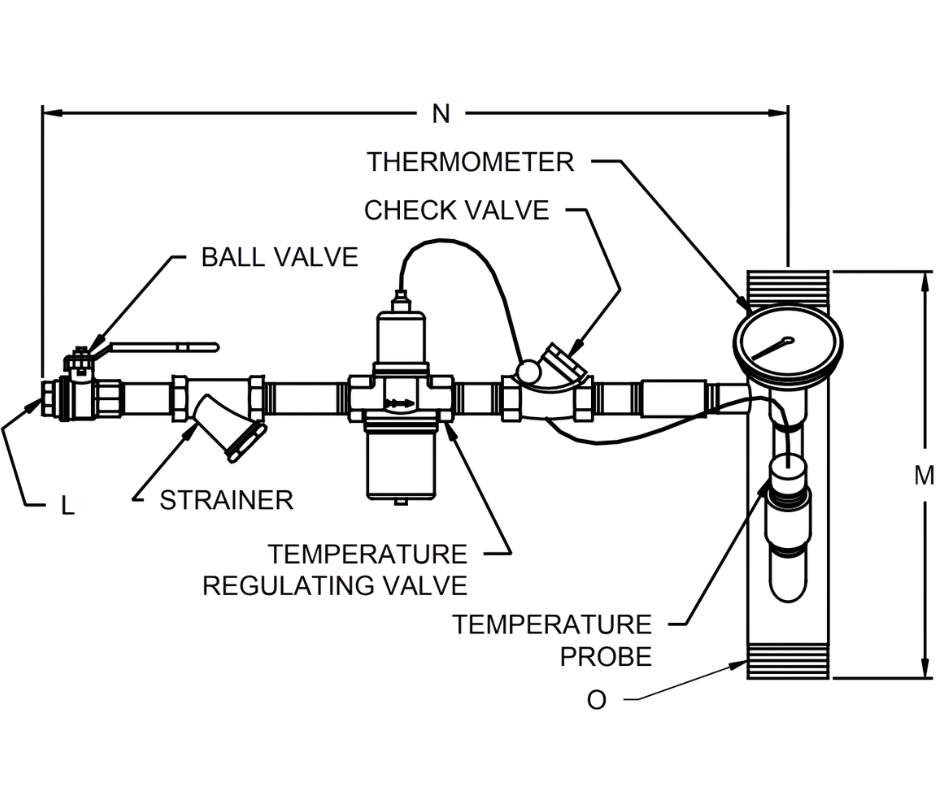

Assembly includes ball valve, check valve, strainer and automatic temperature regulating valve. The aftercooler reduces boiler blow-off to a safe temperature. Local codes vary and should be checked upon installation.
| Part # | Type | Fits | Drain Size | Water Inlet | |
|---|---|---|---|---|---|
| 205A | Auto | #87 & #810 | 2" | 1/2" | Add to RFQ |
| 301A | Auto | #1450 to #1800 | 3" | 1" | Add to RFQ |
| 525A | Auto | #1600 | 5" | 1-1/4" | Add to RFQ |
| 625A | Auto | #1800 | 6" | 1-1/4" | Add to RFQ |

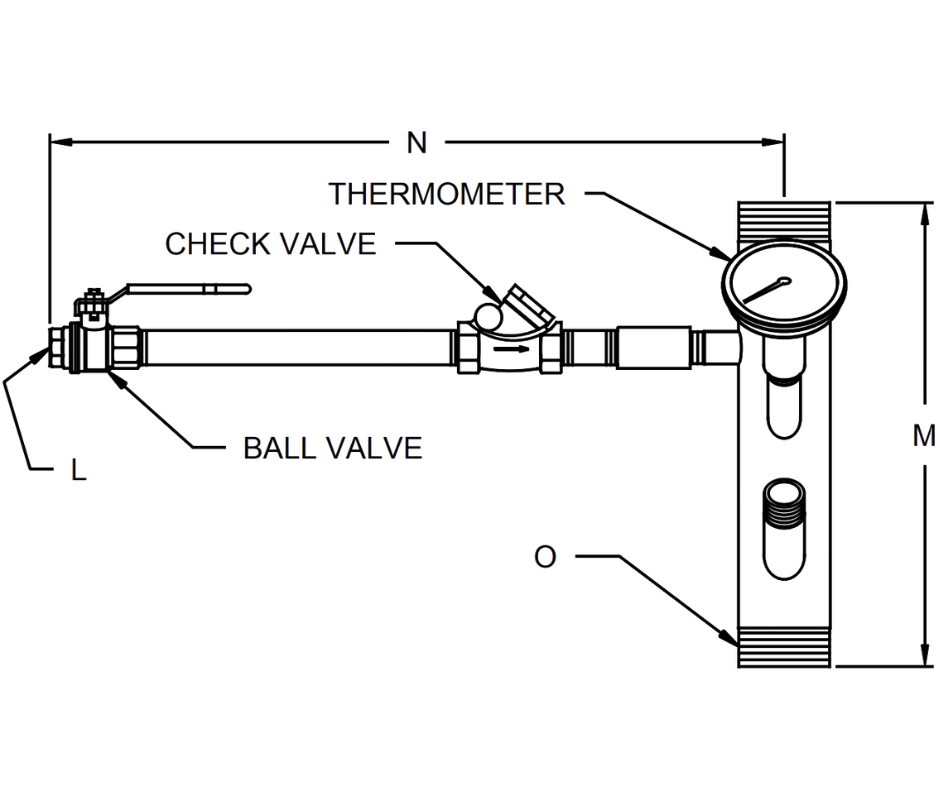

Selection is based upon the separator’s drain connection as noted on the selection chart below. Each assembly is factory piped and includes a ball valve, check valve, and discharge thermometer.
| Part # | Type | Fits | Drain Size | Water Inlet | |
|---|---|---|---|---|---|
| 205M | Manual | #87 & #810 | 2" | 1/2" | Add to RFQ |
| 301M | Manual | #1410 to #1800 | 3" | 1" | Add to RFQ |
| 525M | Manual | #1600 | 5" | 1-1/4" | Add to RFQ |
| 625M | Manual | #1800 | 6" | 1-1/4" | Add to RFQ |
Boiler blow down is mandatory. A boiler cannot continue operating for very long wihtout expelling the left behind solids as steam is generated. Periodic blow down must take place. This can be accomplished with the addition of an automatic blowdown assembly. A boiler that is blown down regularly will maintain high efficiency and last longer. (The use of an automatic device should not preclude periodic visual examination of the boiler blow down effluent to examine that the automatic assembly is working as intended.) Selection is based upon the boiler's drain connection as noted on the selection chart below.

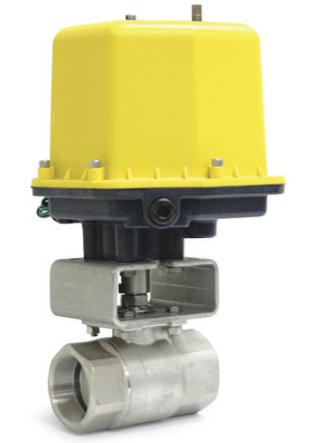

Each assembly is factory piped and wired, and includes a ball shutoff valve, ball by-pass valve, motor driven ball valve, and NEMA 1 panel containing the interval timer. Lattner Blowdown System with Separator and Automatic Aftercooler.
| Part # | ASME Pressure | |
|---|---|---|
| 1674-B-1 | UP TO 1" | Add to RFQ |
| 1674-B-1.5 | 1-1/4", 1-1/2" | Add to RFQ |
| 1674-B-2.5 | 2", 2-1/2" | Add to RFQ |
