EPDM Rubber Boiler Gaskets, Plates & Fiber Blankets | Boiler Supplies Spiral-Max 304 Stainless Steel Spiral Wound Boiler Gaskets Spiral-Max 304 Stainless Steel Gaskets
One of the best all-around seals, the SPIRAL-MAX Gasket offers a cost-effective solution that has the ability to withstand high temperature and pressure fluctuations. 3 plies of metal and filler in the spiral create a barrier that reduces the possibility of leaks.
Designed to achieve an effective seal under the most demanding operating conditions, the Spiral-Max profile is engineered to provide recovery in applications where the load on the gasket may vary due to major temperature fluctuations. While there is not a published standard for the construction of hand-hole and manhole spiral wound gaskets, the industry often categorizes them into pressure ratings 0-999 PSI and greater than 1,000 PSI. The difference between these two designations is the thickness of the sealing composite. A thicker sealing composite results in a lower content of containment strip. Inversely, a thinner sealing composite allows for an increased content of containment strip. The higher the alloy content, the more pressure the gasket can withstand.
PLEASE CALL 1-800-780-3776 FOR SIZES NOT SEEN BELOW!!
All Standard Spiral Max Gaskets are 3/16" Thick with 1/4" available upon request.
All Handhole Gaskets are sold in (6 Packs)

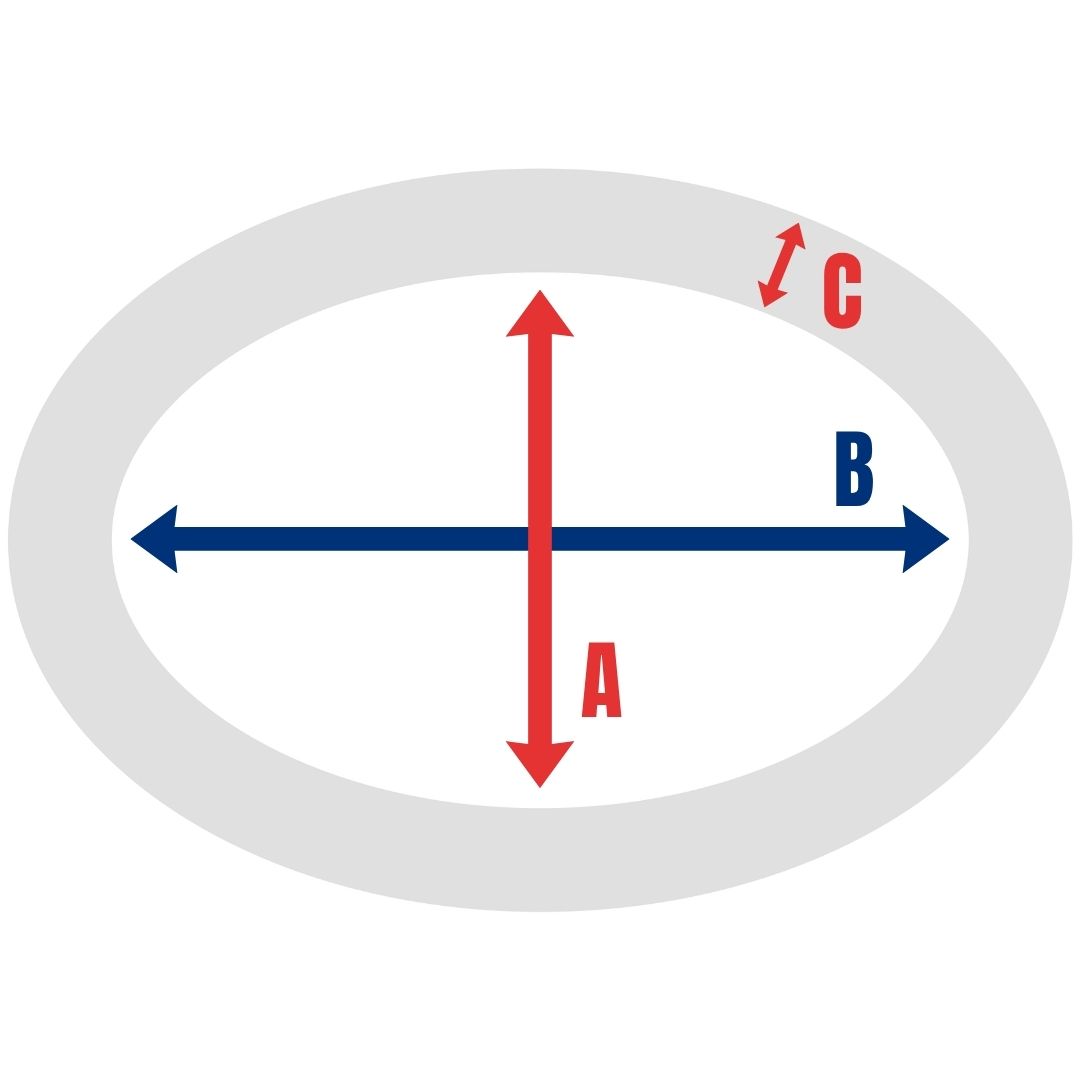

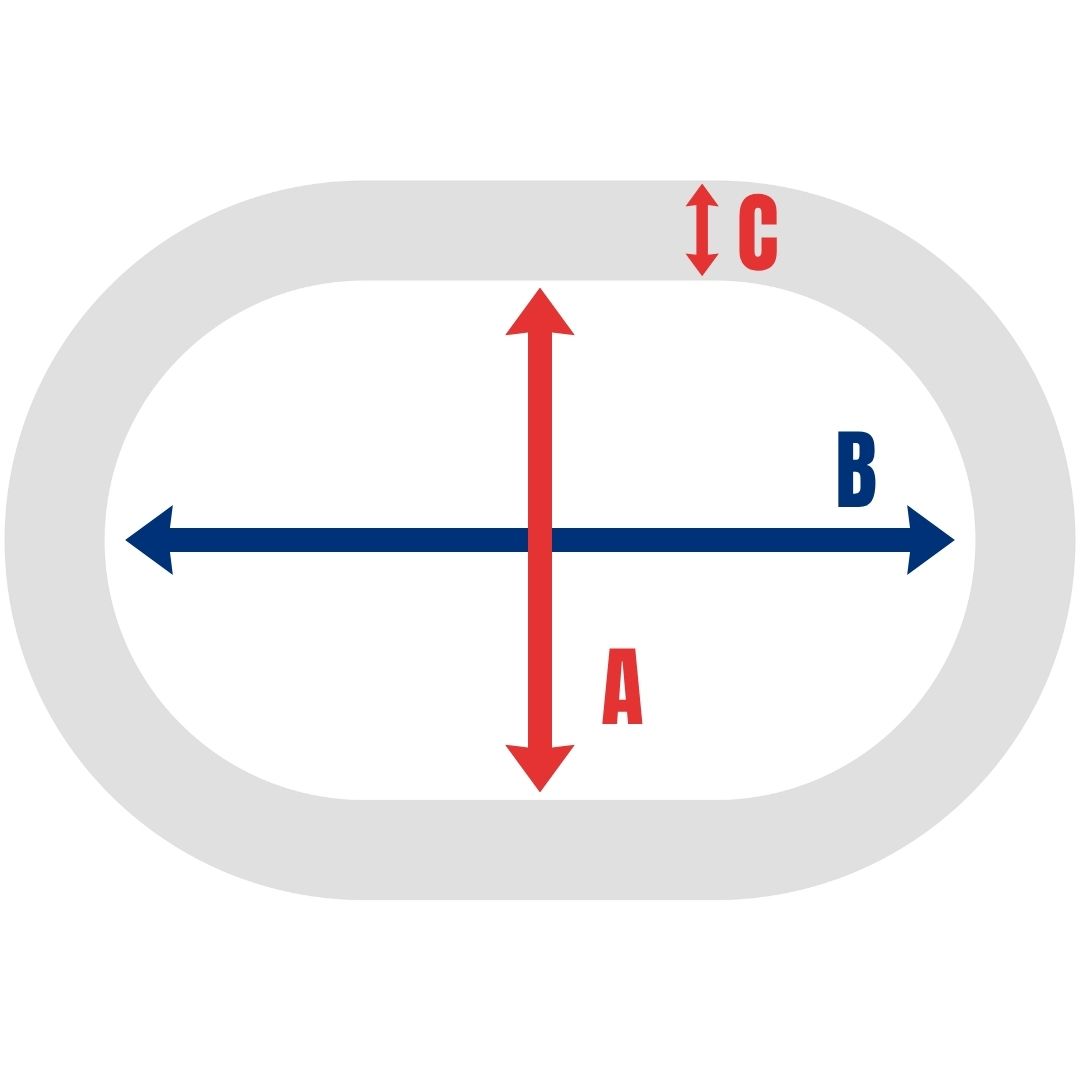

| Part # | A | B | C | Thickness | Type | Weight |
(6-Pack) Price |
Qty | |
|---|---|---|---|---|---|---|---|---|---|

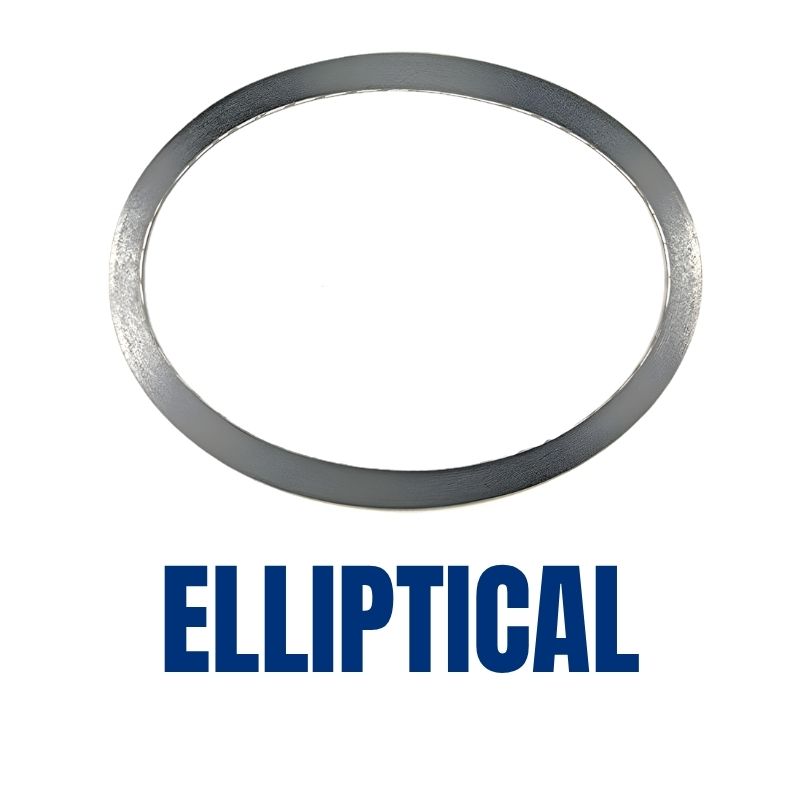

| 767-001PK | 3" | 4" | 1/2" | 3/16" | Elliptical | 2.00 | $54.70 | Add to Cart | |
| 767-002PK | 3" | 4" | 9/16" | 3/16" | Elliptical | 2.00 | $55.75 | Add to Cart | |
| 767-003PK | 3" | 4" | 5/8" | 3/16" | Elliptical | 2.00 | $62.05 | Add to Cart | |
| 767-004PK | 3" | 4-1/2" | 1/2" | 3/16" | Elliptical | 2.00 | $54.70 | Add to Cart | |
| 767-005PK | 3-1/4" | 4-1/2" | 1/2" | 3/16" | Elliptical | 2.00 | $54.70 | Add to Cart | |
| 767-006PK | 3-1/4" | 4-1/4 | 9/16" | 3/16" | Elliptical | 2.00 | $57.85 | Add to Cart | |
| 767-007PK | 3-1/4" | 5" | 3/8" | 3/16" | Elliptical | 2.00 | $54.70 | Add to Cart | |
| 767-008PK | 3-1/4" | 5" | 1/2" | 3/16" | Elliptical | 2.00 | $58.90 | Add to Cart | |
| 767-009PK | 3-1/4" | 5" | 9/16" | 3/16" | Elliptical | 2.00 | $67.30 | Add to Cart | |
| 767-010PK | 3-1/2" | 4-1/2" | 3/8" | 3/16" | Elliptical | 2.00 | $54.70 | Add to Cart | |
| 767-011PK | 3-1/2" | 4-1/2" | 1/2" | 3/16" | Elliptical | 2.00 | $54.70 | Add to Cart | |
| 767-012PK | 3-1/2" | 5" | 1/2" | 3/16" | Elliptical | 2.00 | $58.90 | Add to Cart | |
| 767-013PK | 4" | 5" | 3/8" | 3/16" | Elliptical | 2.00 | $54.70 | Add to Cart | |
| 767-014PK | 4" | 6" | 1/2" | 3/16" | Elliptical | 2.00 | $69.40 | Add to Cart | |
| 767-015PK | 4" | 5" | 5/8" | 3/16" | Elliptical | 2.00 | $75.75 | Add to Cart | |
| 767-016PK | 4" | 6" | 3/8" | 3/16" | Elliptical | 2.00 | $54.70 | Add to Cart | |
| 767-017PK | 4" | 6" | 5/8" | 3/16" | Elliptical | 2.00 | $89.40 | Add to Cart | |
| 767-018PK | 4" | 6" | 3/4" | 3/16" | Elliptical | 2.00 | $108.35 | Add to Cart | |

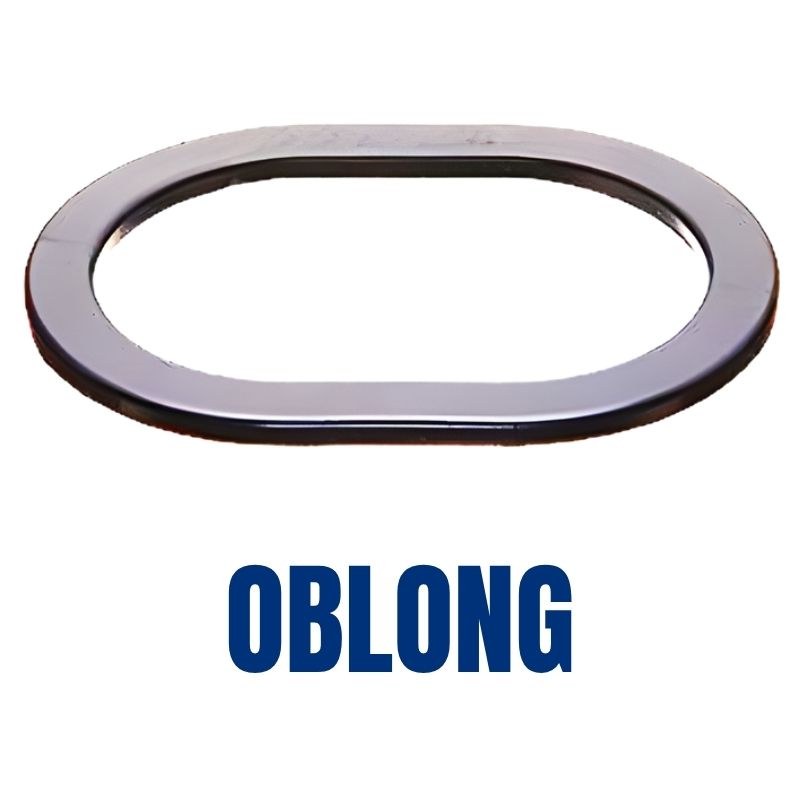

| 767-019PK | 3" | 4" | 1/2" | 3/16" | Oblong | 2.00 | $54.70 | Add to Cart | |
| 767-020PK | 3" | 4-1/2" | 1/2" | 3/16" | Oblong | 2.00 | $54.70 | Add to Cart | |
| 767-021PK | 3" | 4-1/2" | 9/16" | 3/16" | Oblong | 2.00 | $61.00 | Add to Cart | |
| 767-022PK | 3-1/4" | 4-1/2" | 1/2" | 3/16" | Oblong | 2.00 | $54.70 | Add to Cart | |
| 767-023PK | 3-1/4" | 4-1/2" | 5/8" | 3/16" | Oblong | 2.00 | $69.42 | Add to Cart | |
| 767-024PK | 3-1/2" | 4-1/2" | 1/2" | 3/16" | Oblong | 2.00 | $54.70 | Add to Cart | |
| 767-025PK | 4" | 6" | 1/2" | 3/16" | Oblong | 2.00 | $69.40 | Add to Cart | |
| 767-026PK | 4" | 6" | 5/8" | 3/16" | Oblong | 2.00 | $89.40 | Add to Cart |
| Part # | A | B | C | Thickness | Type | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|
| 767-027 | 11" | 15" | 15/16" | 3/16" | Elliptical | 2.00 | $57.85 | Add to Cart | |
| 767-028 | 11" | 15" | 1-1/4" | 3/16" | Elliptical | 2.00 | $72.60 | Add to Cart | |
| 767-029 | 11" | 15" | 1-1/2" | 3/16" | Elliptical | 2.00 | $83.62 | Add to Cart | |
| 767-030 | 12" | 16" | 15/16" | 3/16" | Elliptical | 2.00 | $61.00 | Add to Cart | |
| 767-031 | 12" | 16" | 15/16" | 1/4" | Elliptical | 2.00 | $81.00 | Add to Cart | |
| 767-032 | 12" | 16" | 1-1/4" | 3/16" | Elliptical | 2.00 | $76.80 | Add to Cart | |
| 767-033 | 12" | 16" | 1-1/4" | 1/4" | Elliptical | 2.00 | $103.10 | Add to Cart | |
| 767-034 | 14" | 18" | 1-1/4" | 3/16" | Elliptical | 2.00 | $86.25 | Add to Cart | |
| 767-035 | 14" | 18" | 1-1/2" | 3/16" | Elliptical | 2.00 | $104.15 | Add to Cart | |
| 767-036 | 18" | 24" | 1" | 3/16" | Elliptical | 2.00 | $89.40 | Add to Cart |
