Cleaver Brooks® Boiler Parts- Fireside & Waterside Kits | Boiler Supplies 400-800 HP Boilers, 96" Dia. "LE" Fireside Kit
BoilerSupplies.com handles all the boiler soft parts with our all-in-one fireside and waterside kits. Each kit comes with gaskets that are specific to your boiler.

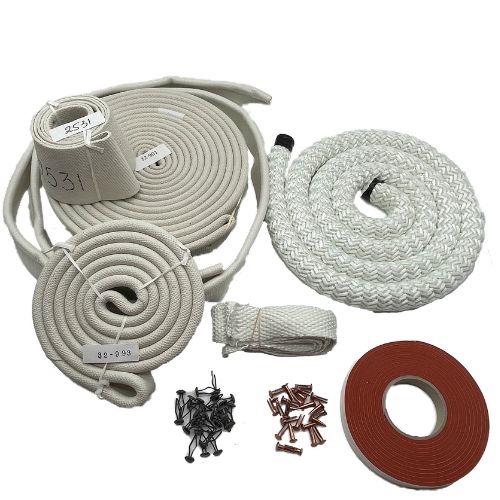

Fireside kits include tadpole head gasket, burner drawer gasket, burner housing to head gasket, tadpole burner to housing inner door, tadpole tape for front baffle, rope for rear baffle, and fasteners and rivets to install everything. Be sure your boiler is ready for inspections! These kits are designed for all name brand boilers.
Waterside kits include rubber EPDM gaskets as well as McDonnell Miller 150-14 water column head gaskets. Waterside kits are also available with spiral wound gaskets instead of the standard EPDM rubber gaskets. See the descriptions for each waterside kit below, as well as part numbers for easy ordering. Call toll-free 1-800-780-3776.
CLICK FIRE BUTTON BELOW FOR MORE CB FIRESIDE & WATERSIDE KITS...
| Part # | Quantity | Description |
|---|---|---|
| 32-901 | 1 | Gasket, Tadpole Front and Rear Head Flange, CB/CBW 96" Dia. |
| 32-993 | 1 | Gasket, Tadpole, Inner Door to Burner Housing, CB 96" Dia. |
| 32-2531 | 1 | Gasket, Burner Support to Burner Drawer Front Head 96" Dia. |
| 841-507 | 1 | Fastner |
| 841-551 | 12 | Rivet, Split, Round Head |
| 853-924 | 1 | Gasket, Rear Baffle, 1-1/2" x 98" Fiberglass Rope |
| 853-1017 | 15 | Silicone Gasket Tape, 3/16" x 1" x 15' roll |
| 872-747 | 1 | Sized Insulation Strip, 1" x 2" x 8' long |
| 872-748 | 1 | Sized Insulation Strip, 1/2" x 2" x 300" long |
| 872-749 | 1 | Sized Insulation Strip 1" x 2" x 108" long |
| 904-12 | 96 | Gasket Tape, 1/8" x 2" wide, Fiberglass, 1000 deg F max |
| Part # | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|
| 880-781 | 880-781 LE Fireside Kit 400-800 HP 96" Diameter Boiler | 40.00 | $665.85 | Add to Cart |
