Cleaver Brooks® Boiler Parts- Fireside & Waterside Kits | Boiler Supplies 78" Dia. "LE" Fireside Kit (Complete Kit)
BoilerSupplies.com handles all the boiler soft parts with our all-in-one fireside and waterside kits. Each kit comes with gaskets that are specific to your boiler.

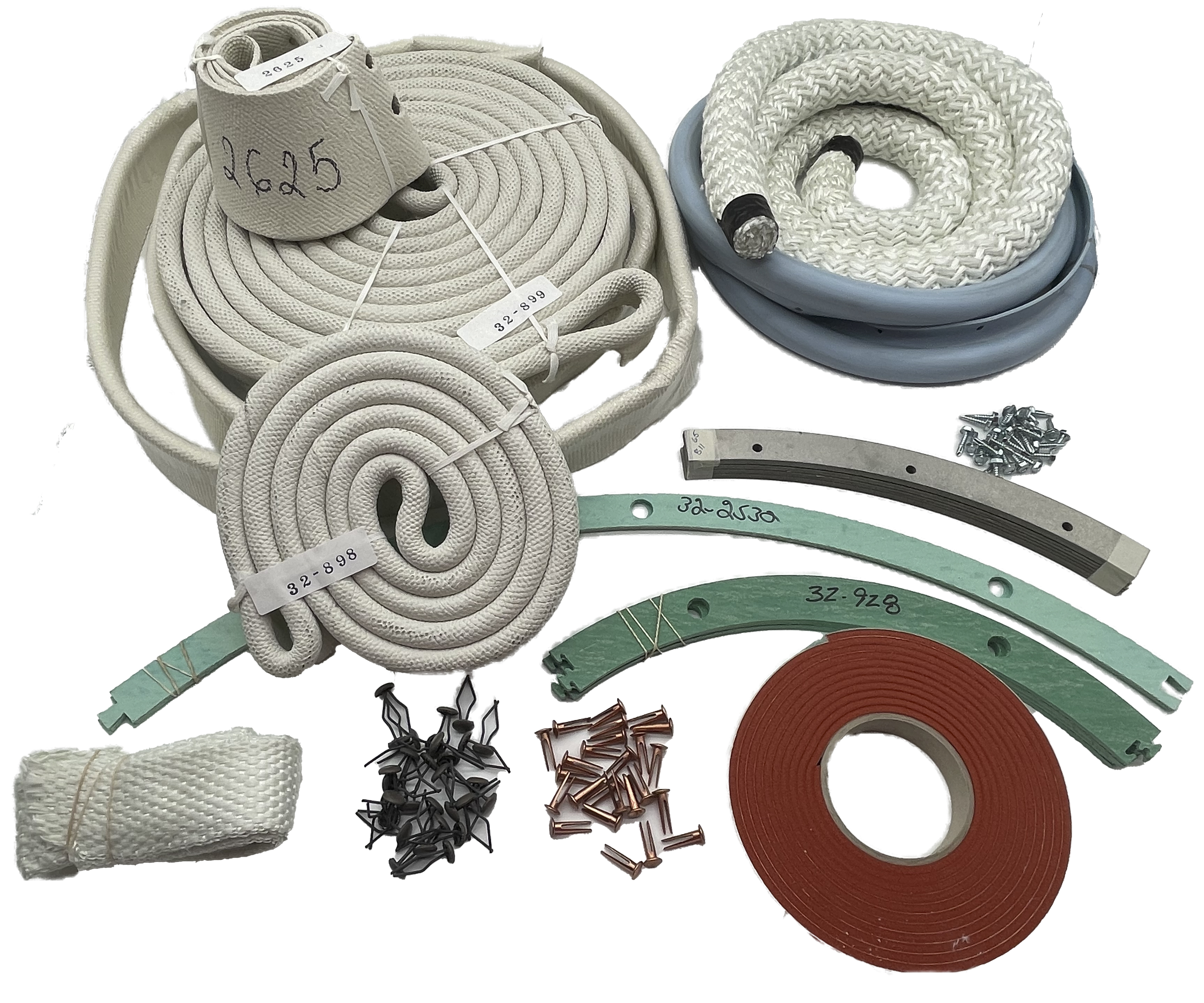

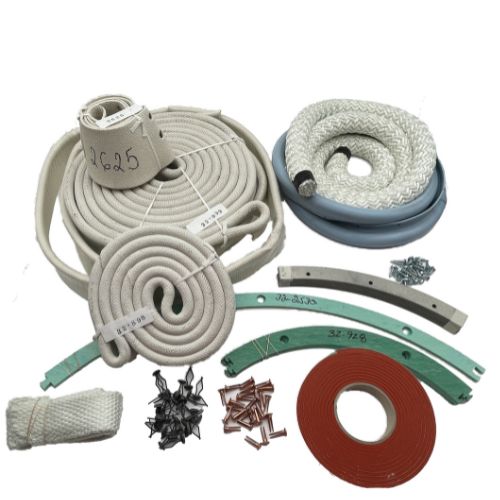

Fireside kits include tadpole head gasket, burner drawer gasket, burner housing to head gasket, tadpole burner to housing inner door, tadpole tape for front baffle, rope for rear baffle, and fasteners and rivets to install everything. These kits are truly all-in-one replacements! Some kits may vary depending on size or boiler horsepower, but see the descriptions below to see what is included in the fireside kit for your boiler. Be sure your boiler is ready for inspections! These kits are designed for all name brand boilers.
Waterside kits include rubber EPDM gaskets (standard) as well as McDonnell Miller 150-14 water column head gaskets. Waterside kits are also available with spiral wound gaskets instead of the standard EPDM rubber gaskets. See the descriptions for each waterside kit below, as well as part numbers for easy ordering. Call toll-free 1-800-780-3776.
CLICK FIRE BUTTON BELOW FOR MORE CB FIRESIDE & WATERSIDE KITS...
| Part # | Quantity | Description |
|---|---|---|
| 32-898 | 1 | Burner Housing to Inner Door |
| 32-899 | 2 | Head Gasket |

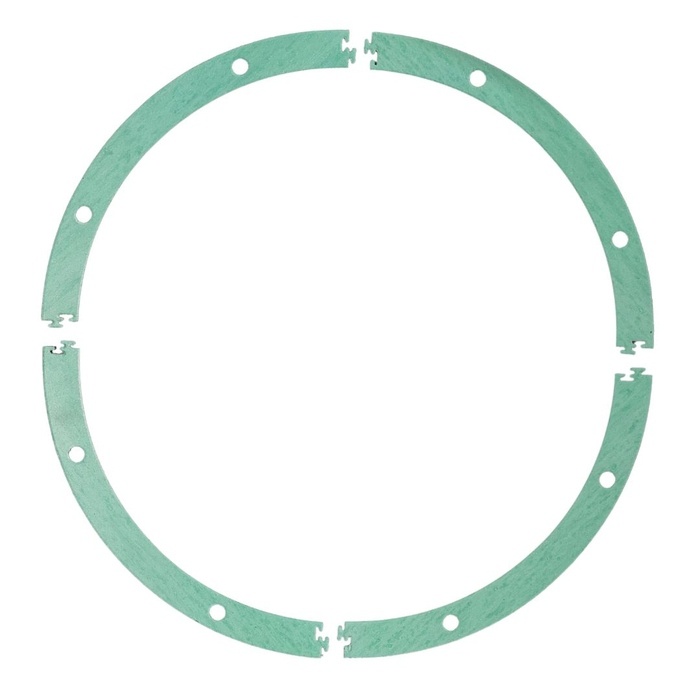

| 32-928 | 1 | Burner Housing to Inner Door |

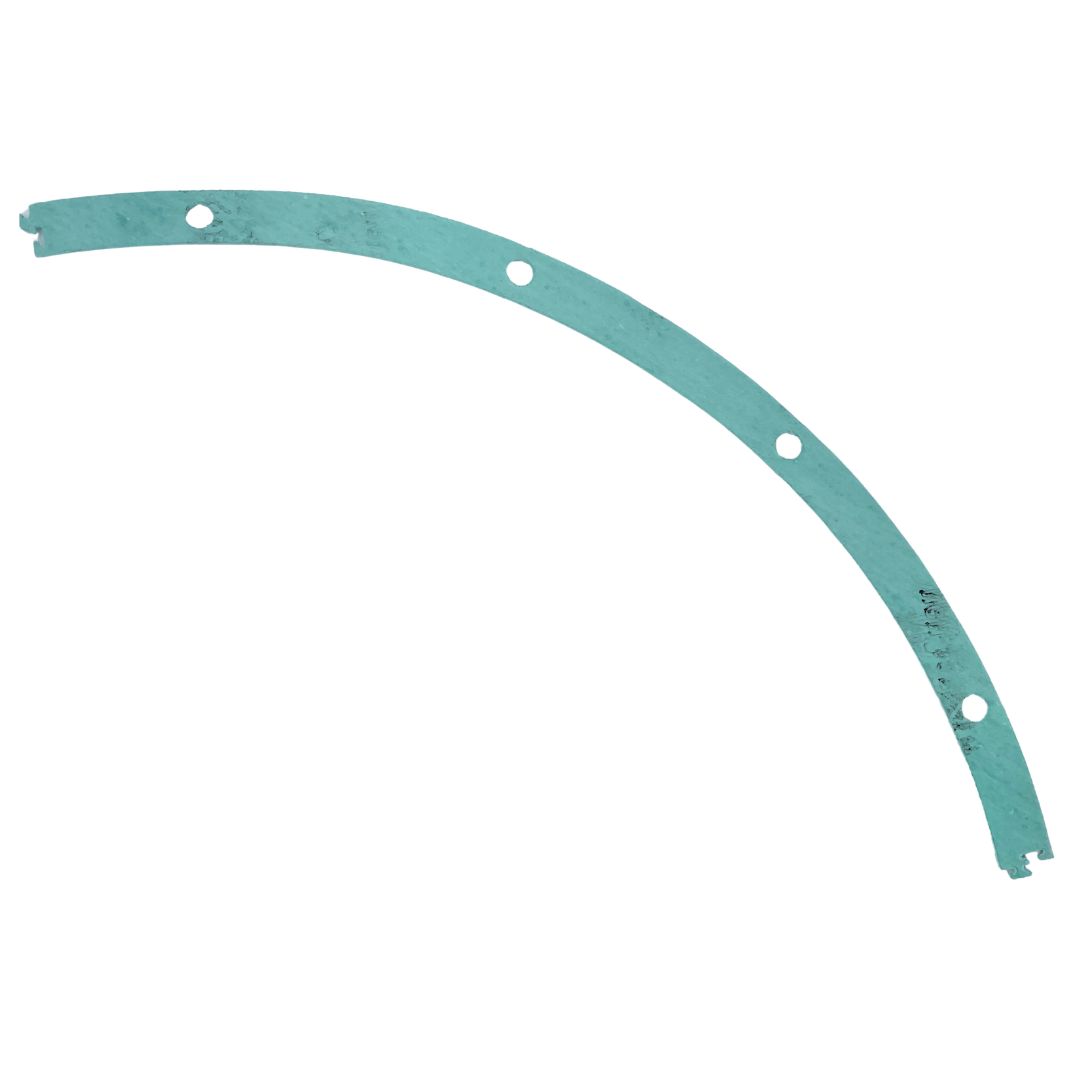

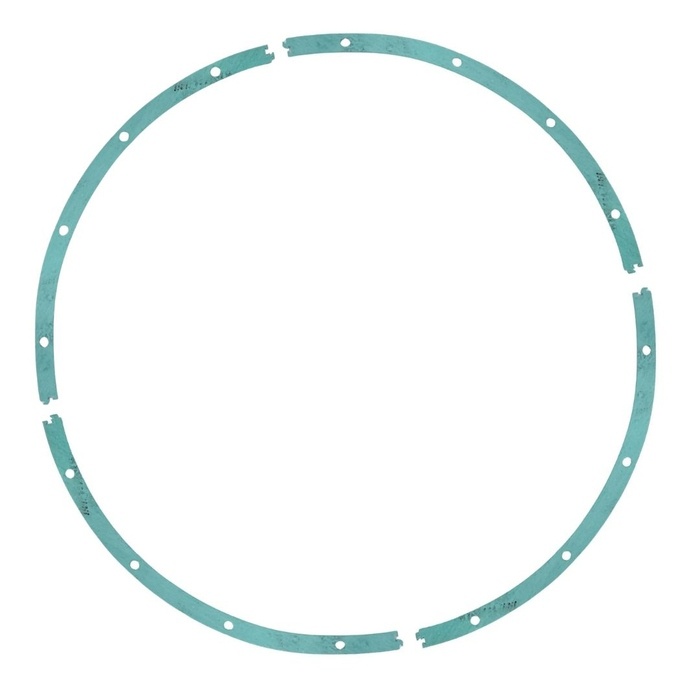

| 32-2532 | 1 | Blower Gasket |
| 32-2543 | 1 | Air Duct Gasket (Large) |
| 32-2625 | 1 | Burner Support Gasket |
| 65-811 | 8 | Air Duct Retainer |
| 841-507 | 75 | Fastener |
| 841-551 | 25 | Rivets |
| 841-1545 | 24 | Stainless Steel Screw |
| 853-994 | 1 | Front Baffle Tadpole |
| 853-1017 | 1 | Silicone Sponge Tape |
| 853-1036 | 80" | 1-1/2" Rope (Rear Baffle) |
| 872-747 | 1 | 2" x 1" x 25' Ceramic Strip (Front Baffle Seal) |
| 872-748 | 1 | 2" x 1/2" x 25' Ceramic Strip (Rear Head to Tube Sheet) |
| 872-749 | 1 | 2" x 1/2" x 25' Ceramic Strip |
| 904-012 | 7' | 2" x 1/8" Fiberglass Tape (Front Baffle) |
| Part # | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|
| 880-655 | 880-655 LE Fireside Complete Kit for 78" Diameter Boiler | 30.00 | $947.14 | Add to Cart |
