Cleaver Brooks® Boiler Parts- Fireside & Waterside Kits | Boiler Supplies 400-800 HP Boilers, 96" Dia. "LE" Fireside Kit (Blower Motor Components Included)
BoilerSupplies.com handles all the boiler soft parts with our all-in-one fireside and waterside kits. Each kit comes with gaskets that are specific to your boiler.
Fireside kits include tadpole head gasket, burner drawer gasket, burner housing to head gasket, tadpole burner to housing inner door, tadpole tape for front baffle, rope for rear baffle, and fasteners and rivets to install everything. These kits are truly all-in-one replacements! Some kits may vary depending on size or boiler horsepower, but see the descriptions below to see what is included in the fireside kit for your boiler. Be sure your boiler is ready for inspections! These kits are designed for all name brand boilers.
Waterside kits include rubber EPDM gaskets (standard) as well as McDonnell Miller 150-14 water column head gaskets. Waterside kits are also available with spiral wound gaskets instead of the standard EPDM rubber gaskets. See the descriptions for each waterside kit below, as well as part numbers for easy ordering. Call toll-free 1-800-780-3776.
CLICK FIRE BUTTON BELOW FOR MORE CB FIRESIDE & WATERSIDE KITS...
| Part # | Quantity | Description |
|---|---|---|
| 32-901 | 2 | Gasket, Tadpole, Front and Rear Head Flange, CB/CBW 96" Dia. |
| 32-993 | 1 | Gasket, Tadpole, Inner Door to Burner Housing, CB 96" Dia. |

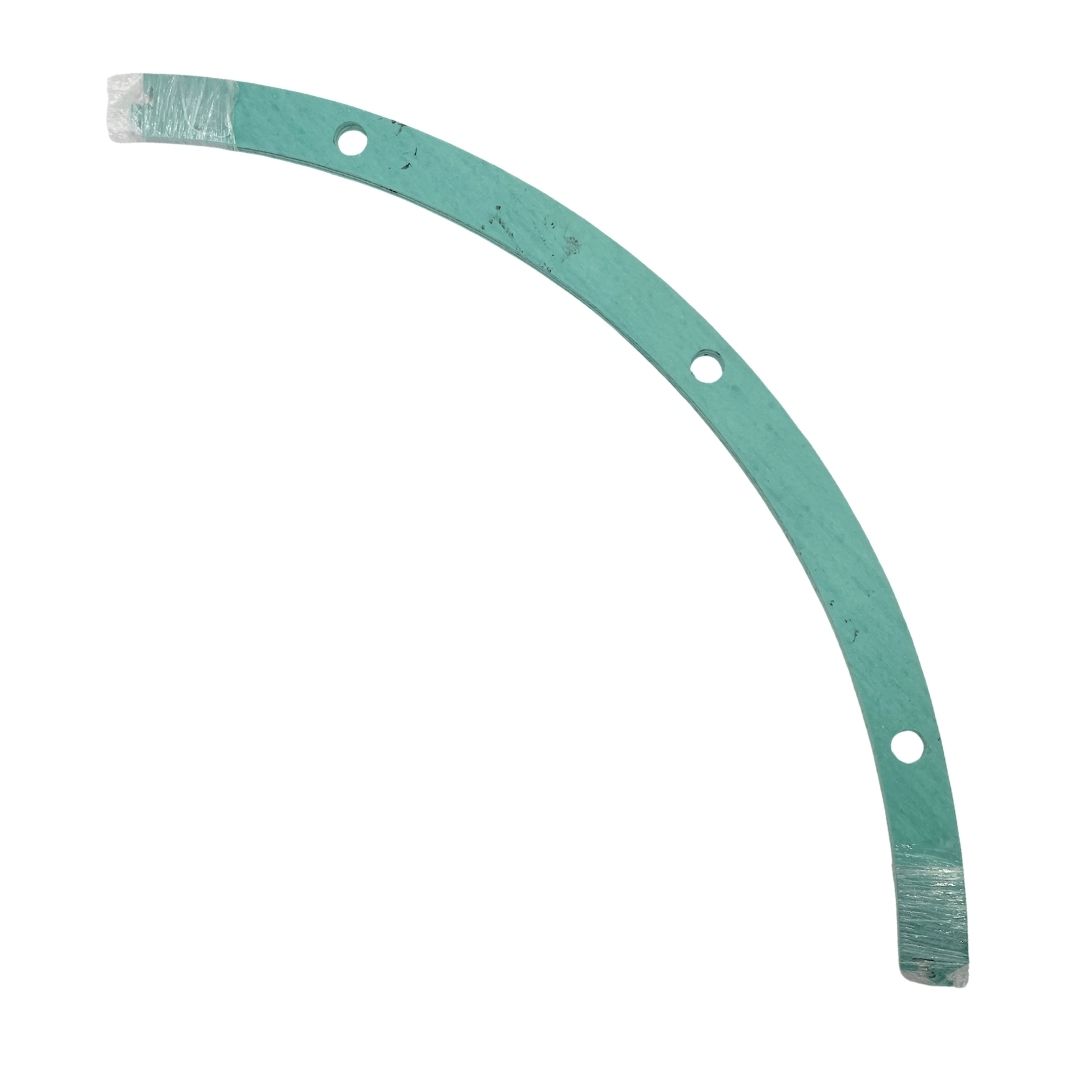

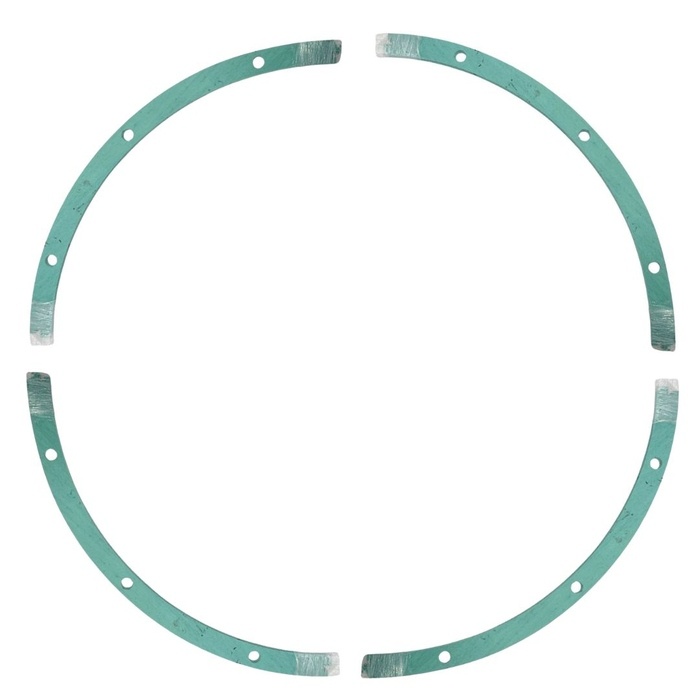

| 32-2524 | 1 | Gasket, Blower, 96" LE |

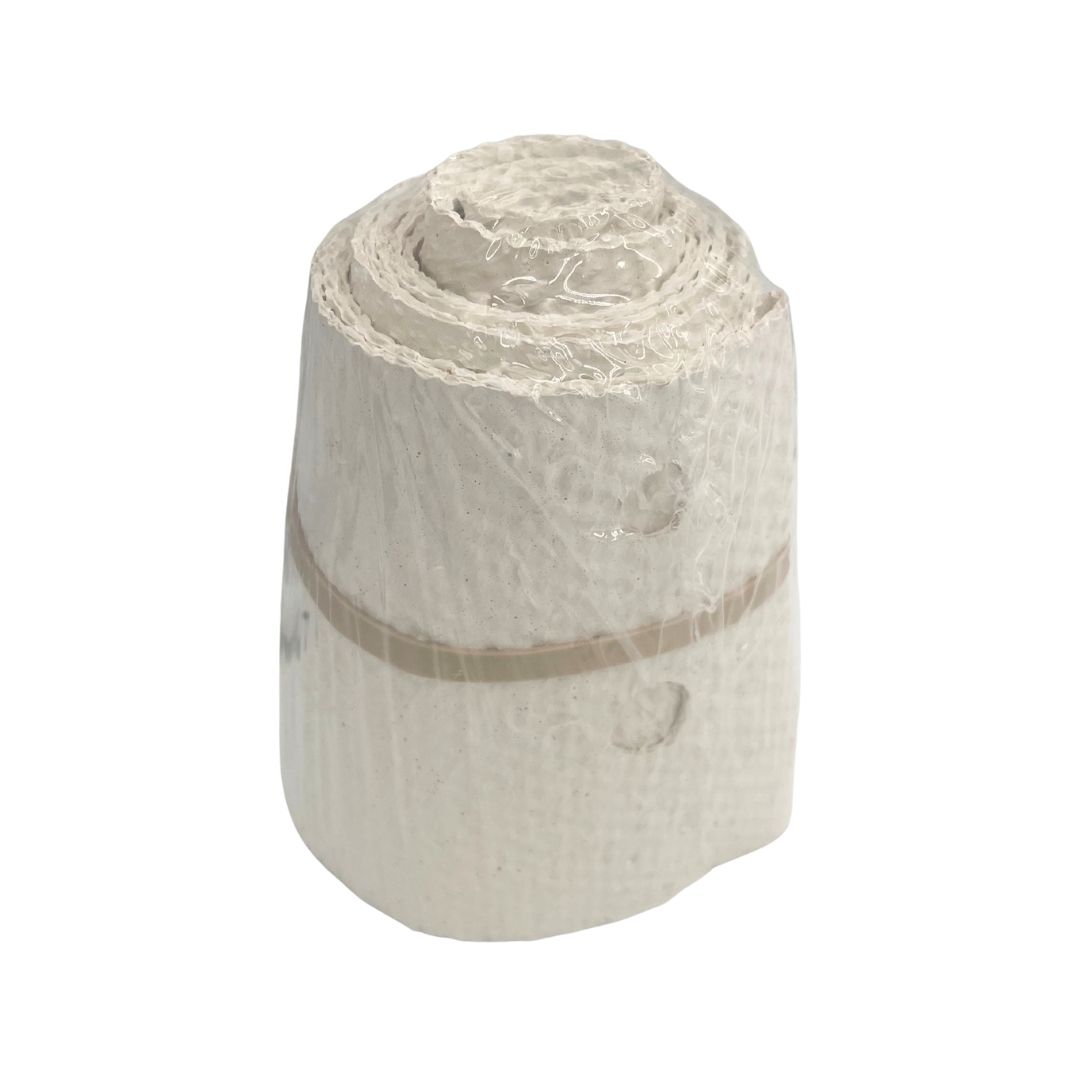

| 32-2531 | 1 | Gasket, Burner Support to Burner Drawer Front Head Flange, CB/CBW 96" Dia. |

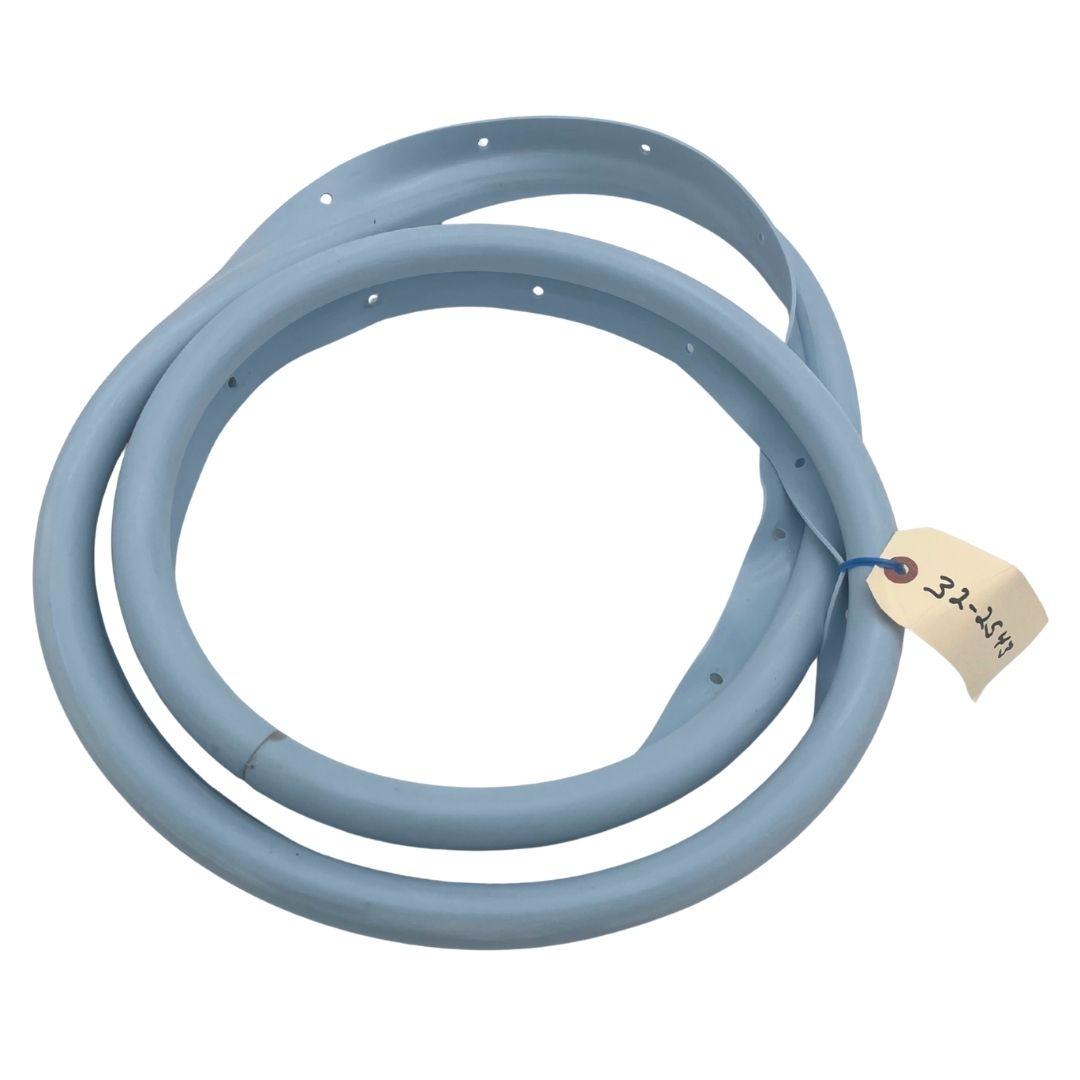

| 32-2543 | 1 | Air Duct Sealing Gasket 78" and 96" Boilers |

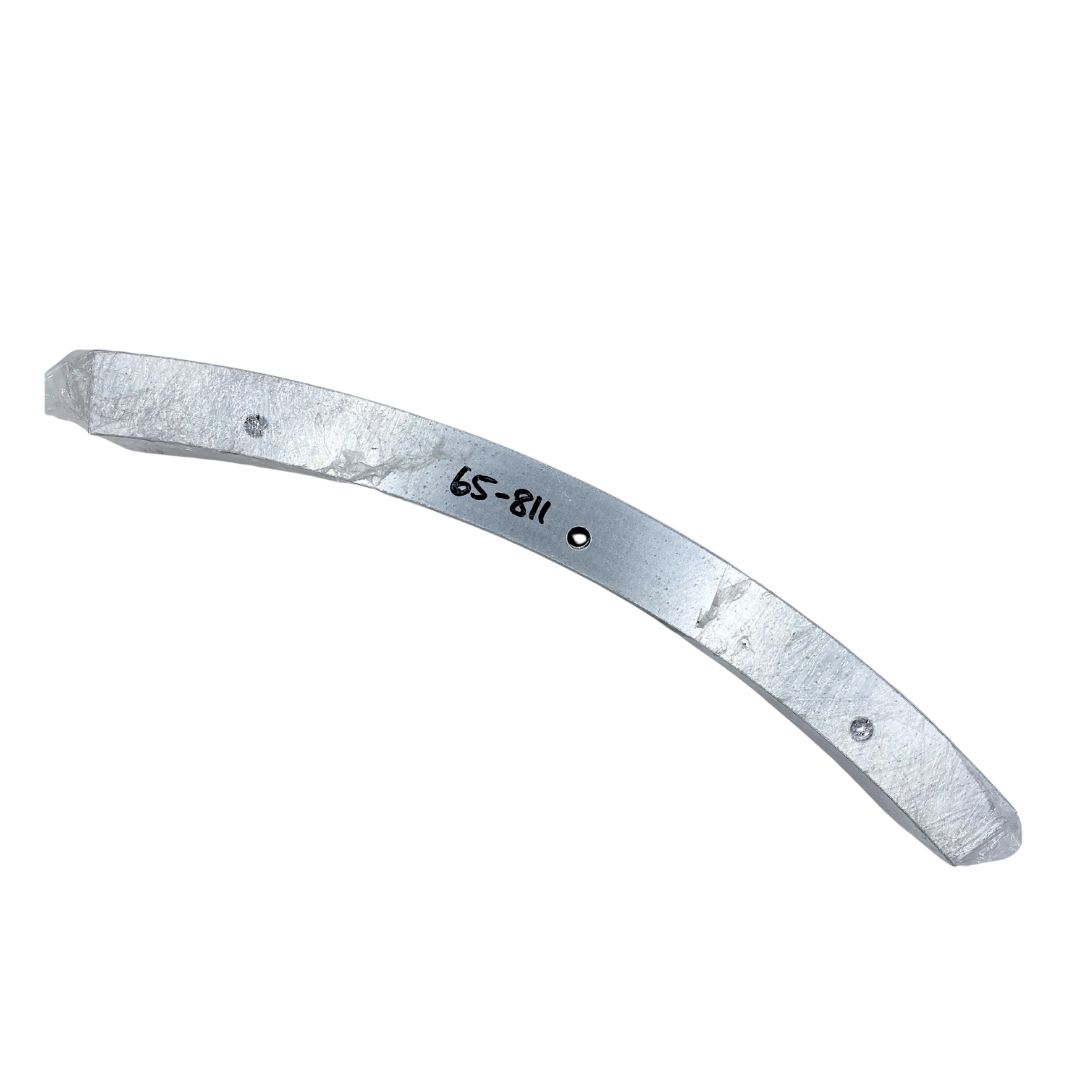

| 65-811 | 8 | Air Duct Gasket Retainer, 78" 96" Boilers |
| 841-507 | 75 | Fastener |
| 841-551 | 12 | Rivet, Split, Round Head |

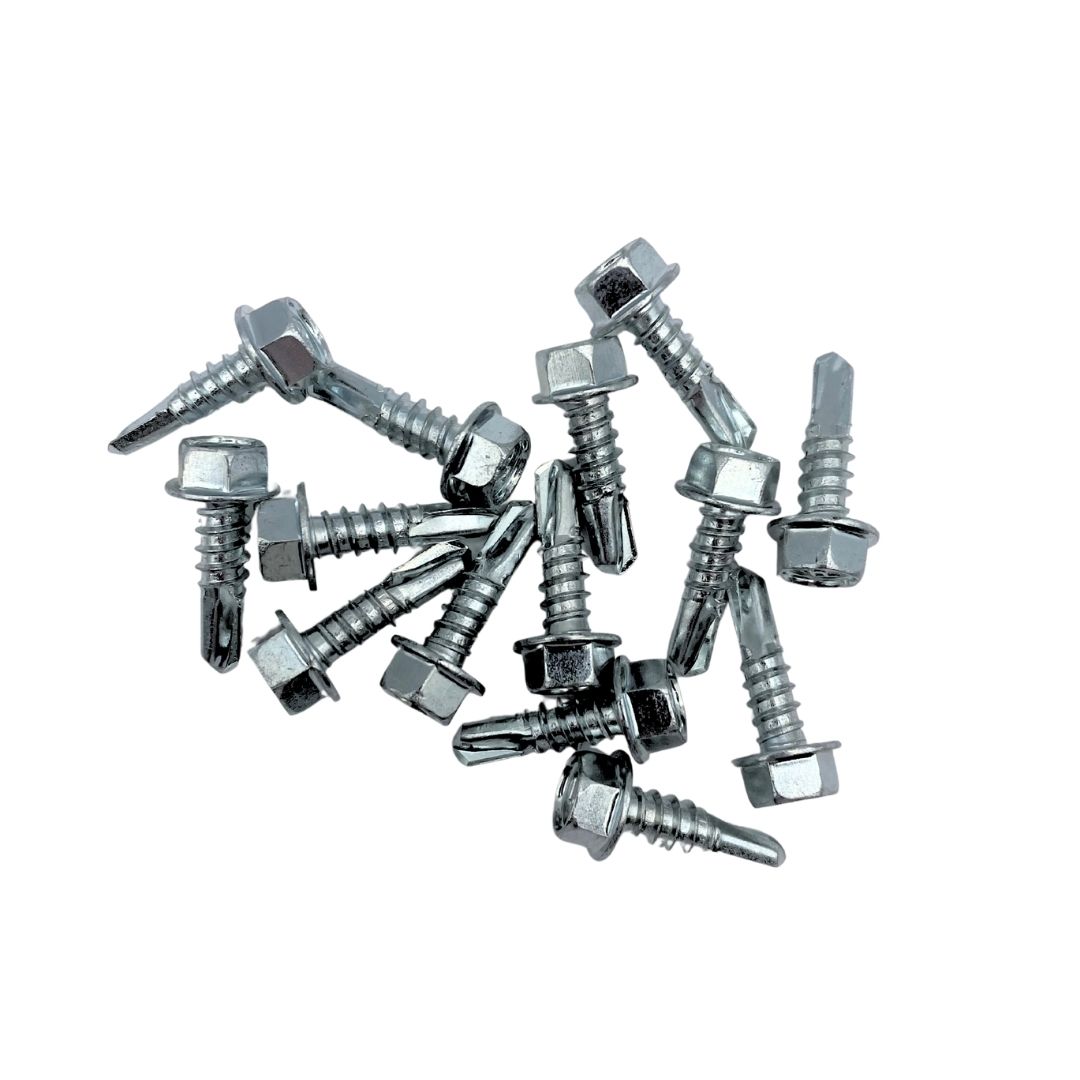

| 841-1545 | 24 | Screw, Self-drilling, 10-16 x 3/4" long |
| 853-987 | 1 | Gasket, Rear Baffle, 1-1/4" x 98" Fiberglass Rope |
| 853-1017 | 1 | Silicone Gasket Tape, 3/16" x 1" x 15' Roll |

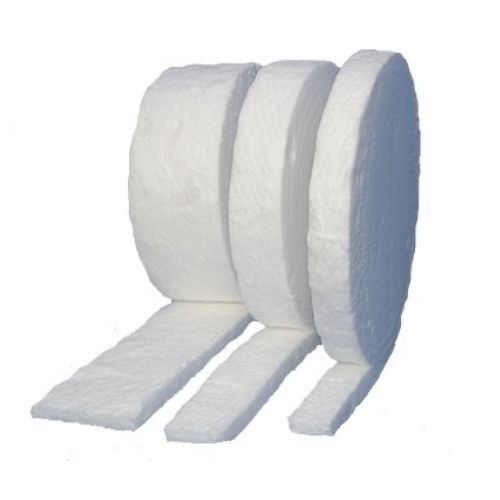

| 872-747 | 1 | Sized Insulation Strip, 1/2" x 2" x 300" long |
| 872-749 | 1 | Sized Insulation Strip, 1/2" x 2" x 108" long |

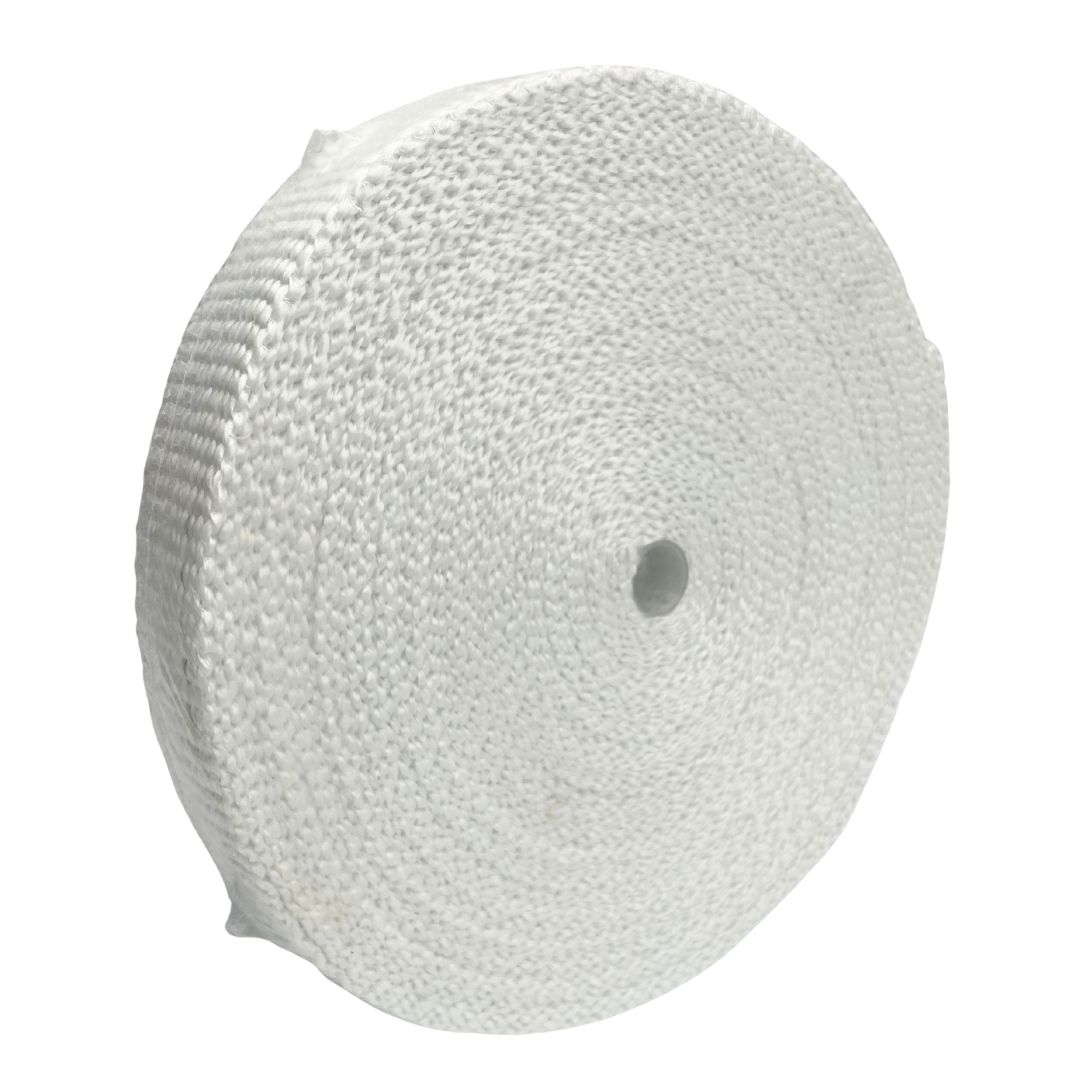

| 904-12 | 1 | Gasket Tape, 1/8" x 2" x 100' Roll |
| Part # | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|

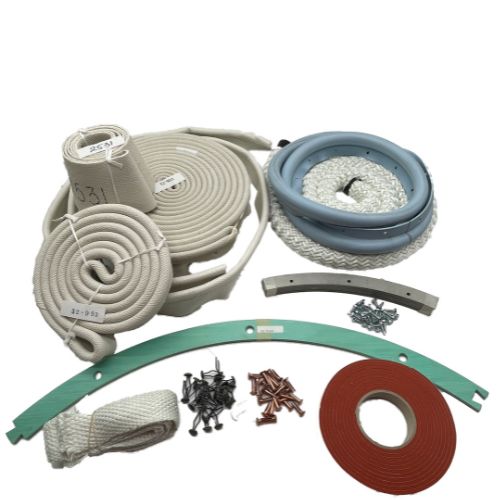

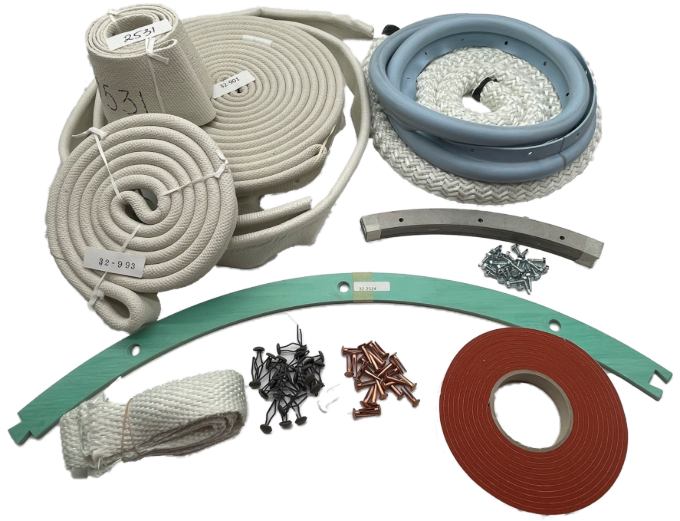

| 880-656 | 880-656 LE Fireside Kit 400-800 HP for 96" Diameter Boiler (Blower Motor Components Included) | 38.00 | $1,034.08 | Add to Cart |
