400-800 HP Boilers, 96" Dia. Fireside Kit / Waterside Kit to fit Cleaver Brooks In Stock

Item Name: Fireside Kit 880-218
Description:

NOTICE: Our fireside and waterside kits fit Cleaver Brooks® boilers and are comparable replacement gasket kits. They are not manufactured by Cleaver Brooks®. Boiler Supplies is not affiliated with Cleaver Brooks® in any way.

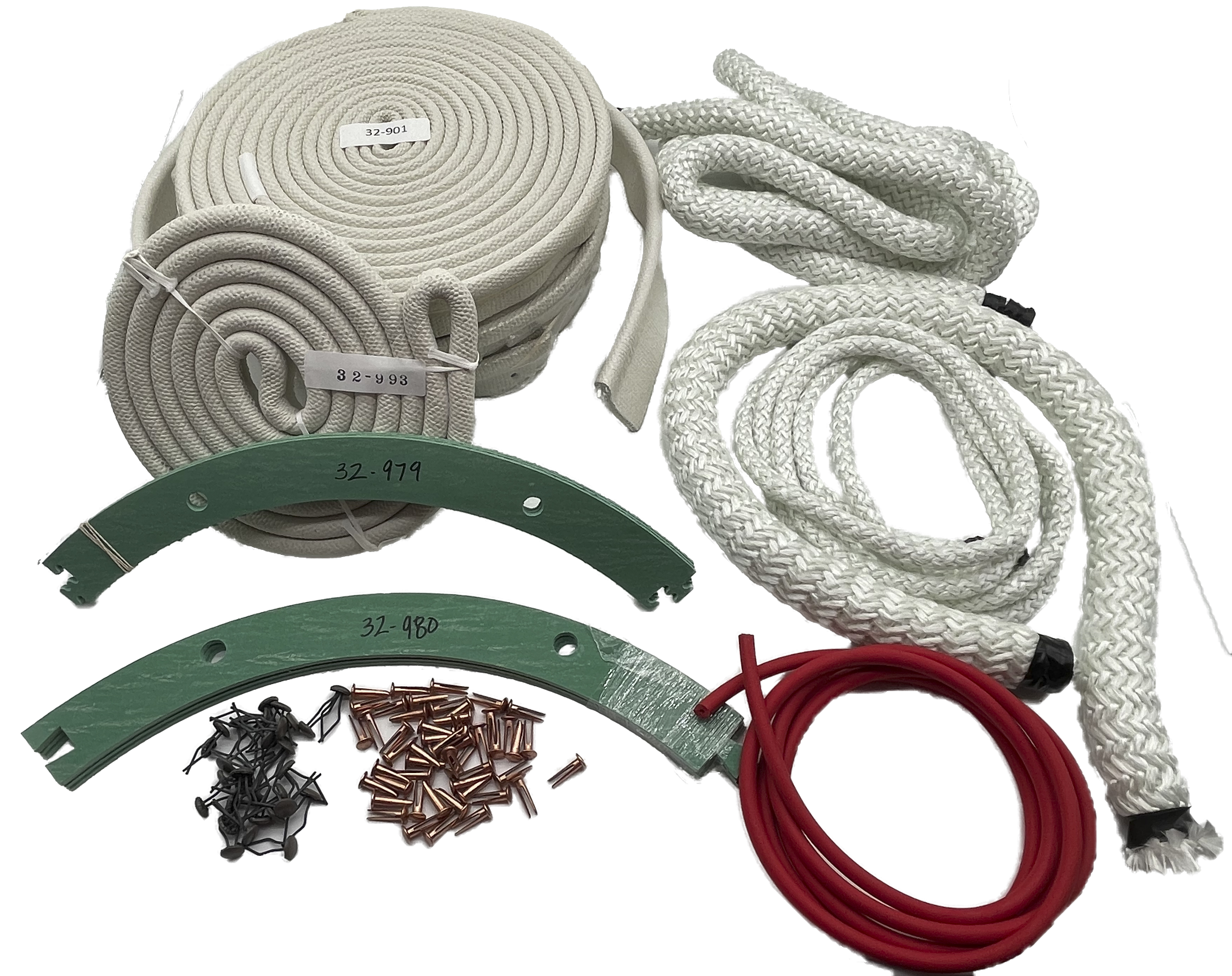

CB Fireside kits include a front and rear head gasket, burner drawer gasket, burner housing support gasket, inner door to burner housing gasket, fasteners, rivets, rubber bulk gaskets, rear baffle rope gasket, tadpole front baffle gasket, and rear door seal gaskets. These kits are truly all-in-one replacements! Some kits may vary depending on size or boiler horsepower, but see the descriptions below to see what is included in the fireside kit for your boiler. Be sure your boiler is ready for inspections! These kits are designed for all name brand boilers.

Shipping Time: 1-3 Business Day

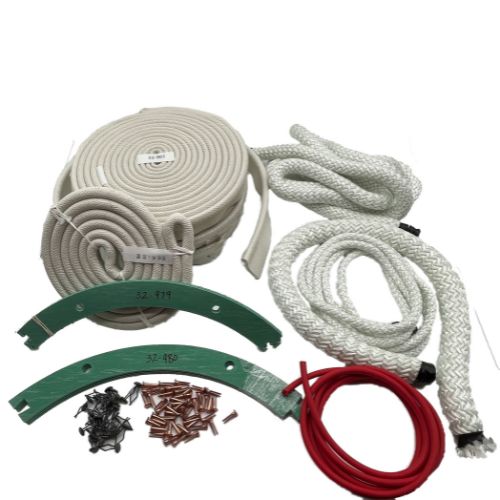

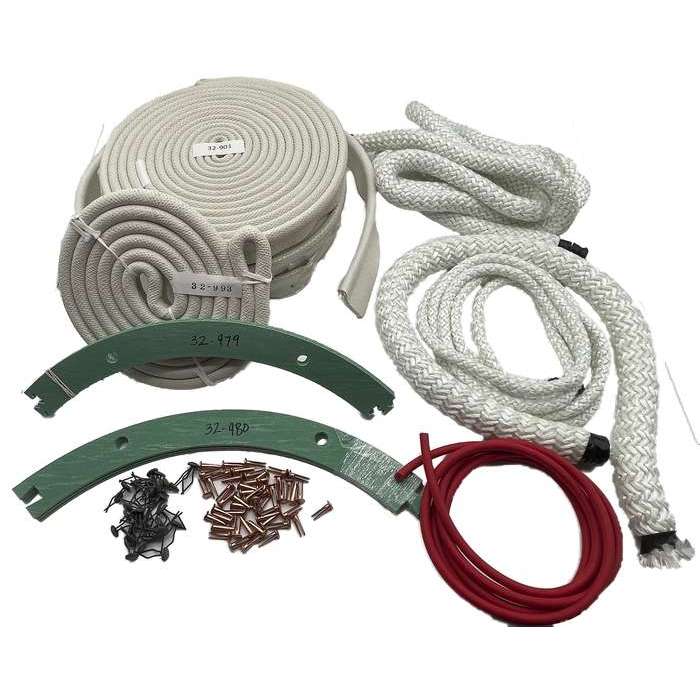

400-800 HP Boilers, 96" Dia. Fireside Kit Includes
Part # Quantity Description

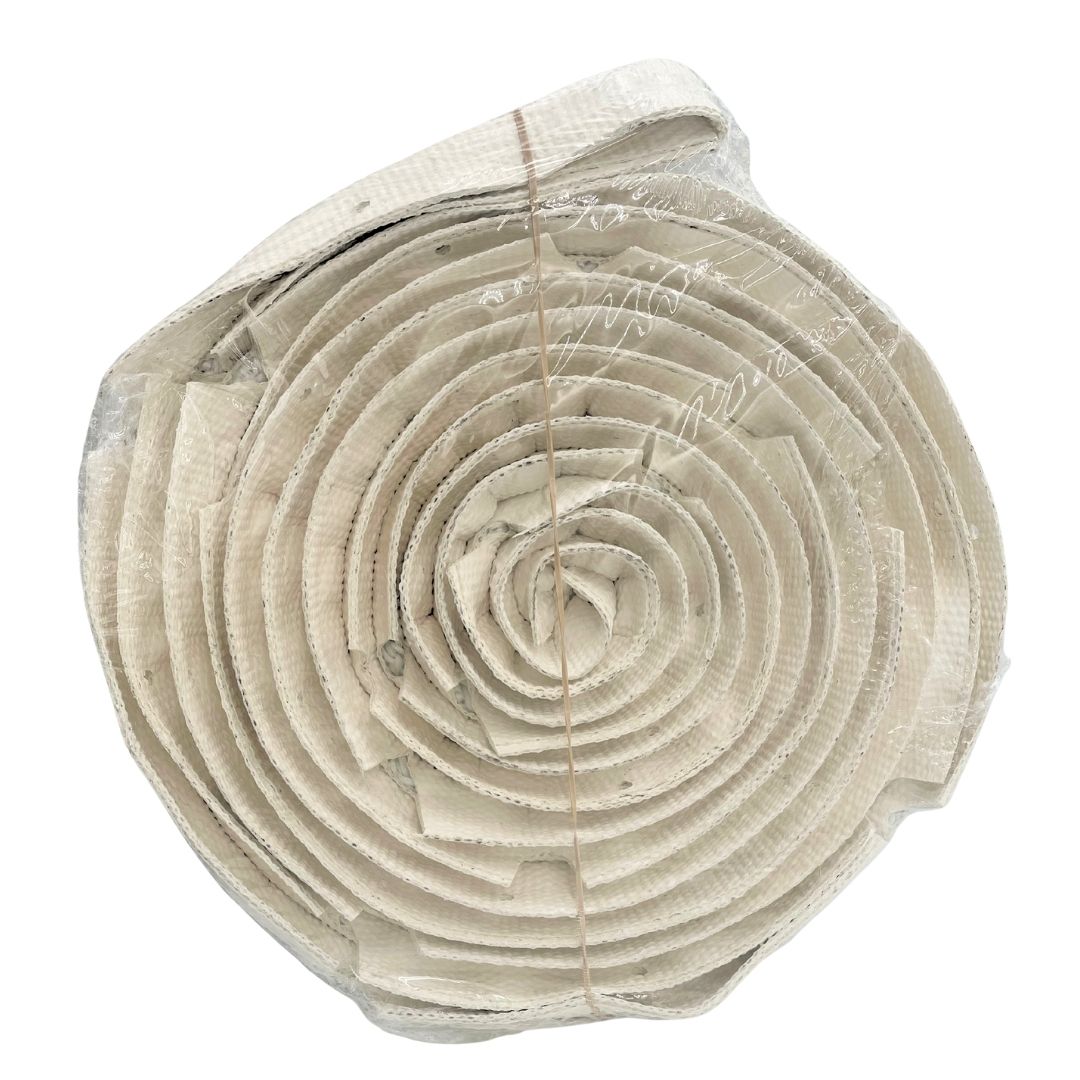

32-901 3 Gasket, Front and Rear Head Flange for 96" Boilers

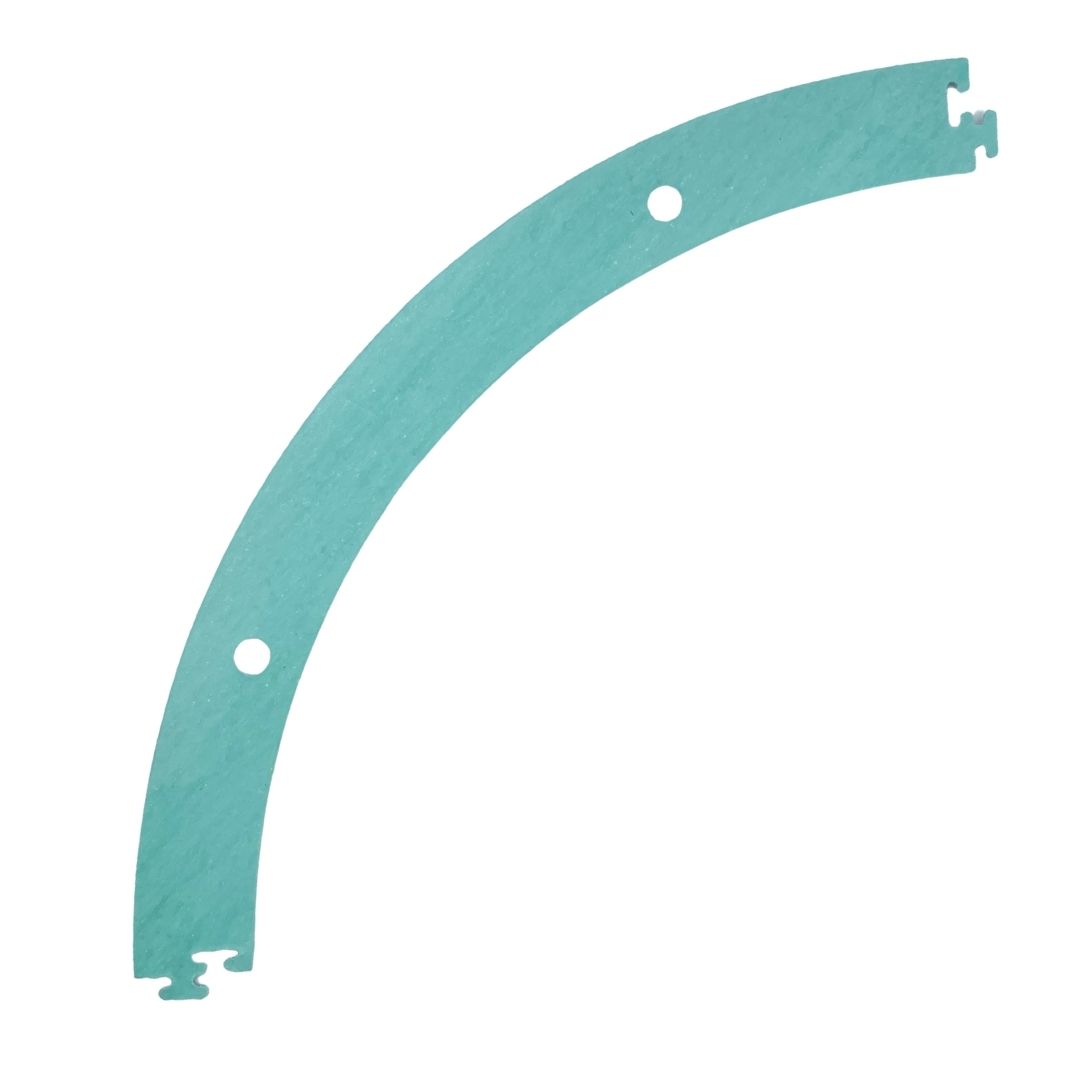

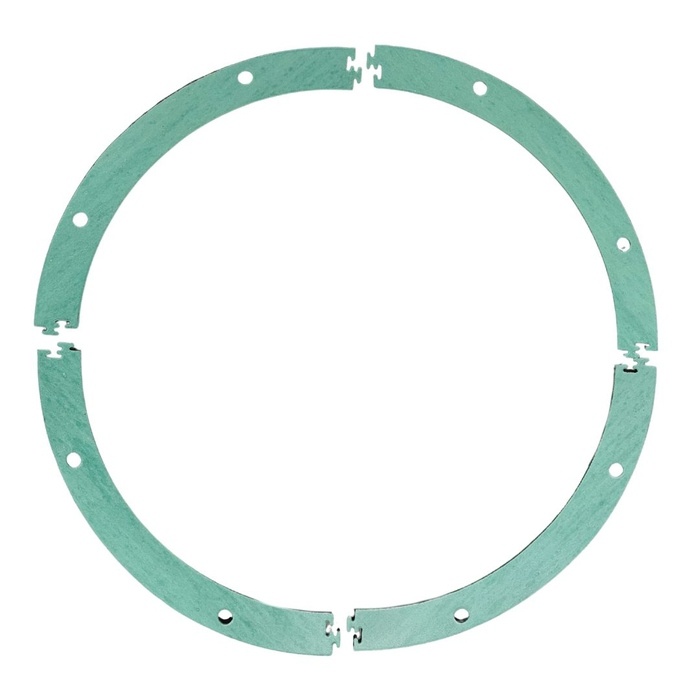

32-979 1 Gasket, Burner Drawer

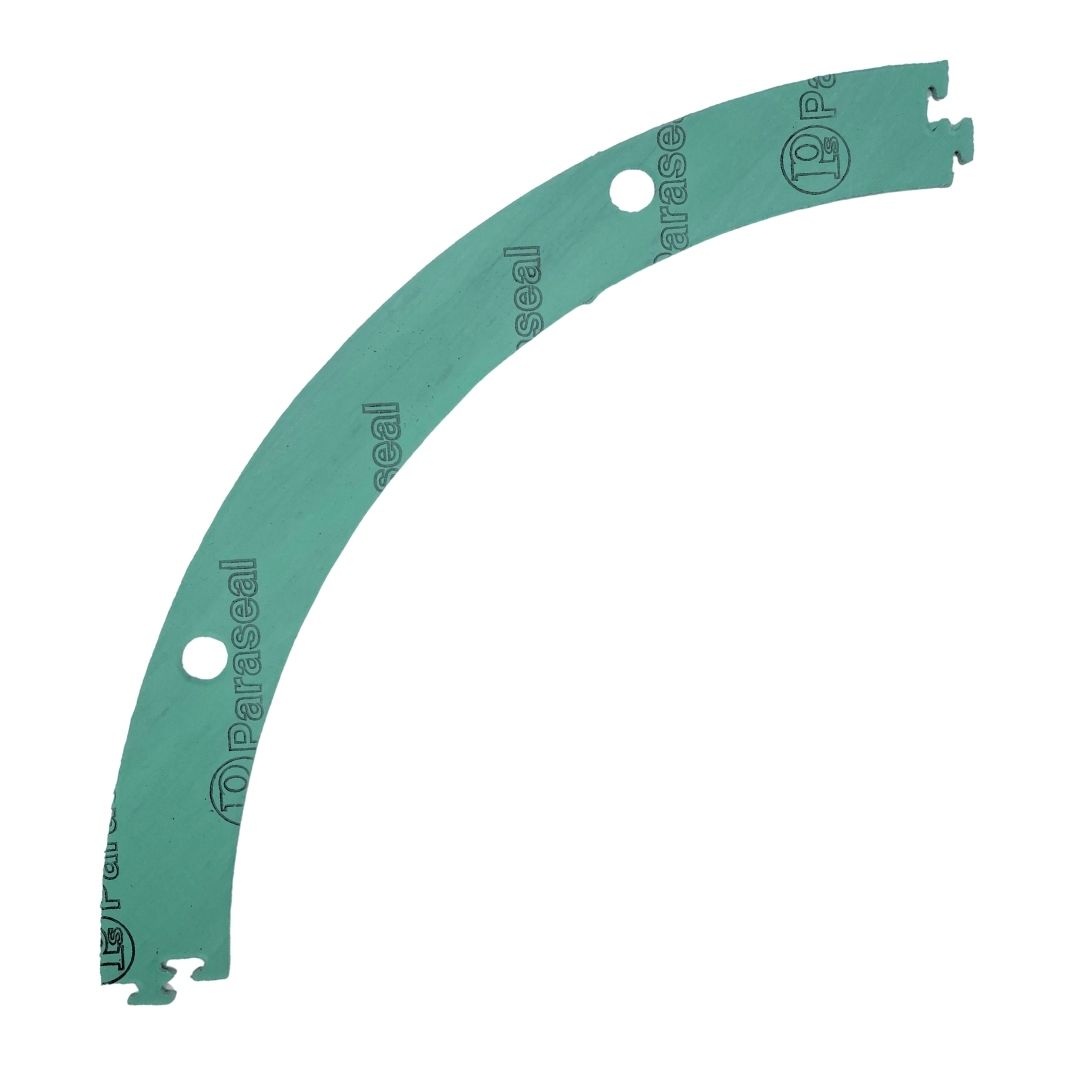

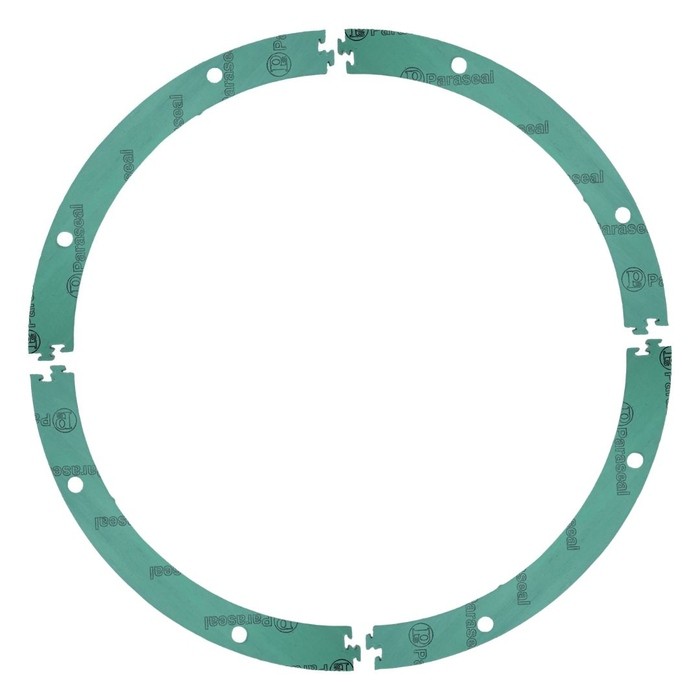

32-980 1 Gasket, Burner Housing Support

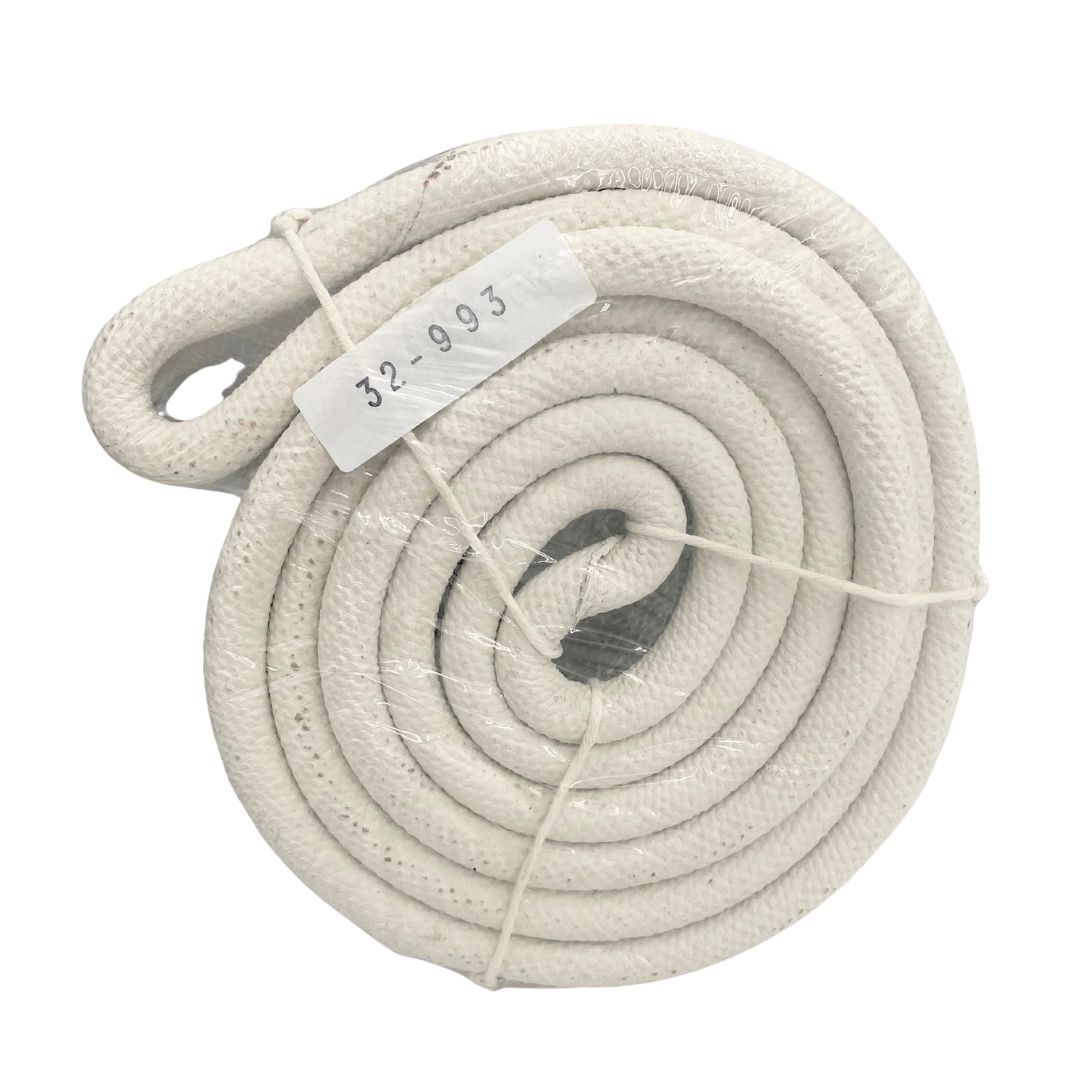

32-993 1 Gasket, Inner Door to Burner Housing for 96" Boiler
841-507 35 Fasteners
841-551 50 Rivets
853-003 8 Bulk Gasket, 3/8" Tubular, Rubber
853-924 1 Gasket, Rear Baffle Rope, 1-1/2" Dia. by 98" Length
853-394 1 Gasket, Tadpole Front Baffle 96" Boilers Pre-Cut to 98" Length
853-1009 1 Gasket, Rear Door Seal, 1/2" Dia. by 26' Length
853-1014 1 Gasket, Rear Door Seal, 1" Dia. 26' Length
Specifications
Part # Description Weight Price Qty
880-218 880-218BS Fireside Kit 400-800 HP for 96" Diameter Boiler 40.00 $592.71 Add to Cart
Item Name: Waterside Kit 880-212 to fit Cleaver Brooks
Description:

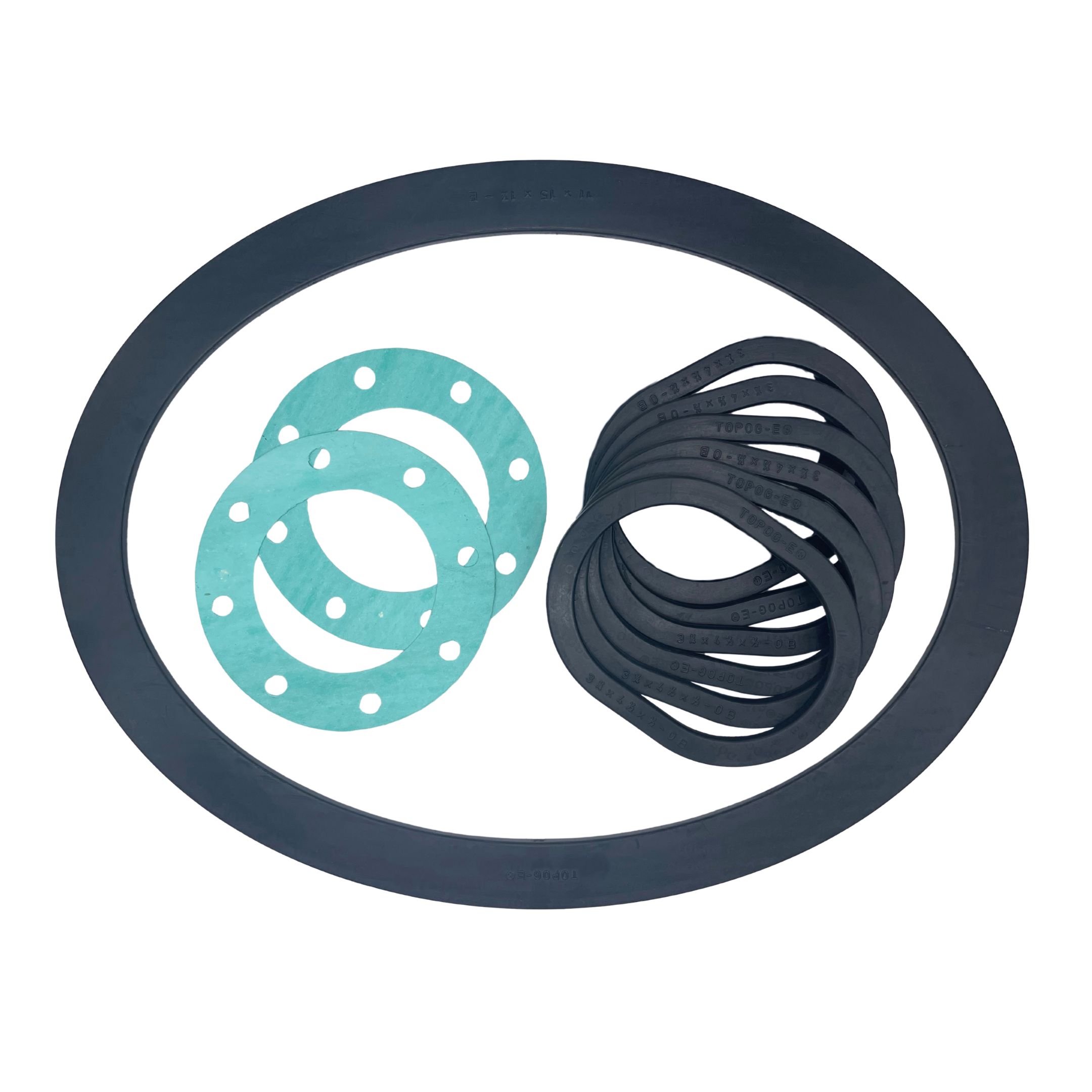

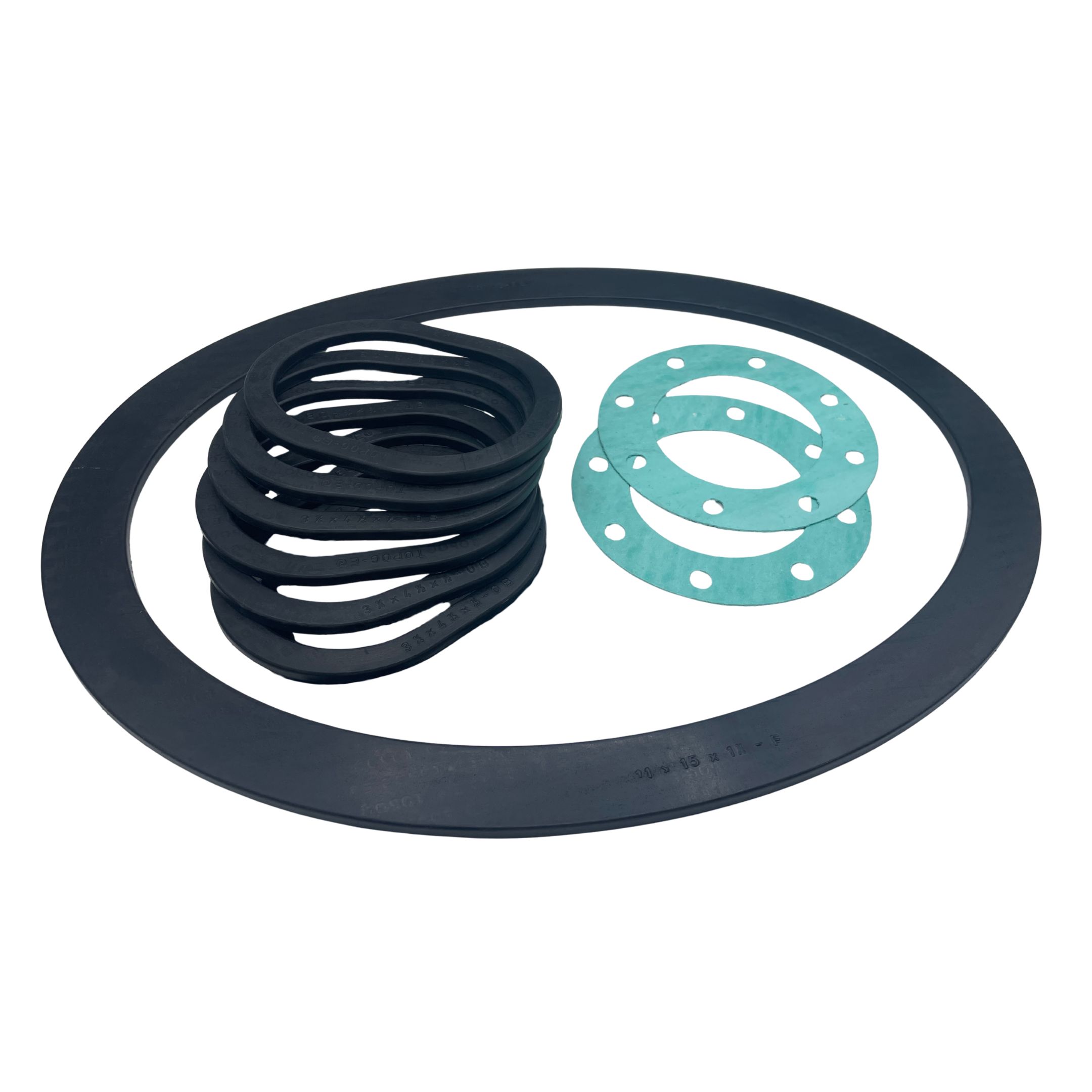

125-800 HP/ 96" Diameter Waterside Kit 880-212



Waterside kits include rubber topog-e gaskets as well as McDonnell Miller 150-14 water column head gaskets. Waterside kits are also available with spiral wound gaskets instead of the standard rubber gaskets.

Shipping Time: 1-3 Business Day
400-800 HP Boilers, 96" Dia. Waterside Kit Includes
Part # Quantity Description
853-936 1 11" x 15" x 1-1/4" Topog-E E Manhole Gasket
853-935 6 3-1/4" x 4-1/2" x 1/2" Topog-E OB Handhole Gasket
853-286 2 150-14 McDonnell Miller Water Column Head Gaskets
Specifications
Part # Description Weight Price Qty
880-212 880-212 Waterside Kit 125-800 HP for 96" Diameter Boiler 2.00 $94.44 Add to Cart
