Cleaver Brooks® Boiler Parts - Fireside & Waterside Kits | Boiler Supplies 250-350 HP Boilers, 78" Dia. "LE" Fireside Kit to fit Cleaver Brooks
NOTICE: Our fireside and waterside kits fit Cleaver Brooks® boilers and are comparable replacement gasket kits. They are not manufactured by Cleaver Brooks®. Boiler Supplies is not affiliated with Cleaver Brooks® in any way.

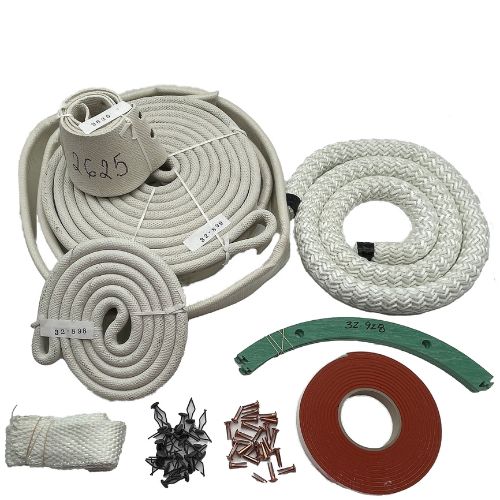

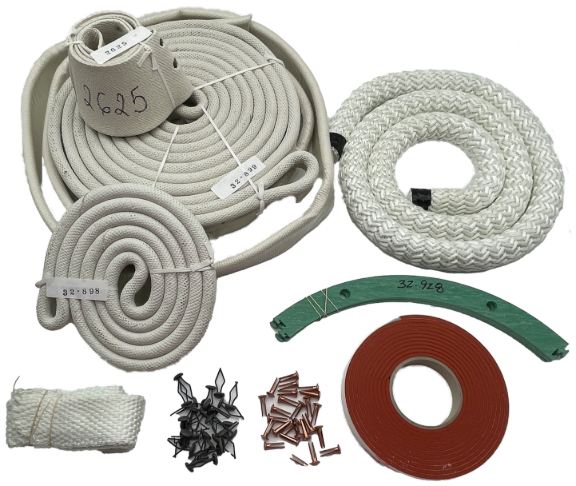

CB Fireside kits include a head gasket, burner housing to inner door gaskets, burner support gasket, rivets, fasteners, front baffle tadpole, silicone sponge tape, fiberglass rope, ceramic strip, gaskte tape, and fiberglass tape. These kits are truly all-in-one replacements! Some kits may vary depending on size or boiler horsepower, but see the descriptions below to see what is included in the fireside kit for your boiler.
| Part # | Quantity | Description |
|---|---|---|
| 32-899 | 2 | Head Gasket |
| 32-898 | 1 | Burner Housing to Inner Door |
| 32-928 | 1 | Burner Housing to Inner Door |

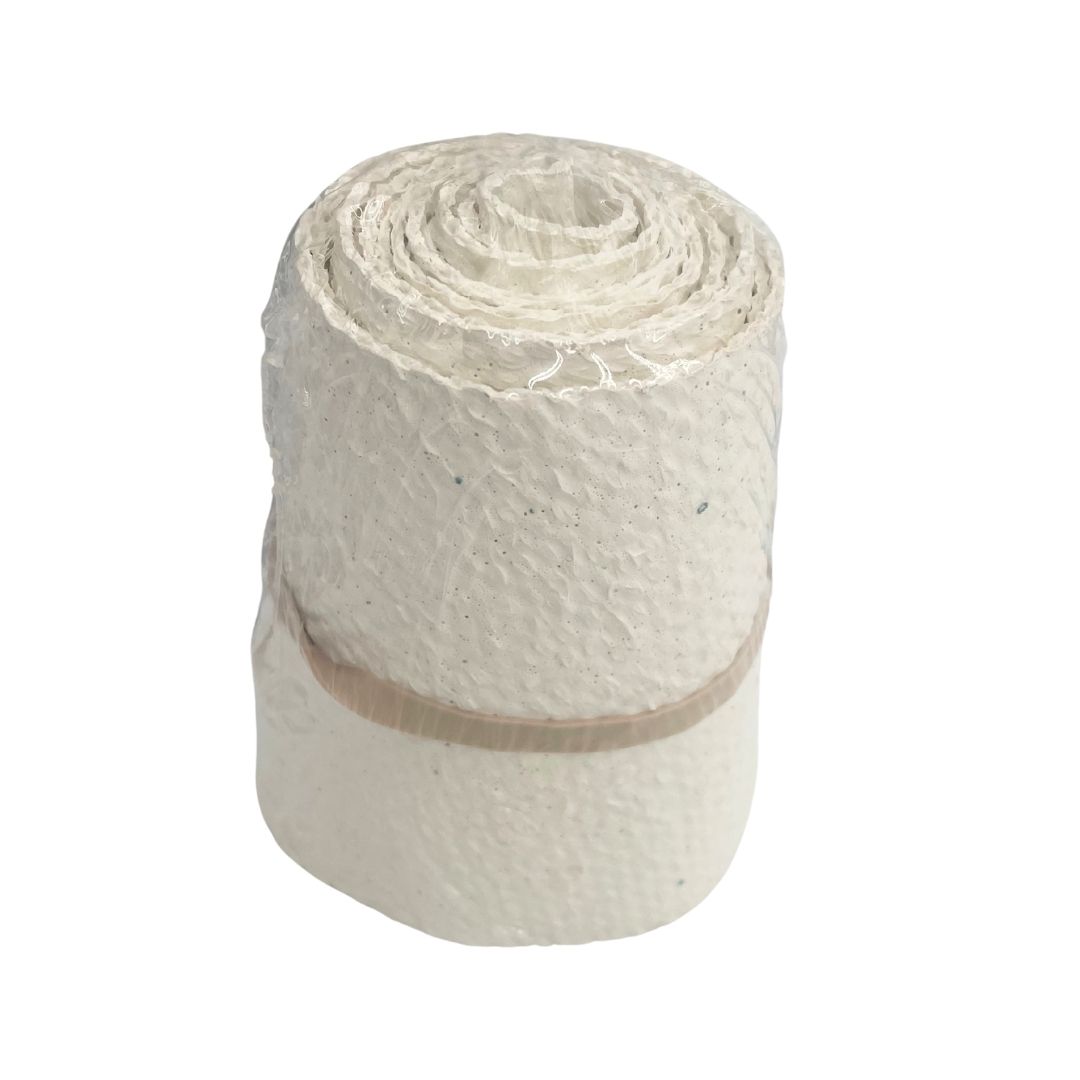

| 32-2625 | 1 | Burner Support Gasket |
| 841-551 | 25 | Rivets |
| 841-507 | 75 | Fastener |
| 853-994 | 1 | Front Baffle Tadpole |

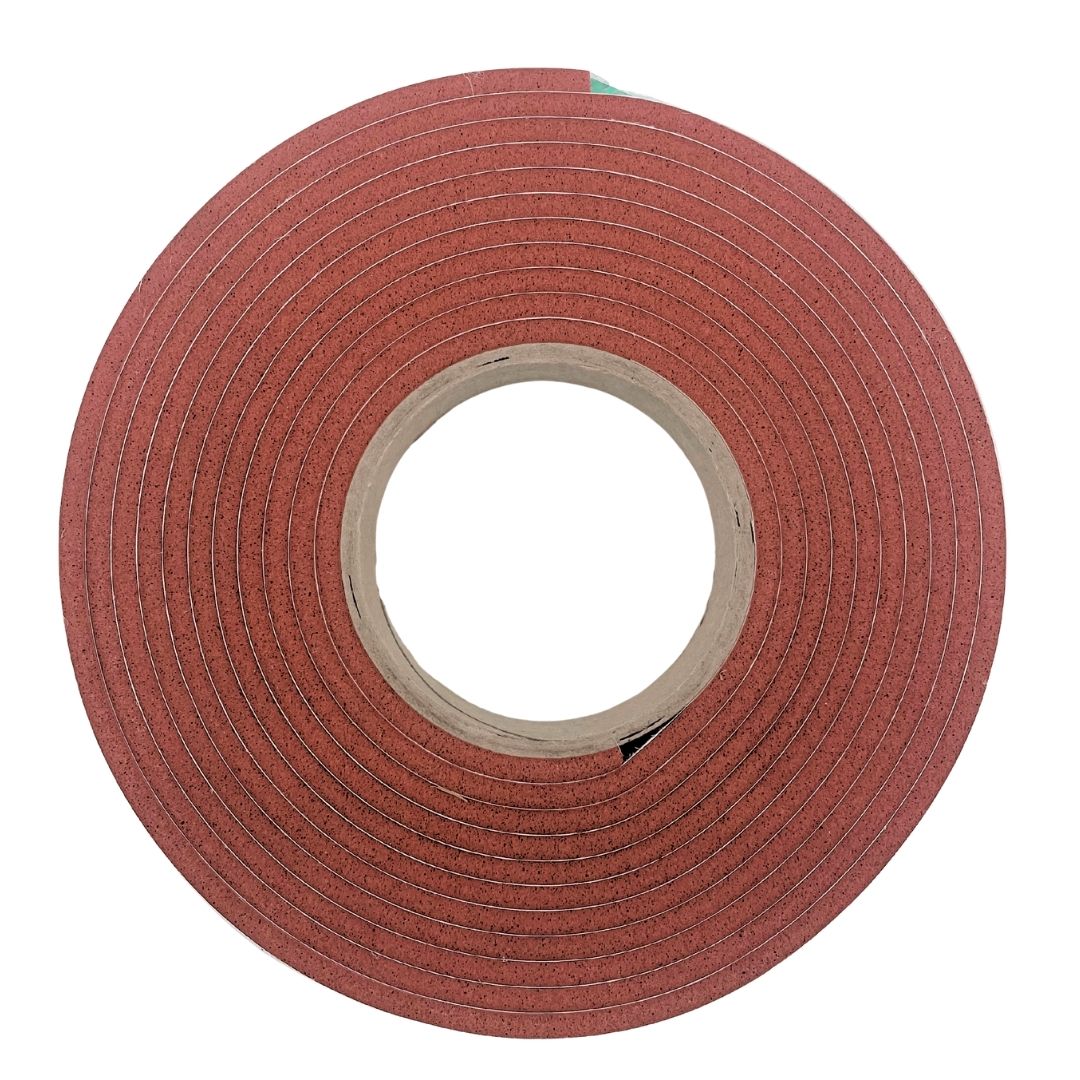

| 853-1017 | 1 | Silicone Sponge Tape |
| 853-1036 | 1 | 1-1/2" by 80" Fiberglass Rope for Rear Baffle |
| 872-749 | 1 | Ceramic Strip (Rear Baffle) 2" x 1/2" x 25' |
| 872-748 | 1 | Gasket Tape, 2" x 1/2" x 25' Ceramic Strip for Rear Head to Tube Sheet |

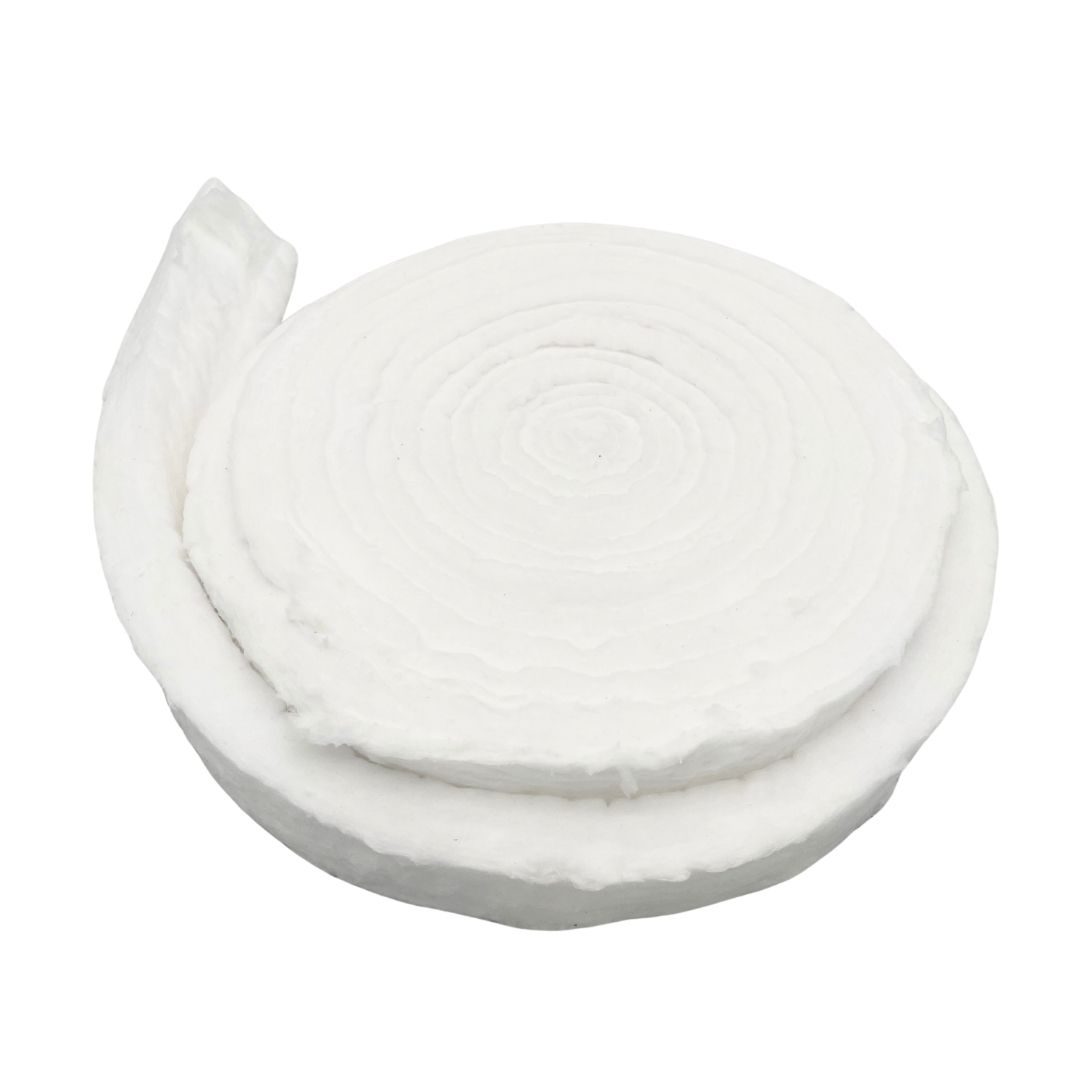

| 872-747 | 1 | 2" x 1" x 25' Ceramic Strip for Front Baffle Seal |
| 904-012 | 1 | 2" x 1/8" x 7' Fiberglass Tape for Front Baffle Seal |
| Part # | Description | Price | Qty | |
|---|---|---|---|---|
| 880-780 LE | 880-780 LE Fireside Kit 250-350 HP 78" Diameter Boiler | $712.30 | Add to Cart |
| Part # | Description | Price | Qty | |
|---|---|---|---|---|
| 32-899 | Head Gasket | $184.33 | Add to Cart | |
| 32-898 | Burner Housing to Inner Door | $67.83 | Add to Cart | |
| 32-928 | Burner Housing to Inner Door | $12.63 | Add to Cart | |
| 32-2625 | Burner Support Gasket | $188.18 | Add to Cart | |
| 841-551 | Rivets (100 Pack) | $43.00 | Add to Cart | |
| 841-507 | Fasteners (100 Pack) | $30.00 | Add to Cart | |
| 853-994 | Gasket, Tadpole Front Baffle 78" Boilers Pre-Cut to 12 ft Length | $93.90 | Add to Cart | |
| 853-1017 | Silicon Sponge Tape, 15Ft. Roll | $51.98 | Add to Cart | |
| 872-749 | Ceramic Strip (Rear Baffle) 2" x 1/2" x 25' | $20.00 | Add to Cart | |
| 872-748 | Gasket Tape, 2" x 1/2" x 25' Ceramic Strip for Rear Head to Tube Sheet | $25.00 | Add to Cart | |
| 872-747 | 2" x 1" x 25' Ceramic Strip for Front Baffle Seal | $25.00 | Add to Cart | |
| 904-012 | 2" x 1/8" x 7' Fiberglass Tape for Front Baffle Seal, 100 ft roll | $109.95 | Add to Cart | |
| 853-1036 | 1-1/2" by 80" Fiberglass Rope for Rear Baffle, 1 1/2" x 25' | $180.00 | Add to Cart |
