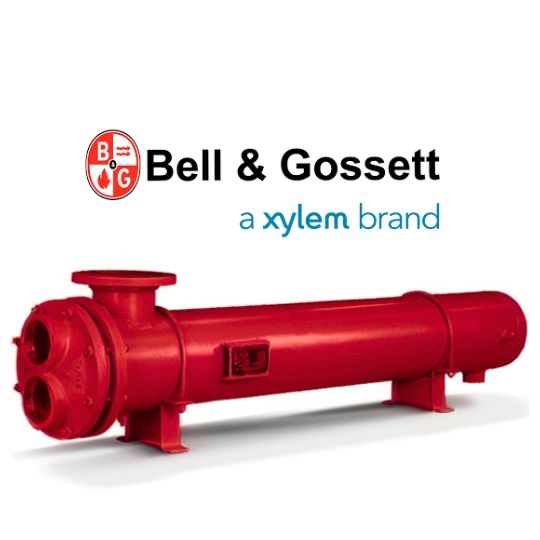

Bell & Gossett Steam to Water Double Wall Heat Exchanger In Stock

Manufacturer:
Bell & Gossett
Description:

Bell & Gossett Double wall heat exchangers are used mostly for potable water & cooling system applications, or where cross contamination cannot occur.

SU/WU heat exchangers utilize a U-Tube removable bundle construction. The SU product is designed for applications using steam on the shell to heat fluids in the tubes and the WU product is designed as a liquid to liquid heat exchanger. All welded rugged carbon steel shell, with an option of stainless steel, provides maximum durability.

• Removable bundle for ease of inspection and replacement.

• This design allows for differential thermal expansion between shell an tubes as well as between individual tubes.

• The result is a heat exchanger capable of withstanding thermal shock.

• The bundle design and tube layout allow for the maximum heat transfer surface area per given shell size.

• The SU/WU exchangers are also available with Diamondback double wall tube construction and heavy duty construction for high temperature applications as well as tank heater designs.

Materials:

Standard Copper (tubes), carbon steel (shell, tube sheet, baffles) Optional Brass (tubes, tube sheets, baffles), bronze (heads), stainless steel (tubes, tube sheets, heads, shells, baffles), 90/10 Cu-Ni (tubes)





Item Name: Bell & Gossett Steam to Liquid Double Wall Heat Exchangers
Description:

Browse Bell & Gossett Steam to Liquid Double Wall Heat Exchangers in the Boilersupplies.com catalog including Item #, Type, Heating Surface, Design Pressure.Bell & Gossett Steam to Liquid and liquid to liquid Heat Exchanger and Replacement Tube Bundles are  ASME & TEMA code Heat Exchangers along with Section 1 ,IV,VIII.Steam,water,oil,gas,air units are available. Stainless Steel, Copper,Navel Brass.

Lead Time: Expedite Shipment Available Factory Build Item & Sales Person will advise lead time upon Quote Request.
Construction Features and Materials
SHELL DIAMETER TEST PRES. TUBES PSI BRASS UNIT HEAD BRASS UNIT TUBE SHEETS SHELL COLLAR TUBES INNER/OUTER TUBE SUPPORTS NUTS & BOLTS
4
6
8
10
300
300
300
250 (2 PASS)
300 (4 PASS)
6 CAST BRASS BONNET 2 ROLLED NAV BRASS STAINLESS STEEL 3 STEEL 4COPPER/COPPER
90/10 CuNi/COPPER
316SS/COPPER
5STEEL
BRASS
STEEL
Specifications
Item # Type Heating Surface, ft² Design Pressure Tube Sheet Material Approx. Shipping Weight, lbs. Head Material
DSU42-2 2 Pass 4.5 150 Steel 65 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU43-2 2 Pass 6.8 150 Steel 82 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU44-2 2 Pass 9.2 150 Steel 98 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU45-2 2 Pass 11.5 150 Steel 115 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU46-2 2 Pass 13.9 150 Steel 131 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU47-2 2 Pass 16.9 150 Steel 148 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU42-4 4 Pass 4.5 150 Steel 65 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU43-4 4 Pass 6.8 150 Steel 82 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU44-4 4 Pass 9.2 150 Steel 98 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU45-4 4 Pass 11.5 150 Steel 115 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU46-4 4 Pass 13.9 150 Steel 131 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU47-4 4 Pass 16.9 150 Steel 148 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU62-2 2 Pass 8 150 Steel 91 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU63-2 2 Pass 12.7 150 Steel 123 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU64-2 2 Pass 17.4 150 Steel 156 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU65-2 2 Pass 22.1 150 Steel 188 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU66-2 2 Pass 26.8 150 Steel 221 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU67-2 2 Pass 31.5 150 Steel 253 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU68-2 2 Pass 36.2 150 Steel 286 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU62-4 4 Pass 8 150 Steel 91 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU63-4 4 Pass 12.7 150 Steel 123 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU64-4 4 Pass 17.4 150 Steel 156 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU65-4 4 Pass 22.1 150 Steel 188 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU66-4 4 Pass 26.8 150 Steel 221 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU67-4 4 Pass 31.5 150 Steel 253 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU68-4 4 Pass 36.2 150 Steel 286 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU62-6 6 Pass 6 150 Steel 91 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU63-6 6 Pass 9.6 150 Steel 123 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU64-6 6 Pass 13.1 150 Steel 156 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU65-6 6 Pass 16.7 150 Steel 188 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU66-6 6 Pass 20.2 150 Steel 221 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU67-6 6 Pass 23.8 150 Steel 253 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU68-6 6 Pass 27.3 150 Steel 286 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU82-2 2 Pass 15 150 Steel 152 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU83-2 2 Pass 23 150 Steel 201 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU84-2 2 Pass 32 150 Steel 251 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU85-2 2 Pass 41 150 Steel 301 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU86-2 2 Pass 49 150 Steel 350 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU87-2 2 Pass 58 150 Steel 400 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU88-2 2 Pass 67 150 Steel 450 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU89-2 2 Pass 75 150 Steel 499 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU82-4 4 Pass 15 150 Steel 152 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU83-4 4 Pass 23 150 Steel 201 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU84-4 4 Pass 32 150 Steel 251 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU85-4 4 Pass 41 150 Steel 301 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU86-4 4 Pass 49 150 Steel 350 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU87-4 4 Pass 58 150 Steel 400 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU88-4 4 Pass 67 150 Steel 450 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU89-4 4 Pass 75 150 Steel 499 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU82-6 6 Pass 12 150 Steel 152 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU83-6 6 Pass 19 150 Steel 201 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU84-6 6 Pass 26 150 Steel 251 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU85-6 6 Pass 33 150 Steel 301 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU86-6 6 Pass 41 150 Steel 350 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU87-6 6 Pass 48 150 Steel 400 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU88-6 6 Pass 55 150 Steel 450 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU 89-6 6 Pass 62 150 Steel 499 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU102-2 2 Pass 27 125 Steel 254 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU103-2 2 Pass 42 125 Steel 324 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU104-2 2 Pass 56 125 Steel 392 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU105-2 2 Pass 71 125 Steel 462 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU106-2 2 Pass 86 125 Steel 531 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU107-2 2 Pass 101 125 Steel 601 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU108-2 2 Pass 116 125 Steel 670 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU109-2 2 Pass 131 125 Steel 740 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU1010-2 2 Pass 146 125 Steel 810 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU102-4 4 Pass 25 150 Steel 254 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU103-4 4 Pass 39 150 Steel 324 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU104-4 4 Pass 53 150 Steel 392 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU105-4 4 Pass 67 150 Steel 462 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU106-4 4 Pass 82 150 Steel 531 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU107-4 4 Pass 96 150 Steel 601 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU108-4 4 Pass 110 150 Steel 670 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU109-4 4 Pass 124 150 Steel 740 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU1010-4 4 Pass 138 150 Steel 810 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU102-6 6 Pass 21 150 Steel 254 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU103-6 6 Pass 33 150 Steel 324 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU104-6 6 Pass 45 150 Steel 392 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU105-6 6 Pass 56 150 Steel 462 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU106-6 6 Pass 68 150 Steel 531 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU107-6 6 Pass 80 150 Steel 601 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU108-6 6 Pass 92 150 Steel 670 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU109-6 6 Pass 104 150 Steel 740 Cast Iron Bonnet Add to RFQ Dimensional Chart
DSU1010-6 6 Pass 116 150 Steel 810 Cast Iron Bonnet Add to RFQ Dimensional Chart
