Babbitt Chain Wheels & Pocket Wheels For Valves | Boiler Supplies Cast Iron Safetywheel Configuration

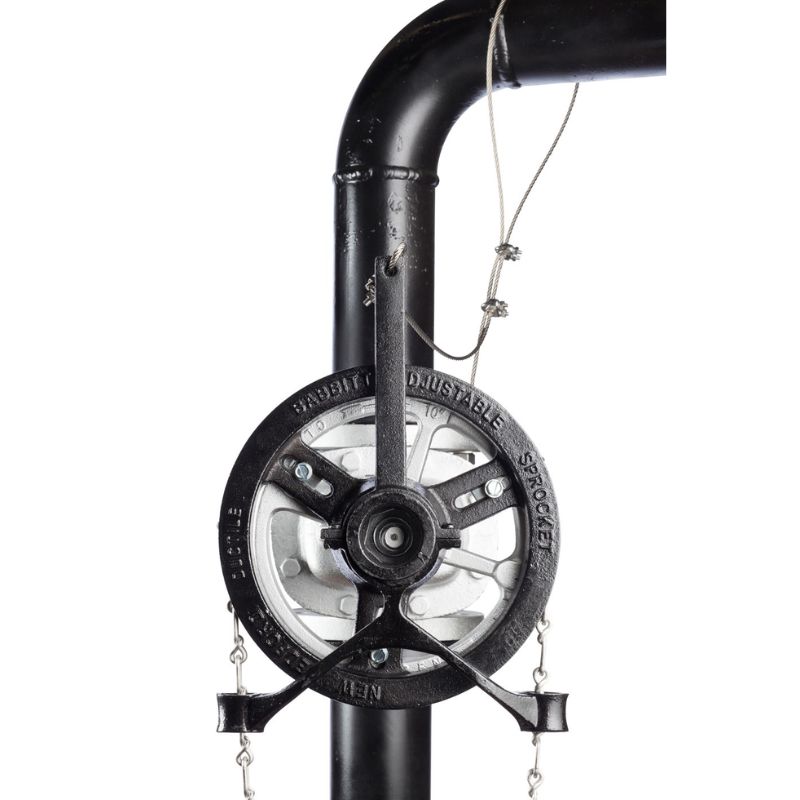

Safetywheel chainwheel with cast iron rim and malleable guide arms. All CIRG units come complete with rim, chain guide, zinc-plated carbon steel attachment set, and instructions for installation.
| Item # |
Description Chain Operator |
Valve Handwheel OD (inches) |
Chain Operator # |
Wheel Rim OD (inches) |
Uses Chain Size |
Price | |
|---|---|---|---|---|---|---|---|
| CIRGSW-0 |
Cast Iron Safetywheel Handwheel Only CIRGSW-0 |
2 - 4" | 0 | 4" | 2 | $163.95 | Add to RFQ |
| CIRGSW-0 |
Cast Iron Safetywheel Chain Only CIRGSW-0 |
2 - 4" | 0 | 4" | 2 | $3.20 | Add to RFQ |
| CIRGSW-0 |
Cast Iron Safetywheel Master Link CIRGSW-0 |
2 - 4" | 0 | 4" | 2 | $13.00 | Add to RFQ |
| CIRGSW-1 |
Cast Iron Safetywheel Handwheel Only CIRGSW-1 |
4-1/4 - 5-3/4" | 1 | 5-3/4" | 1/0 | $175.95 | Add to RFQ |
| CIRGSW-1 |
Cast Iron Safetywheel Chain Only CIRGSW-1 |
4-1/4 - 5-3/4" | 1 | 5-3/4" | 1/0 | $4.00 | Add to RFQ |
| CIRGSW-1 |
Cast Iron Safetywheel Master Link CIRGSW-1 |
4-1/4 - 5-3/4" | 1 | 5-3/4" | 1/0 | $13.00 | Add to RFQ |
| CIRGSW-1.5 |
Cast Iron Safetywheel Handwheel Only CIRGSW-1.5 |
6 - 7-1/2" | 1.5 | 7-1/2" | 1/0 | $221.95 | Add to RFQ |
| CIRGSW-1.5 |
Cast Iron Safetywheel Chain Only CIRGSW-1.5 |
6 - 7-1/2" | 1.5 | 7-1/2" | 1/0 | $4.00 | Add to RFQ |
| CIRGSW-1.5 |
Cast Iron Safetywheel Master Link CIRGSW-1.5 |
6 - 7-1/2" | 1.5 | 7-1/2" | 1/0 | $13.00 | Add to RFQ |
| CIRGSW-2 |
Cast Iron Safetywheel Handwheel Only CIRGSW-2 |
7-3/4 - 9" | 2 | 9" | 1/0 | $256.95 | Add to RFQ |
| CIRGSW-2 |
Cast Iron Safetywheel Chain Only CIRGSW-2 |
7-3/4 - 9" | 2 | 9" | 1/0 | $4.00 | Add to RFQ |
| CIRGSW-2 |
Cast Iron Safetywheel Master Link CIRGSW-2 |
7-3/4 - 9" | 2 | 9" | 1/0 | $13.00 | Add to RFQ |
| CIRGSW-2.5 |
Cast Iron Safetywheel Handwheel Only CIRGSW-2.5 |
9-1/4 - 12-1/2" | 2.5 | 12" | 4/0 | $338.95 | Add to RFQ |
| CIRGSW-2.5 |
Cast Iron Safetywheel Chain Only CIRGSW-2.5 |
9-1/4 - 12-1/2" | 2.5 | 12" | 4/0 | $6.80 | Add to RFQ |
| CIRGSW-2.5 |
Cast Iron Safetywheel Master Link CIRGSW-2.5 |
9-1/4 - 12-1/2" | 2.5 | 12" | 4/0 | $15.00 | Add to RFQ |
| CIRGSW-3 |
Cast Iron Safetywheel Handwheel Only CIRGSW-3 |
12-3/4 - 15-1/2" | 3 | 15-1/2" | 4/0 | $437.95 | Add to RFQ |
| CIRGSW-3 |
Cast Iron Safetywheel Chain Only CIRGSW-3 |
12-3/4 - 15-1/2" | 3 | 15-1/2" | 4/0 | $6.80 | Add to RFQ |
| CIRGSW-3 |
Cast Iron Safetywheel Master Link CIRGSW-3 |
12-3/4 - 15-1/2" | 3 | 15-1/2" | 4/0 | $15.00 | Add to RFQ |
| CIRGSW-3.5 |
Cast Iron Safetywheel Handwheel Only CIRGSW-3.5 |
15-3/4 - 19" | 3.5 | 18-1/2" | 4/0 | $670.95 | Add to RFQ |
| CIRGSW-3.5 |
Cast Iron Safetywheel Chain Only CIRGSW-3.5 |
15-3/4 - 19" | 3.5 | 18-1/2" | 4/0 | $6.80 | Add to RFQ |
| CIRGSW-3.5 |
Cast Iron Safetywheel Master Link CIRGSW-3.5 |
15-3/4 - 19" | 3.5 | 18-1/2" | 4/0 | $15.00 | Add to RFQ |
| CIRGSW-4 |
Cast Iron Safetywheel Handwheel Only CIRGSW-4 |
19-1/4 - 22" | 4 | 21-1/2" | 5/0 | $927.95 | Add to RFQ |
| CIRGSW-4 |
Cast Iron Safetywheel Chain Only CIRGSW-4 |
19-1/4 - 22" | 4 | 21-1/2" | 5/0 | $7.60 | Add to RFQ |
| CIRGSW-4 |
Cast Iron Safetywheel Master Link CIRGSW-4 |
19-1/4 - 22" | 4 | 21-1/2" | 5/0 | $17.00 | Add to RFQ |
| CIRGSW-4.5 |
Cast Iron Safetywheel Handwheel Only CIRGSW-4.5 |
22-1/2 - 26" | 4.5 | 25-3/4" | 5/0 | $1,254.95 | Add to RFQ |
| CIRGSW-4.5 |
Cast Iron Safetywheel Chain Only CIRGSW-4.5 |
22-1/2 - 26" | 4.5 | 25-3/4" | 5/0 | $7.60 | Add to RFQ |
| CIRGSW-4.5 |
Cast Iron Safetywheel Master Link CIRGSW-4.5 |
22-1/2 - 26" | 4.5 | 25-3/4" | 5/0 | $17.00 | Add to RFQ |
| CIRGSW-5 |
Cast Iron Safetywheel Handwheel Only CIRGSW-5 |
26-1/4 - 30" | 5 | 30" | 5/0 | $1,487.95 | Add to RFQ |
| CIRGSW-5 |
Cast Iron Safetywheel Chain Only CIRGSW-5 |
26-1/4 - 30" | 5 | 30" | 5/0 | $7.60 | Add to RFQ |
| CIRGSW-5 |
Cast Iron Safetywheel Master Link CIRGSW-5 |
26-1/4 - 30" | 5 | 30" | 5/0 | $17.00 | Add to RFQ |
| CIRGSW-5-SP4 |
Cast Iron Safetywheel Handwheel Only CIRGSW-5-SP4 |
30-1/4 - 36" | 5-SP4 | 36" | 5/0 | $1,545.95 | Add to RFQ |
| CIRGSW-5-SP4 |
Cast Iron Safetywheel Chain Only CIRGSW-5-SP4 |
30-1/4 - 36" | 5-SP4 | 36" | 5/0 | $7.60 | Add to RFQ |
| CIRGSW-5-SP4 |
Cast Iron Safetywheel Master Link CIRGSW-5-SP4 |
30-1/4 - 36" | 5-SP4 | 36" | 5/0 | $17.00 | Add to RFQ |
| Babbitt Part # / Wheel Size # | CIRGSW-0 | CIRGSW-1 | CIRGSW-1.5 | CIRGSW-2 | CIRGSW-2.5 | CIRGSW-3 | CIRGSW-3.5 | CIRGSW-4 | CIRGSW-4.5 | CIRGSW-5 |
|---|---|---|---|---|---|---|---|---|---|---|
| A- OVERALL HEIGHT | 4-5/8" | 6-3/8" | 7-3/4" | 10-1/2" | 12-1/2" | 15-1/2" | 18-1/2" | 21-1/2" | 25-3/4" | 30-1/4" |
| B- INNER BOLT CIRCLE | 1-1/2" | 2-1/2" | 3-1/2" | 4-1/2" | 5-1/2" | 8-1/2" | 11-1/2" | 11-1/2" | 14-1/2" | 18-3/4" |
| C- OUTER BOLT CIRCLE | 1-7/8" | 3-1/2" | 5" | 6-5/8" | 9-1/4" | 12-3/8" | 15-1/2" | 17-3/4" | 21-1/4" | 25-1/4" |
| D- HUB OPENING (DIA) | 1/2" | 7/8" | 1" | 2-1/8" | 2-1/8" | 2-1/8" | 3" | 3" | 3" | 3" |
| E- SLOT SIZE (WIDTH) | 1-5/16" | 3/8" | 3/8" | 3/8" | 7/16" | 7/16" | 7/16" | 5/8" | 5/8" | 5/8" |
| F- REAR OPENING | 3/4" | 1-1/2" | 1-7/8" | 3-1/8" | 3-1/2" | 3-1/2" | 4-7/8" | 4-7/8" | 4-5/8" | 4-3/4" |
| G- HUB DEPTH (SHOULDER TO REAR) | 1-1/8" | 1-1/2" | 1-7/16" | 1-3/8" | 1-3/4" | 1-7/8" | 1-7/8" | 1-7/8" | 1-7/8" | 2" |
| H- RIM THICKNESS | 7/8" | 1-1/8" | 1-1/8" | 1-1/8" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | 1-1/2" |
| I- OVERALL DEPTH | 1-3/4" | 2-1/4" | 2-3/8" | 2-3/8" | 2-5/8" | 2-5/8" | 3-1/8" | 3-1/8" | 3-1/8" | 3-1/8" |
