Transparent & Reflex Flat Gauge Glass Kits | Boiler Supplies Q-Silicate Reflex & Transparent Flat Glass
Quality borosilicate flat gage glasses are now the industry standard in boiler glass and is now available at economy pricing.
*NOTE* Quantity pricing is available upon request for sizes 7 though 9 in either plain or reflex.
Quality Transparent and Reflex Replacement glass for Penberthy, Macbeth, Maxos, Klingler, Schott, Jerguson, Clark Reliance, Inferno, Monax, Pyrex, & Ilmadur

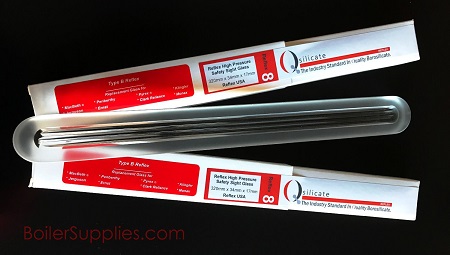

Designed to use in armored-type liquid level gages, Type-B Reflex Gage Glass is made for extra ease in locating liquid levels. This gage glass has vertical prisms extending the full viewing length of the glass. The prism side faces the liquid. The sections of the prisms not covered with the liquid reflect light spectacularly. Therefore, the liquid level stands out very clearly from a long distance away.
| Part # | Length | Max Operating Pressure | Max Working Pressure | Coefficient of Expansion | Annealing Temperature | Bend Resistance | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|

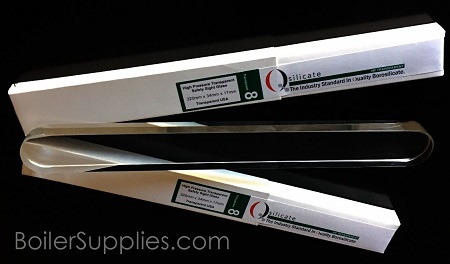

| AQ7 | 280mm x 34mm x 17mm | 500°C or 932°f | 3,600psi | 3.3 x 10−7 | 800°c or 1452°f | 15,957 psi | #7 Q-Silicate Clear Transparent Glass | 1.00 | $28.82 | Add to Cart |
Sizes #7-9 Available
| Part # | Length | Max Operating Pressure | Max Working Pressure | Coefficient of Expansion | Annealing Temperature | Bend Resistance | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BQ7 | 280mm x34mm x 17mm | 500°C or 932°f | 2,900psi | 3.3 x 10−7 | 800°c or 1452°f | 15,957 psi | #7 Q-Silicate Reflex Glass | 1.00 | $19.52 | Add to Cart | |
| BQ8 | 320mm x34mm x 17mm | 500°C or 932°f | 2,900psi | 3.3 x 10−7 | 800°c or 1452°f | 15,957 psi | #8 Q-Silicate Reflex Glass | 1.00 | $23.54 | Add to Cart | |
| BQ9 | 340mm x34mm x 17mm | 500°C or 932°f | 2,900psi | 3.3 x 10−7 | 800°c or 1452°f | 15,957 psi | #9 Q-Silicate Reflex Glass | 1.00 | $27.28 | Add to Cart |
