E-Pro Handhole and Manhole boiler gaskets stop leaks and end corrosion around boiler handholes and boiler manholes in steam and hot water boiler, air tanks, and water heaters.
The cost of some boiler gaskets can be quite high when you consider down-time, leakage and corrosion caused be the installation of inferior gaskets. E-Pro gaskets offer the level of service you expect from high pressure, high temperature handhole and manhole gaskets.
E-Pro gaskets highly rated material ensures that our gaskets will provide leak-proof, continuous operation until your next scheduled shut-down. Proprietary elastomer is rated at 385°F (195C) wet heat and 185 PSIG (13 BAR).
***Ratings are based upon actual field performance. Since installation and boiler maintenance is beyond our control, we cannot guarantee results***

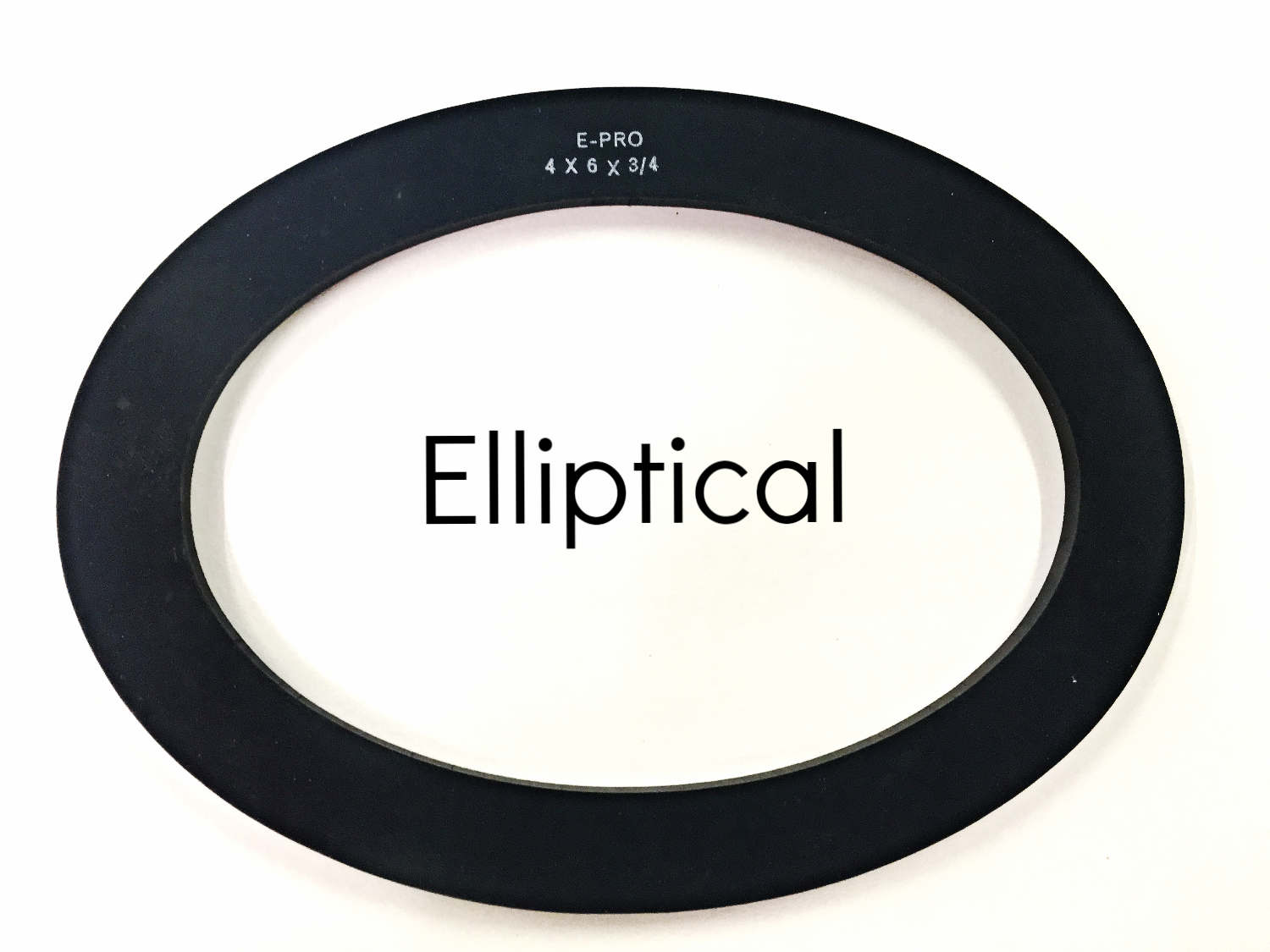

Shaped like an egg
| Part # | A | B | C | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|
| 318-001 | 2" | 3" | 3/8E Flange | 0.25 | $4.21 | Add to Cart | |
| 318-002 | 2 1/4" | 3 1/4" | 1/2E" Flange | 0.25 | $4.21 | Add to Cart | |
| 318-003 | 2 3/4" | 3 3/4" | 1/2E Flange | 0.25 | $4.72 | Add to Cart | |
| 318-004 | 2 3/4" | 4 1/4" | 1/2E Flange | 0.25 | $5.45 | Add to Cart | |
| 318-005 | 2 7/8" | 3 7/8" | 1/2E Flange | 0.25 | $5.60 | Add to Cart | |
| 318-006 | 3" | 3 3/4" | 1/2E Flange | 0.25 | $5.60 | Add to Cart | |
| 318-007 | 3" | 4" | 1/2E Flange | 0.25 | $5.96 | Add to Cart | |
| 318-008 | 3" | 4 1/2" | 1/2E Flange | 0.25 | $5.96 | Add to Cart | |
| 318-009 | 3 1/4" | 4 1/4" | 1/2E Flange | 0.25 | $6.33 | Add to Cart | |
| 318-010 | 3 1/4" | 4 1/2 | 1/2E Flange | 0.25 | $6.69 | Add to Cart | |
| 318-011 | 3 1/2" | 4 1/2" | 1/2E Flange | 0.25 | $7.45 | Add to Cart | |
| 318-012 | 3 3/4" | 4 3/4" | 9/16E Flange | 0.25 | $7.45 | Add to Cart | |
| 318-013 | 2 1/2" | 3 3/4" | 5/8E Flange | 0.25 | $5.07 | Add to Cart | |
| 318-014 | 2 3/4" | 3 3/4" | 5/8E Flange | 0.25 | $5.20 | Add to Cart | |
| 318-015 | 3" | 4" | 5/8E Flange | 0.25 | $6.21 | Add to Cart | |
| 318-016 | 4" | 5" | 5/8E Flange | 0.25 | $8.69 | Add to Cart | |
| 318-017 | 4" | 6" | 5/8E Flange | 0.25 | $9.07 | Add to Cart | |
| 318-018 | 4 1/2" | 5 1/2" | 5/8E Flange | 0.25 | $9.19 | Add to Cart | |
| 318-019 | 5" | 7" | 5/8E Flange | 0.25 | $17.15 | Add to Cart | |
| 318-020 | 4" | 6" | 3/4E Flange | 0.25 | $9.07 | Add to Cart | |
| 318-021 | 5" | 6" | 3/4E Flange | 0.25 | $12.05 | Add to Cart | |
| 318-022 | 6" | 8" | 1E Flange | 0.25 | $23.84 | Add to Cart | |
| 318-023 | 11" | 15" | 1E Flange | 0.25 | $39.51 | Add to Cart | |
| 318-024 | 9" | 14" | 1 1/4E Flange | 0.25 | $33.09 | Add to Cart | |
| 318-025 | 10" | 16" | 1 1/4E Flange | 0.25 | $36.40 | Add to Cart | |
| 318-026 | 10 1/2" | 14 1/2" | 1 1/4E Flange | 0.25 | $38.75 | Add to Cart | |
| 318-027 | 11" | 15" | 1 1/4E Flange | 0.25 | $35.91 | Add to Cart | |
| 318-028 | 12" | 16" | 1 1/4E Flange | 0.25 | $43.25 | Add to Cart | |
| 318-029 | 14" | 18" | 1 1/2E Flange | 0.25 | $67.86 | Add to Cart |

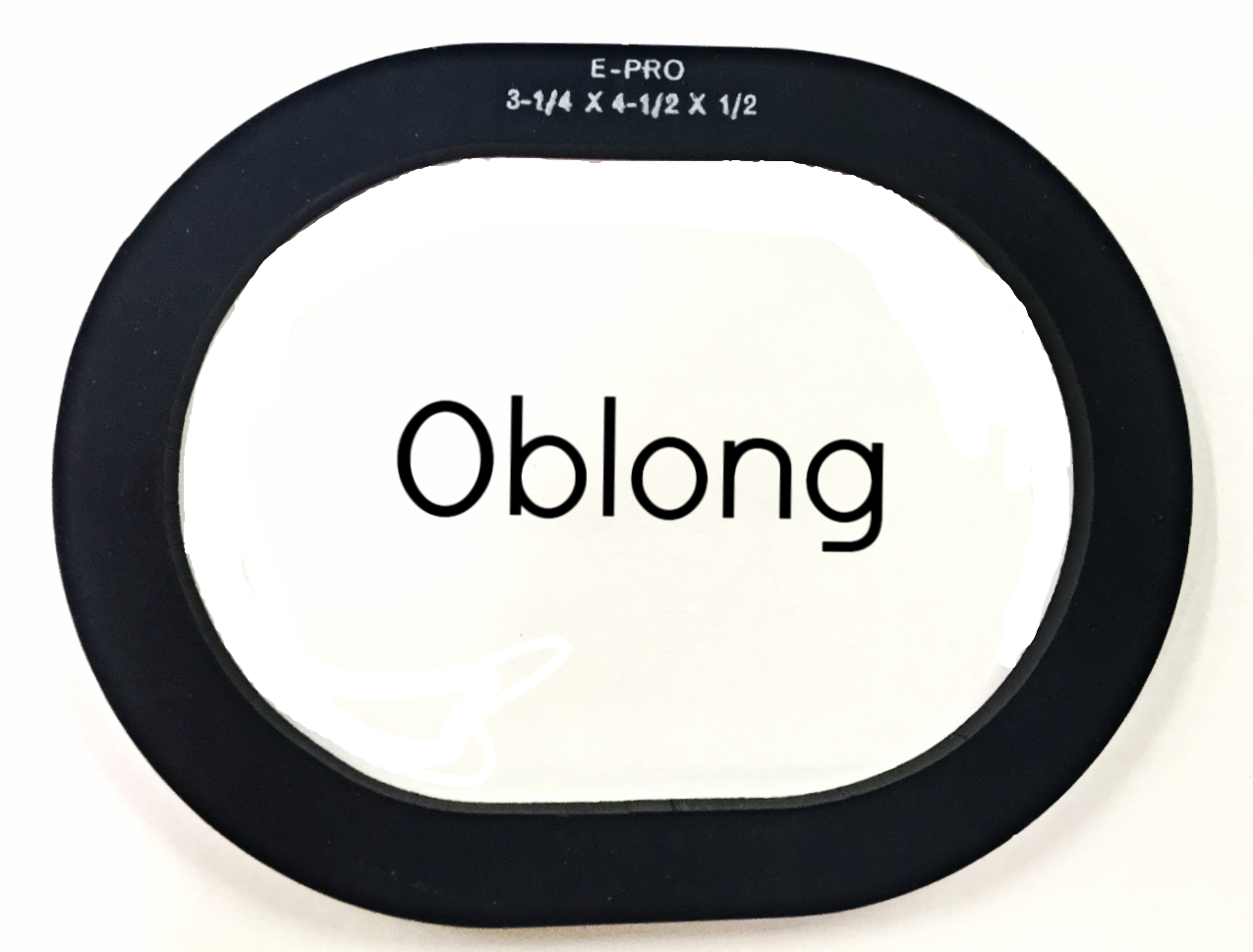

Shaped like a race-track
| Part # | A | B | C | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|
| 318-030 | 2" | 3" | 1/2" OB Flange | 0.25 | $4.96 | Add to Cart | |
| 318-031 | 2 1/4" | 3 1/4" | 1/2" OB Flange | 0.25 | $4.96 | Add to Cart | |
| 318-032 | 2 1/2" | 3 3/4" | 1/2" OB Flange | 0.25 | $5.20 | Add to Cart | |
| 318-033 | 2 3/4" | 3 1/2" | 1/2 OB Flange | 0.25 | $5.20 | Add to Cart | |
| 318-034 | 2 3/4" | 3 3/4" | 1/2" OB Flange | 0.25 | $5.29 | Add to Cart | |
| 318-035 | 2 3/4" | 4 1/2" | 1/2" OB Flange | 0.25 | $6.20 | Add to Cart | |
| 318-036 | 3" | 4" | 1/2" OB Flange | 0.25 | $6.33 | Add to Cart | |
| 318-037 | 3" | 4 1/4" | 1/2" OB Flange | 0.25 | $6.58 | Add to Cart | |
| 318-038 | 3 1/4" | 4 1/2" | 1/2" OB Flange | 0.25 | $6.84 | Add to Cart | |
| 318-055 | 3-1/2" | 4-1/2" | 1/2" OB Flange | 0.25 | $7.04 | Add to Cart | |
| 318-039 | 2 1/2" | 3 1/2" | 9/16" OB Flange | 0.25 | $4.96 | Add to Cart | |
| 318-040 | 3" | 4 1/2" | 9/16" OB Flange | 0.25 | $6.75 | Add to Cart | |
| 318-041 | 3" | 5" | 9/16" OB Flange | 0.25 | $6.75 | Add to Cart | |
| 318-042 | 3 1/4" | 4 1/4" | 9/16" OB Flange | 0.25 | $6.75 | Add to Cart | |
| 318-043 | 3 1/4" | 4 1/2" | 9/16" OB Flange | 0.25 | $6.84 | Add to Cart | |
| 318-044 | 3 1/4" | 5 1/4" | 9/16" OB Flange | 0.25 | $8.20 | Add to Cart | |
| 318-045 | 3 1/2" | 5" | 9/16" OB Flange | 0.25 | $8.94 | Add to Cart | |
| 318-046 | 3" | 4" | 5/8" OB Flange | 0.25 | $6.58 | Add to Cart | |
| 318-047 | 3 1/2" | 4 1/2" | 5/8" OB Flange | 0.25 | $8.82 | Add to Cart | |
| 318-048 | 4" | 5" | 5/8" OB Flange | 0.25 | $8.94 | Add to Cart | |
| 318-049 | 4" | 6" | 5/8" OB Flange | 0.25 | $9.81 | Add to Cart | |
| 318-050 | 4 1/2" | 6 1/2" | 5/8" OB Flange | 0.25 | $11.18 | Add to Cart | |
| 318-051 | 5" | 7" | 3/4" OB Flange | 0.25 | $18.39 | Add to Cart | |
| 318-052 | 10 1/2" | 14 1/2" | 1 1/4" OB Flange | 0.25 | $43.86 | Add to Cart | |
| 318-053 | 11" | 15" | 1 1/4" OB Flange | 0.25 | $44.12 | Add to Cart | |
| 318-054 | 12" | 16" | 1 1/2" OB Flange | 0.25 | $50.34 | Add to Cart |
