Shell and Tube Heat Exchangers & Unfired Boilers | Boilersupplies Thrush Heat Exchangers Thrush Steam to Liquid Double Wall Heat Exchanger
Standard Construction: Cast Iron Head, Steel Shell, Steel Baffles, Steel Tubesheets, 3/4" Double Wall Copper Tubes.
Manufactured in Accordance with ASME Code, Section VIII, Division 1 and National Board Registered.
Boilersupplies.com can supply your company with an aftermarket replacement heat exchanger for an Thrush model that will meet all of the industry specifications such as ASME and TEMA requirements (B, C, & R) as well as our units complying with (Sections I, IV, VIII & Div. 1). Just fill out the easy form below with your name and information from your existing heat exchanger.
Materials
Standard Copper (tubes), carbon steel (shell, tube sheet, baffles) Optional Brass (tubes, tube sheets, baffles), bronze (heads), stainless steel (tubes, tube sheets, heads, shells, baffles), 90/10 Cu-Ni (tubes)
BoilerSupplies.com can get all of the documents necessary to produce the exact same unit that you have now. Other manufacturers we carry are Bell & Gossett, Armstrong, Adamson, Alco, American Standard, A.O. Smith, Cemline, Graham, Old Dominion, Reco, Taco, Patterson Kelley, Standard Exchange & Heat Exchanger USA.
| Description | Standard | Optional | |
|---|---|---|---|
| Head | Cast Iron | Bronze or Stainless Steel | Add to RFQ |
| Shell | Steel | Stainless Steel | Add to RFQ |
| Tube Sheets | Steel | Stainless Steel | Add to RFQ |
| Tubing | Copper Leak Detector | Add to RFQ | |
| Cage Material | Steel | Brass or Stainless Steel | Add to RFQ |
| Part # | Item Name | Equivalent to # | Type |
Diameter, inches |
Heating Surface, ft² |
Inlet | Outlet (NPT) | |
|---|---|---|---|---|---|---|---|---|
| SL2W424-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |

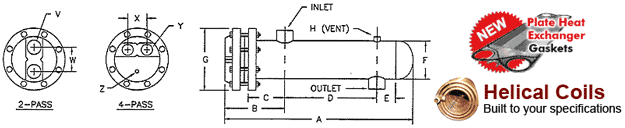

DS424-2A | 2 Pass | 4 | 3.2 | 2" NPT | 1 | Add to RFQ Dimensional Chart |
| SL2W436-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS436-2A | 2 Pass | 4 | 4.8 | 2" NPT | 1 | Add to RFQ Dimensional Chart |
| SL2W448-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS448-2A | 2 Pass | 4 | 6.4 | 2" NPT | 1 | Add to RFQ Dimensional Chart |
| SL2W460-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS460-2A | 2 Pass | 4 | 8 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W472-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS472-2A | 2 Pass | 4 | 9.6 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W484-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS484-2A | 2 Pass | 4 | 11.2 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W496-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS496-2A | 2 Pass | 4 | 12.8 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W4108-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS4108-2A | 2 Pass | 4 | 14.4 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W4120-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS4120-2A | 2 Pass | 4 | 16 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W424-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS424-4A | 4 Pass | 4 | 3.2 | 2" NPT | 1 | Add to RFQ Dimensional Chart |
| SL2W436-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS436-4A | 4 Pass | 4 | 4.8 | 2" NPT | 1 | Add to RFQ Dimensional Chart |
| SL2W448-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS448-4A | 4 Pass | 4 | 6.4 | 2" NPT | 1 | Add to RFQ Dimensional Chart |
| SL2W460-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS460-4A | 4 Pass | 4 | 8 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W472-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS472-4A | 4 Pass | 4 | 9.6 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W484-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS484-4A | 4 Pass | 4 | 11.2 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W496-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS496-4A | 4 Pass | 4 | 12.8 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W4108-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS4108-4A | 4 Pass | 4 | 14.4 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W4120-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS4120-4A | 4 Pass | 4 | 16 | 2" NPT | 1.25 | Add to RFQ Dimensional Chart |
| SL2W624-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS624-2A | 2 Pass | 6 | 8 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W636-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS636-2A | 2 Pass | 6 | 12.8 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W648-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS648-2A | 2 Pass | 6 | 17.6 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W660-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS660-2A | 2 Pass | 6 | 22.4 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W672-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS672-2A | 2 Pass | 6 | 27.1 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W684-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS684-2A | 2 Pass | 6 | 31.9 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W696-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS696-2A | 2 Pass | 6 | 36.7 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W6108-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS6108-2A | 2 Pass | 6 | 41.5 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W6120-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS6120-2A | 2 Pass | 6 | 46.3 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W624-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS624-4A | 4 Pass | 6 | 8 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W636-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS636-4A | 4 Pass | 6 | 12.8 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W648-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS648-4A | 4 Pass | 6 | 17.6 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W660-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS660-4A | 4 Pass | 6 | 22.4 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W672-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS672-4A | 4 Pass | 6 | 27.1 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W684-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS684-4A | 4 Pass | 6 | 31.9 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W696-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS696-4A | 4 Pass | 6 | 36.7 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W6108-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS6108-4A | 4 Pass | 6 | 41.5 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W6120-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS6120-4A | 4 Pass | 6 | 46.3 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W824-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS824-2A | 2 Pass | 8 | 15.2 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W836-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS836-2A | 2 Pass | 8 | 24 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W848-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS848-2A | 2 Pass | 8 | 37.2 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W860-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS860-2A | 2 Pass | 8 | 41.5 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W872-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS872-2A | 2 Pass | 8 | 50.3 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W884-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS884-2A | 2 Pass | 8 | 59.1 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W896-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS896-2A | 2 Pass | 8 | 67.9 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W8108-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS8108-2A | 2 Pass | 8 | 76.6 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W8120-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS8120-2A | 2 Pass | 8 | 85.4 | 6" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W824-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS824-4A | 4 Pass | 8 | 15.2 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W836-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS836-4A | 4 Pass | 8 | 24 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W848-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS848-4A | 4 Pass | 8 | 37.2 | 3" NPT | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W860-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS860-4A | 4 Pass | 8 | 41.5 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W872-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS872-4A | 4 Pass | 8 | 50.3 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W884-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS884-4A | 4 Pass | 8 | 59.1 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W896-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS896-4A | 4 Pass | 8 | 67.9 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W8108-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS8108-4A | 4 Pass | 8 | 76.6 | 4" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W8120-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS8120-4A | 4 Pass | 8 | 85.4 | 6" FLG | 1/2" NPT | Add to RFQ Dimensional Chart |
| SL2W1024-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1024-2A | 2 Pass | 10 | 27.1 | 4" FLG | 1.5 | Add to RFQ Dimensional Chart |
| SL2W1036-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1036-2A | 2 Pass | 10 | 42.3 | 4" FLG | 1.5 | Add to RFQ Dimensional Chart |
| SL2W1048-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1048-2A | 2 Pass | 10 | 57.5 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1060-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1060-2A | 2 Pass | 10 | 72.7 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1072-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1072-2A | 2 Pass | 10 | 87.8 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1084-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1084-2A | 2 Pass | 10 | 103 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1096-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1096-2A | 2 Pass | 10 | 118.2 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W10108-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS10108-2A | 2 Pass | 10 | 133.3 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W10120-2P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS10120-2A | 2 Pass | 10 | 148.5 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1024-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1024-4A | 4 Pass | 10 | 24.8 | 4" FLG | 1.5 | Add to RFQ Dimensional Chart |
| SL2W1036-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1036-4A | 4 Pass | 10 | 39.9 | 4" FLG | 1.5 | Add to RFQ Dimensional Chart |
| SL2W1048-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1048-4A | 4 Pass | 10 | 54.3 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1060-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1060-4A | 4 Pass | 10 | 68.7 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1072-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1072-4A | 4 Pass | 10 | 83 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1084-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1084-4A | 4 Pass | 10 | 97.4 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W1096-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS1096-4A | 4 Pass | 10 | 111.8 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W10108-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS10108-4A | 4 Pass | 10 | 126.1 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| SL2W10120-4P |
Aftermarket Steam to Water Double Wall Tube Heat Exchanger to match |
DS10120-4A | 4 Pass | 10 | 140.5 | 6" FLG | 2 | Add to RFQ Dimensional Chart |
| Type | Value | |
|---|---|---|
| Tube Side Working Pressure | 150 PSI | Add to RFQ |
| Shell Side Working Pressure | 150 PSI | Add to RFQ |
| Hydrostatic Test Pressure Tube Side | 300 PSI | Add to RFQ |
| Hydrostatic Test Pressure Shell Side | 300 PSI | Add to RFQ |
| Maximum Temperature | 375°F | Add to RFQ |
© 2023 Boiler Supplies. All Rights Reserved. |
Back to Products
