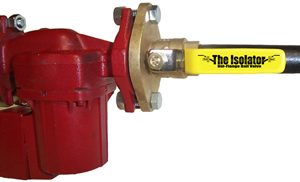

Jomar "The Isolator" brass body and flange provide strength and versatility for any application where a pipe and flange meet. The valve features a solid, hard chrome plated brass ball with reinforced Teflon® seats and a blowout proof steam sealed with Teflon® and an adjustable packing gland. Vinyl coated stamped steel handle. Ideal for use with circulating pumps. The solid brass flange when seated with a rubber gasket eliminates the problem of galvanic action commonly incurred when the use of an iron flange is connected to copper tubing.
| Part # | Nominal Size | A | B | C | D | E | F | G | H | I | J | Cv | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40402 | 1/2" IPS | 9/16" | 2" | 1-7/8" | 3-1/2" | 1/4" | 1/2" | 1" | 3/4" | 4-1/8" | 3/8" | 11.47 | Add to RFQ |
| 40403 | 3/4" IPS | 3/4" | 2-1/4" | 2" | 4" | 1/4" | 1/2" | 3/4" | 1" | 4-1/8" | 3/8" | 24.01 | Add to RFQ |
| 40404 | 1" IPS | 15/16" | 2-1/2" | 2-1/2" | 4-1/2" | 1/4" | 1/2" | 5/8" | 1-1/4" | 4-1/8" | 3/8" | 49.30 | Add to RFQ |
| 40405 | 1-1/4" IPS | 1-1/4" | 2-3/4" | 2-3/4" | 4-1/2" | 1/4" | 1/2" | 1/2" | 1-5/8" | 4-1/8" | 3/8" | 114.03 | Add to RFQ |
| 40406 | 1-1/2" IPS | 1-1/2" | 3-7/8" | 3-3/8" | 5-1/2" | 1/4" | 1/2" | 3/8" | 2" | 4-1/8" | 3/8" | 161.30 | Add to RFQ |
| 50402 | 1/2" CxC | 9/16" | 2" | 1-3/4" | 3-1/2" | 1/4" | 1/2" | 7/8" | 3/4" | 4-1/8" | 3/8" | 11.47 | Add to RFQ |
| 50403 | 3/4" CxC | 3/4" | 2-1/4" | 2" | 4" | 1/4" | 1/2" | 3/4" | 1" | 4-1/8" | 3/8" | 27.01 | Add to RFQ |
| 50404 | 1" CxC | 15/16" | 2-1/2" | 2-1/2" | 4-1/2" | 1/4" | 1/2" | 5/8" | 1-1/4" | 4-1/8" | 3/8" | 49.30 | Add to RFQ |
| 50405 | 1-1/4" CxC | 1-1/4" | 2-3/4" | 2-3/4" | 4-1/2" | 1/4" | 1/2" | 1/2" | 1-5/8" | 4-1/8" | 3/8" | 114.03 | Add to RFQ |
| 50406 | 1-1/2" CxC | 1-1/2" | 3-7/8" | 3-3/8" | 5-1/2" | 1/4" | 1/2" | 3/8" | 2" | 4-1/8" | 3/8" | 161.30 | Add to RFQ |
