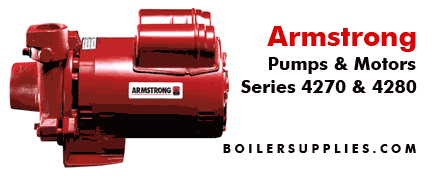

Armstrong Motor Mounted Centrifugal Pumps In Stock

Armstrong Motor Mounted Pumps for Boiler Feed, Circulating, and Hydronic Systems Armstrong motor mounted pumps are ideal for cooling towers, HVAC, and general purpose applications.

With the Armstrong 4270, there is no need to disconnect the pipes while servicing the pump due to the radially-split volute. The motor, with bracket and impeller attached, can be easily withdrawn from the volute after moving the volute capscrews. These pumps are available in 1-1/4", 1-1/2", and 2" sizes.

Item Name: Armstrong Series 4270 Materials of Construction

Manufacturer:

Armstrong

Lead Time: In Stock. Available for immediate shipment.

Shipping Time: 1-3 Business Day

Specification
Part #	Volute	Volute Cap Screws	Impeller	Mechanical Seal: (Type 21) Insert	Mechanical Seal: (Type 21) Seat	Mechanical Seal: (Type 21) Bellows	Mechanical Seal: (Type 21) L-Cup	Mechanical Seal: (Type 21) Retainer	Mechanical Seal: (Type 21) Spring	Motor/Bracket	Faceplate
Part #	Volute	Volute Cap Screws	Impeller	Mechanical Seal: (Type 21) Insert	Mechanical Seal: (Type 21) Seat	Mechanical Seal: (Type 21) Bellows	Mechanical Seal: (Type 21) L-Cup	Mechanical Seal: (Type 21) Retainer	Mechanical Seal: (Type 21) Spring	Motor/Bracket	Faceplate
4270BFP	Cast Iron	Steel	ULTEM	Carbon	Ceramic	Viton	Viton	Stainless Steel	Stainless Steel	Aluminum	Stainless Steel	Add to Cart Add to RFQ
4270ABP	Bronze	Steel	ULTEM	Carbon	Ceramic	Viton	Viton	Stainless Steel	Stainless Steel	Aluminum	Stainless Steel	Add to Cart Add to RFQ

Files:

Item Name: Armstrong Series 4280 Materials of Construction

Manufacturer:

Armstrong

Lead Time: In Stock. Available for immediate shipment.

Shipping Time: 1-3 Business Day

Specification
Part #	Volute	Volute Cap Screws	Impeller	Mechanical Seal: (Type 21) Insert	Mechanical Seal: (Type 21) Seat	Mechanical Seal: (Type 21) Bellows	Mechanical Seal: (Type 21) L-Cup	Mechanical Seal: (Type 21) Retainer	Mechanical Seal: (Type 21) Spring	Motor/Bracket	Faceplate
Part #	Volute	Volute Cap Screws	Impeller	Mechanical Seal: (Type 21) Insert	Mechanical Seal: (Type 21) Seat	Mechanical Seal: (Type 21) Bellows	Mechanical Seal: (Type 21) L-Cup	Mechanical Seal: (Type 21) Retainer	Mechanical Seal: (Type 21) Spring	Motor/Bracket	Faceplate
4280BFP	Cast Iron	Steel	Bronze	Carbon	Ni-Resist	EPDM	EPDM	Stainless	Stainless Steel	Bronze	Cast Iron	Add to Cart Add to RFQ
4280AIP	Cast Iron	Steel	Cast Iron	Carbon	Ni-Resist	EPDM	EPDM	Stainless	Stainless Steel	Stainless Steel	Cast Iron	Add to Cart Add to RFQ
4280ABP	Bronze	Steel	Bronze	Carbon	Ceramic	EPDM	EPDM	Stainless	Stainless Steel	Bronze	Bronze	Add to Cart Add to RFQ

Files:

4280 performance curves.pdf
